View larger

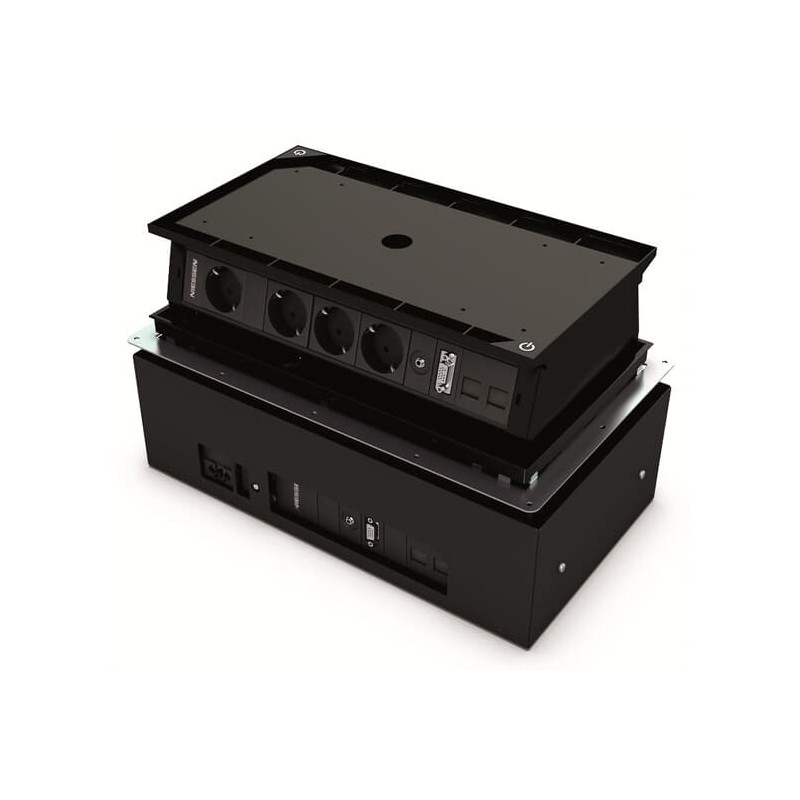

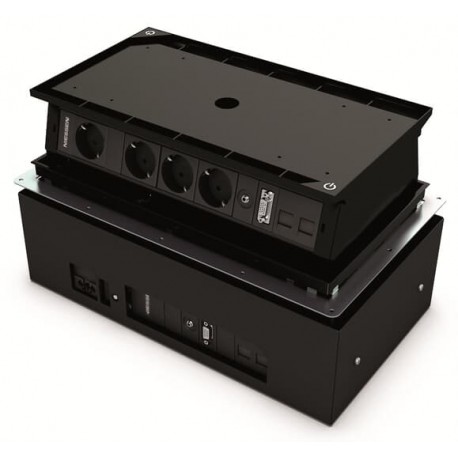

2CLA255000T1901 T2550 NG NIESSEN Since Motorized 2caras Latig.CR NG
2CLA255000T1901
T2550 NG
NIESSEN
Since Motorized 2caras Latig.CR NG
2-sided motorized station Latig.CR NG
Frame for desk cut with lid ready to cover.Mechanised lifting of electrification body via highly sensitive membrane button.Electrification kit on both sides of the box consisting of 2 strips made of the following elements:1) 5 socket outlets fully wired with 2,5 mm² halogen free cable + 1 x 2 cat6 RJ45 connectors.2) 4 socket outlets fully wired with 2,5 mm² halogen free cable + 1 x cat6 RJ45 connector + 1 x VGA 15-pin female/female + 1 x 3,5 mm stereo minijack female/female.All connections are fully wired inside to their corresponding inputs.Power input through integrated male rapid connector built-in casing.
Flush-mounting series
* Brand new product in its original packaging covered by the warranties and certifications provided by NIESSEN
Best sellers
▲More info
▲- Extended Product Type:
- T2550 NG
- Product ID:
- 2CLA255000T1901
- EAN:
- 8427238114767
- Catalog Description:
- Motorized workstation 2 faces anthracite Built-in Black - CEM
- Long Description:
- Frame for desk cut with lid ready to cover.
Mechanised lifting of electrification body via highly sensitive membrane button.
Electrification kit on both sides of the box consisting of 2 strips made of the following elements:
1) 5 socket outlets fully wired with 2,5 mm² halogen free cable + 1 x 2 cat6 RJ45 connectors.
2) 4 socket outlets fully wired with 2,5 mm² halogen free cable + 1 x cat6 RJ45 connector + 1 x VGA 15-pin female/female + 1 x 3,5 mm stereo minijack female/female.
All connections are fully wired inside to their corresponding inputs.
Power input through integrated male rapid connector built-in casing.
Installation
- Instructions and Manuals:
- No document needed
Technical
- Data Sheet, Technical Information:
- No document needed
- Number of Connections:
- Number of audio connections: 1
Number of CAT 5 connections: 0
Number of CAT 5E connections: 0
Number of CAT 6 connections: 4
Number of HDMI-connections: 0
Number of USB connections: 0
- Number of Empty Module Positions:
- 0
- Design Range:
- CEM
- Shape:
- Rectangular
- Material:
- Aluminium
- Model Number:
- Built-in
- Color:
- Black
- Number of Batteries:
- 0
Environmental
- Ambient Air Temperature:
- Operation -5 ... +35 °C
Storage -5 ... +50 °C
- Conflict Minerals Reporting Template (CMRT):
- 9AKK108468A3363
Dimensions
- Product Net Width:
- 402mm
- Product Net Height:
- 224mm
- Product Net Depth / Length:
- 267.4mm
- Product Net Weight:
- 10.36kg
- Built-In Depth (t2):
- 120 mm
Certificates and Declarations
- Declaration of Conformity - CE:
- No declaration needed
Classifications
- ETIM 8:
- EC002759 - Desk connecting unit
- ETIM 9:
- EC002759 - Desk connecting unit
- WEEE Category:
- 5. Small Equipment (No External Dimension More Than 50 cm)
- WEEE B2C / B2B:
- Business To Consumer
- CN8:
- 85369001
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF Catalogue Sky Niessen EN.pdf | 15 Mbytes |
|
| PDF Catalogue Zenit EN.pdf | 19 Mbytes |
|
| 2CLA255000T1901 T2550 NG EN_2CLA255000T1901.pdf | 100 Kbytes |
|
