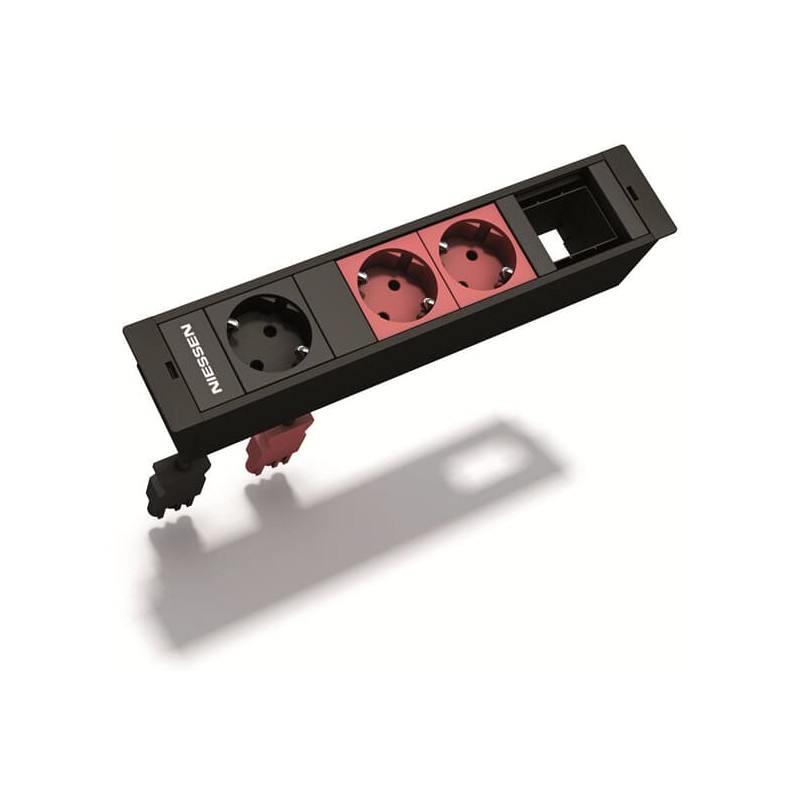

2CLA252400T1801 T2524 AN NIESSEN Puesto 4 elem 1BEAN+2BERJ+1Huec LatCR AN
2CLA252400T1801
T2524 AN
NIESSEN
Puesto 4 elem 1BEAN+2BERJ+1Huec LatCR AN
1 Socket outlet fully wired with 2,5mm2 halogen free cable.2 Red socket outlets fully wired with 2,5mm2 halogen free cable.1 empty space for customization with VDI connectors (cover plate and connectors not included).Power input through 2 cables with: black male rapid connector / red male rapid connector for red socket outlets.Mounted on aluminium profile.
Flush-mounting series
Brand new product in its original packaging covered by the warranties and certifications provided by NIESSEN
Best sellers
▲More info
▲- Extended Product Type:
- T2524 AN
- Product ID:
- 2CLA252400T1801
- EAN:
- 8427238114705
- Catalog Description:
- Workstation 1XSOAN+2XSORJ+1Xspace AN Built-in Black - CEM
- Long Description:
- 1 Socket outlet fully wired with 2,5mm2 halogen free cable.
2 Red socket outlets fully wired with 2,5mm2 halogen free cable.
1 empty space for customization with VDI connectors (cover plate and connectors not included).
Power input through 2 cables with: black male rapid connector / red male rapid connector for red socket outlets.
Mounted on aluminium profile.
Installation
- Instructions and Manuals:
- No document needed
Technical
- Data Sheet, Technical Information:
- No document needed
- Number of Empty Module Positions:
- 0
- Design Range:
- CEM
- Shape:
- Rectangular
- Material:
- Aluminium
- Model Number:
- Built-in
- Color:
- Black
- Number of Batteries:
- 0
- Application Function:
- Data Communication / Multimedia
Environmental
- Ambient Air Temperature:
- Operation -5 ... +35 °C
Storage -5 ... +50 °C
- Conflict Minerals Reporting Template (CMRT):
- 9AKK108468A3363
Dimensions
- Product Net Width:
- 0.145m
- Product Net Height:
- 0.09m
- Product Net Depth / Length:
- 0.32m
- Product Net Weight:
- 0.717kg
- Built-In Depth (t2):
- 62 mm
Certificates and Declarations
- Declaration of Conformity - CE:
- No declaration needed
Classifications
- ETIM 8:
- EC002759 - Desk connecting unit
- ETIM 9:
- EC002759 - Desk connecting unit
- WEEE Category:
- 5. Small Equipment (No External Dimension More Than 50 cm)
- WEEE B2C / B2B:
- Business To Consumer
- CN8:
- 85369001
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE KNX & SOLUTION FOR BUILDINGS EN.pdf | 88 Mbytes |
|
| PDF CATALOGUE NIESSEN EN .pdf | 36 Mbytes |
|
| 2CLA252400T1801 T2524 AN EN_2CLA252400T1801.pdf | 99 Kbytes |
|
