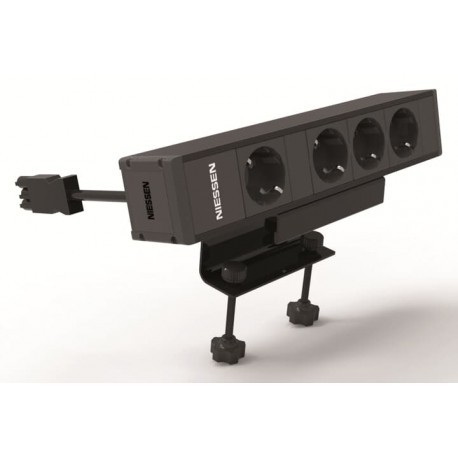

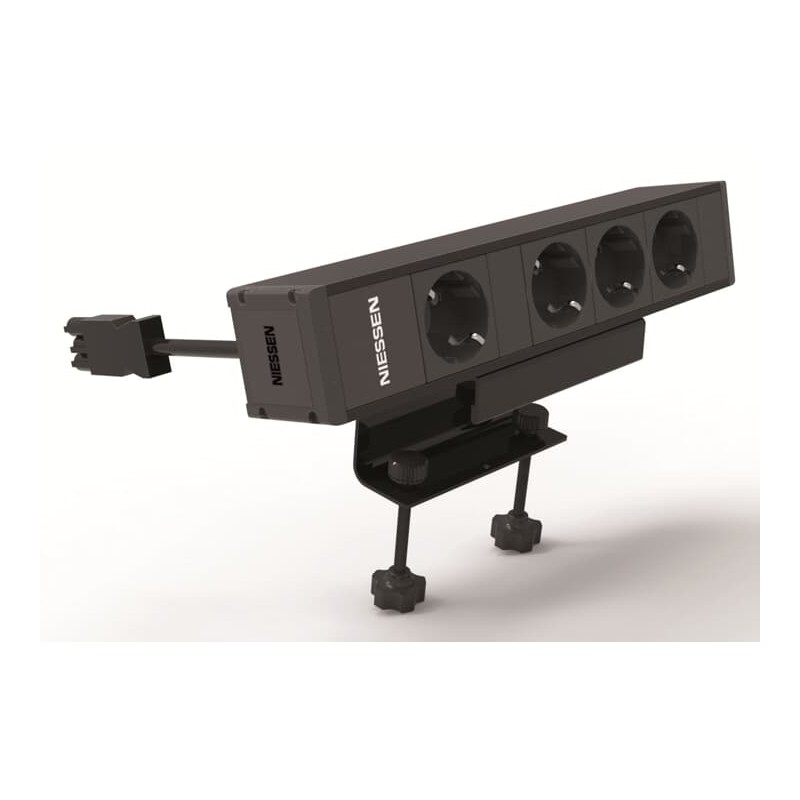

2CLA243400T1801 T2434 AN NIESSEN Conx.Superfic.Table 4BEAN Lat.CR W
2CLA243400T1801
T2434 AN
NIESSEN
Conx.Superfic.Table 4BEAN Lat.CR W
4 Socket outlets fully wired with 2,5mm2 halogen free cable.Power input through cable with male rapid connector on end.Mounted on aluminium profile.Fixation system through desk clamp.
Flush-mounting series
* Brand new product in its original packaging covered by the warranties and certifications provided by NIESSEN
More info
▲- Extended Product Type:
- T2434 AN
- Product ID:
- 2CLA243400T1801
- EAN:
- 8427238114651
- Catalog Description:
- Surface works. w/support 4XSO AN Surface mounting Black - CEM
- Long Description:
- 4 Socket outlets fully wired with 2,5mm2 halogen free cable.
Power input through cable with male rapid connector on end.
Mounted on aluminium profile.
Fixation system through desk clamp.
Installation
- Instructions and Manuals:
- No document needed
Technical
- Data Sheet, Technical Information:
- No document needed
- Number of Connections:
- Number of audio connections: 0
Number of CAT 5 connections: 0
Number of CAT 5E connections: 0
Number of CAT 6 connections: 0
Number of HDMI-connections: 0
Number of USB connections: 0
- Number of Empty Module Positions:
- 0
- Design Range:
- CEM
- Shape:
- Rectangular
- Material:
- Aluminium
- Model Number:
- Surface mounting
- Color:
- Black
- Number of Batteries:
- 0
Environmental
- Ambient Air Temperature:
- Operation -5 ... +35 °C
Storage -5 ... +50 °C
- Conflict Minerals Reporting Template (CMRT):
- 9AKK108468A3363
Dimensions
- Product Net Width:
- 286mm
- Product Net Height:
- 134mm
- Product Net Depth / Length:
- 54mm
- Product Net Weight:
- 0.921kg
Certificates and Declarations
- Declaration of Conformity - CE:
- No declaration needed
Classifications
- ETIM 8:
- EC002759 - Desk connecting unit
- ETIM 9:
- EC002759 - Desk connecting unit
- WEEE Category:
- 5. Small Equipment (No External Dimension More Than 50 cm)
- WEEE B2C / B2B:
- Business To Consumer
- CN8:
- 85369001
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| 2CLA243400T1801 T2434 AN EN_2CLA243400T1801.pdf | 83 Kbytes |
 |
