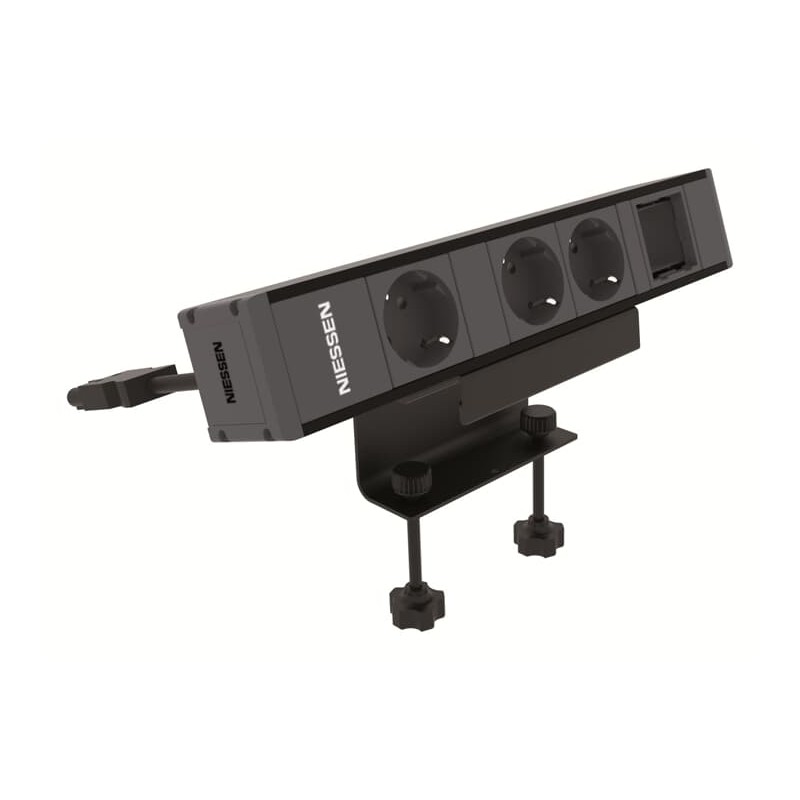

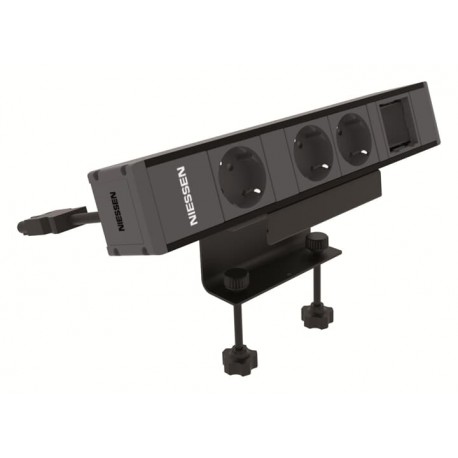

2CLA243300T1101 T2433 BL NIESSEN Conx.Superfic.Mesa 3BEBL+1Huec Lat.CR BL
2CLA243300T1101
T2433 BL
NIESSEN
Conx.Superfic.Mesa 3BEBL+1Huec Lat.CR BL
Conx.Surface.Table 3BEBL+1Hollow Lat.CR BL
3 Socket outlets fully wired with 2,5mm2 halogen free cable.1 empty space for customization with VDI connectors (cover plate and connectors not included).Power input through cable with male rapid connector on end.Mounted on aluminium profile.Fixation system through desk clamp.
Flush-mounting series
Brand new product in its original packaging covered by the warranties and certifications provided by NIESSEN
Best sellers
▲More info
▲- Extended Product Type:
- T2433 BL
- Product ID:
- 2CLA243300T1101
- EAN:
- 8427238114620
- Catalog Description:
- Surface works. w/support 3XSO+1XspaceBL Surface mounting White - CEM
- Long Description:
- 3 Socket outlets fully wired with 2,5mm2 halogen free cable.
1 empty space for customization with VDI connectors (cover plate and connectors not included).
Power input through cable with male rapid connector on end.
Mounted on aluminium profile.
Fixation system through desk clamp.
Installation
- Instructions and Manuals:
- No document needed
Technical
- Data Sheet, Technical Information:
- No document needed
- Number of Empty Module Positions:
- 0
- Design Range:
- CEM
- Shape:
- Rectangular
- Material:
- Aluminium
- Model Number:
- Surface mounting
- Color:
- White
- Number of Batteries:
- 0
Environmental
- Ambient Air Temperature:
- Operation -5 ... +35 °C
Storage -5 ... +50 °C
- Conflict Minerals Reporting Template (CMRT):
- 9AKK108468A3363
Dimensions
- Product Net Width:
- 297.3mm
- Product Net Height:
- 134mm
- Product Net Depth / Length:
- 54mm
- Product Net Weight:
- 0.921kg
Certificates and Declarations
- Declaration of Conformity - CE:
- No declaration needed
Classifications
- ETIM 8:
- EC002759 - Desk connecting unit
- ETIM 9:
- EC002759 - Desk connecting unit
- WEEE Category:
- 5. Small Equipment (No External Dimension More Than 50 cm)
- WEEE B2C / B2B:
- Business To Consumer
- CN8:
- 85369001
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE KNX & SOLUTION FOR BUILDINGS EN.pdf | 88 Mbytes |
|
| PDF CATALOGUE NIESSEN EN .pdf | 36 Mbytes |
|
| 2CLA243300T1101 T2433 BL EN_2CLA243300T1101.pdf | 97 Kbytes |
|
