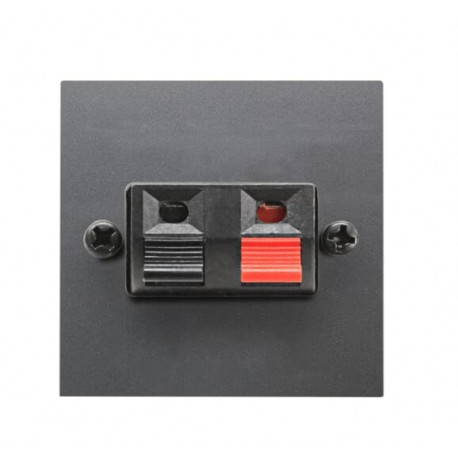

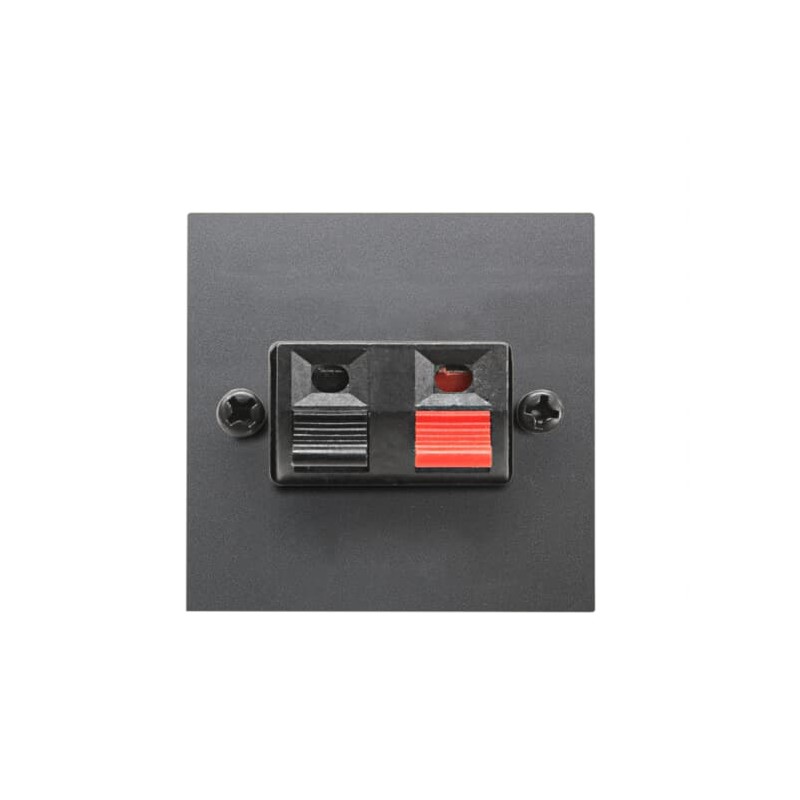

2CLA225710N1801 N2257.1 AN NIESSEN Takes speaker terminal W
2CLA225710N1801
N2257.1 AN
NIESSEN
Takes speaker terminal W
Speaker jack per AN terminal
Color: White.Front: 2x spring speaker terminals (Red/Black).Rear: 2x screw terminals.Size: 2 modules.
Domestic switching devices > Insert/cover for communication technology
Flush-mounting series
* Brand new product in its original packaging covered by the warranties and certifications provided by NIESSEN
More info
▲- Extended Product Type:
- N2257.1 AN
- Product ID:
- 2CLA225710N1801
- EAN:
- 8427238143026
- Catalog Description:
- Speaker outlet Loudspeaker connection 1 gang Anthracite - Zenit
- Long Description:
- Color: White.
Front: 2x spring speaker terminals (Red/Black).
Rear: 2x screw terminals.
Size: 2 modules.
Installation
- Instructions and Manuals:
- No document needed
Technical
- Data Sheet, Technical Information:
- 9AKK10103A5108
- Application:
- Loudspeaker connection
- Design Range:
- Zenit
- Mounting Type:
- Flush Mounted
- Type of Fastening:
- Engage (Snap)
- Type of Indicator:
- Without indication field
- Outlet Orientation:
- Straight
- Surface Finishing:
- Decor
Matt
- Material:
- Plastic
Thermoplastic
- Color:
- Anthracite
Environmental
- Ambient Air Temperature:
- Operation -5 ... +35 °C
Storage -5 ... +50 °C
- Degree of Protection:
- IP20
- RoHS Status:
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- RoHS Information:
- 2CLC225710N1801
- REACH Declaration:
- 9AKK108467A7464
- Conflict Minerals Reporting Template (CMRT):
- 9AKK108468A3363
Dimensions
- Product Net Width:
- 44mm
- Product Net Height:
- 44mm
- Product Net Weight:
- 0.008kg
Ordering
- Replaced Product ID (OLD):
- 2CLA225710N1802
2CLA225710N1803
Certificates and Declarations
- Declaration of Conformity - CE:
- 9AKK106930A1758
Classifications
- ETIM 8:
- EC000018 - Insert/cover for communication technology
- ETIM 9:
- EC000018 - Insert/cover for communication technology
- WEEE Category:
- Product Not in WEEE Scope
- CN8:
- 85369010
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| 2CLA225710N1801 N2257.1 AN EN_2CLA225710N1801.pdf | 84 Kbytes |
 |
