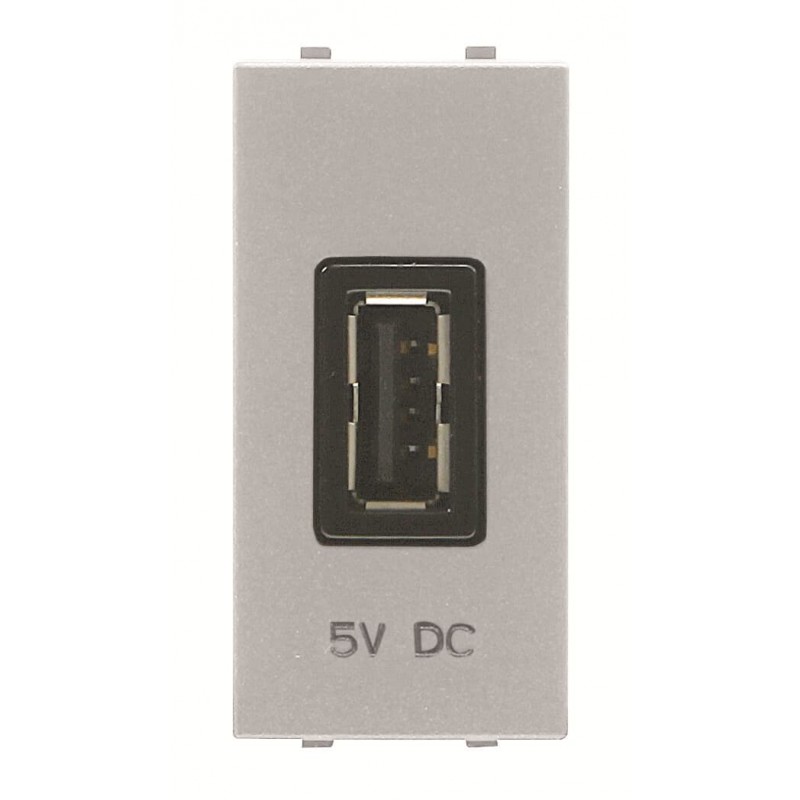

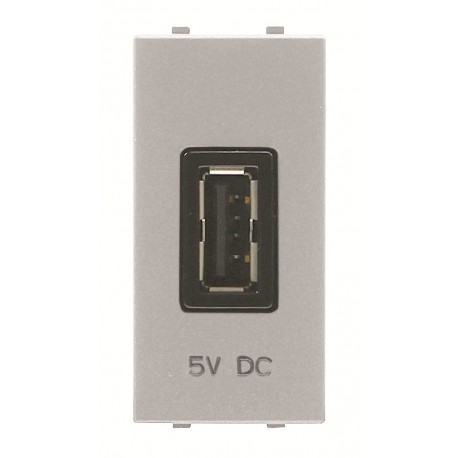

2CLA218520N1301 N2185.2 PL NIESSEN Outlet USB charger 1M 2A/5V PL
2CLA218520N1301
N2185.2 PL
NIESSEN
Outlet USB charger 1M 2A/5V PL
USB charger socket 1M 2A/5V PL
N2185.2 PL - USB charger 2.000mA, 1-gang - 1M - Silver
Domestic switching devices > USB power supply
Flush-mounting series
Brand new product in its original packaging covered by the warranties and certifications provided by NIESSEN
Best sellers
▲More info
▲| Additional Information | |
|---|---|
| Ambient Air Temperature | Operation -5 ... +35 °C |
| Storage -5 ... +50 °C | |
| CN8 | 85043180 |
| Color | Silver |
| Country or Territory of Origin | Spain |
| Customs Tariff Number | 85043180 |
| Data Sheet, Technical Information | 9AKK10103A5108 |
| Declaration of Conformity - CE | 9AKK106930A1760 |
| EAN | 8427238163222 |
| ETIM 5 | EC000018 - Insert/cover for communication technology |
| ETIM 6 | EC002949 - USB power supply |
| ETIM 7 | EC002949 - USB power supply |
| ETIM 8 | EC002949 - USB power supply |
| Frequency (f) | 50...60 Hz |
| Instructions and Manuals | 2CLX228509N1001 |
| Invoice Description | N2185.2 PL - USB charger 2.000mA, 1-gang - 1M - Silver |
| Minimum Order Quantity | 1 piece |
| Model Number | Breakout cable |
| Mounting Type | Module frame |
| Number of Batteries | 0 |
| Number of Outputs | 1 |
| Operational Voltage | 100...240 V |
| Output Current Maximum (Iout) | 2000 mA |
| Output Voltage (Uout) | 5 V |
| Package Level 1 Depth / Length | 0.073 m |
| Package Level 1 EAN | 8427238163222 |
| Package Level 1 Gross Weight | 0.045 kg |
| Package Level 1 Height | 0.033 m |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 0.073 m |
| Product Main Type | Zenit |
| Product Name | USB charger 2.000mA, 1-gang - 1M - Silver |
| Product Net Height | 44 mm |
| Product Net Weight | 0.045 kg |
| Product Net Width | 22 mm |
| REACH Declaration | 9AKK108467A7464 |
| Replacement Product ID (NEW) | 2CLA218520N1301 |
| RoHS Date | 20221021 |
| RoHS Declaration | 2CLC218520N1302 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Selling Unit of Measure | piece |
| WEEE B2C / B2B | Business To Consumer |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE KNX & SOLUTION FOR BUILDINGS EN.pdf | 88 Mbytes |
|
| PDF CATALOGUE NIESSEN EN .pdf | 36 Mbytes |
|
| 2CLA218520N1301 N2185.2 PL EN_2CLA218520N1301.pdf | 121 Kbytes |
|
