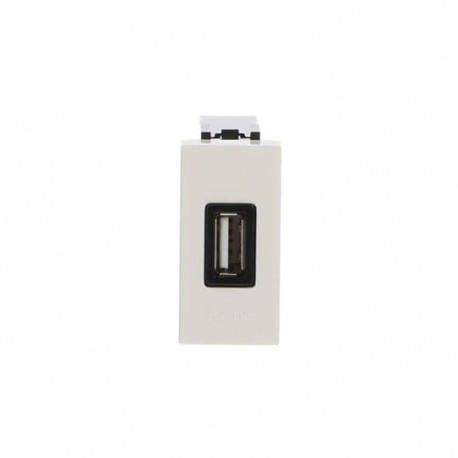

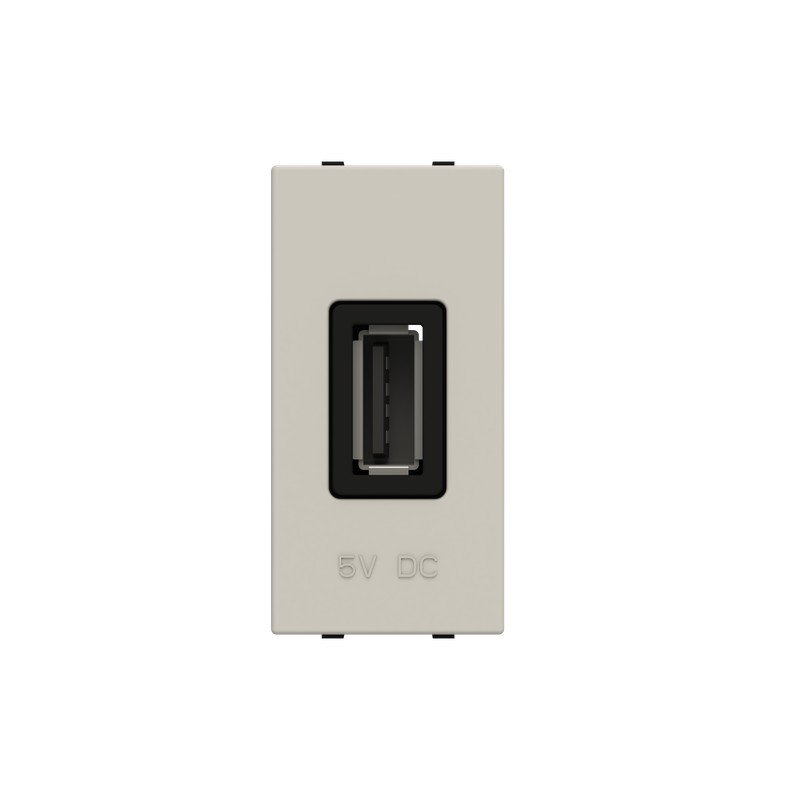

2CLA218520N1101 N2185.2 BL NIESSEN Outlet USB charger 1M 2A/5V BL
2CLA218520N1101
N2185.2 BL
NIESSEN
Outlet USB charger 1M 2A/5V BL
USB charger socket 1M 2A/5V BL
Color: White.Input voltage: 100 - 230 Vac ±10%; 50/60 Hz.Input current: 0,20 A (with maximum load).Output voltage: 5 Vdc ±5%.Output current: 2.000 mA.Power consuption in stand-by: <= 0,[email protected] efficiency: >= 79%.Operating temparature: 0ºC to 45ºC.Size: 1 module.
Domestic switching devices > USB power supply
Flush-mounting series
* Brand new product in its original packaging covered by the warranties and certifications provided by NIESSEN
More info
▲- Extended Product Type:
- N2185.2 BL
- Product ID:
- 2CLA218520N1101
- EAN:
- 8427238163185
- Catalog Description:
- USB charger 2.000mA, 1-gang - 1M - White Breakout cable USB A White - Zenit
- Long Description:
- Color: White.
Input voltage: 100 - 230 Vac ±10%; 50/60 Hz.
Input current: 0,20 A (with maximum load).
Output voltage: 5 Vdc ±5%.
Output current: 2.000 mA.
Power consuption in stand-by: <= 0,01W@230Vac.
Energy efficiency: >= 79%.
Operating temparature: 0ºC to 45ºC.
Size: 1 module.
Installation
- Instructions and Manuals:
- 2CLX228509N1001
Technical
- Data Sheet, Technical Information:
- 9AKK10103A5108
- Operational Voltage:
- 100...240 V
- Output Voltage (Uout):
- 5 V
- Output Current Maximum (Iout):
- 2000 mA
- Frequency (f):
- 50...60 Hz
- Rated Frequency (f):
- 50...60 Hz
- Number of Outputs:
- 1
- Design Range:
- Zenit
- Connection Type:
- Push-In
- Mounting Type:
- Module frame
- Surface Finishing:
- Untreated
Glossy
- Material:
- Plastic
Thermoplastic
- Model Number:
- Breakout cable
- RAL Number:
- RAL 9010 - Pure White
- Color:
- White
- Number of Batteries:
- 0
Environmental
- Ambient Air Temperature:
- Operation -5 ... +35 °C
Storage -5 ... +50 °C
- Degree of Protection:
- IP20
- RoHS Status:
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- RoHS Information:
- 2CLC218520N1101
- REACH Declaration:
- 9AKK108467A7464
- Conflict Minerals Reporting Template (CMRT):
- 9AKK108468A3363
Dimensions
- Product Net Width:
- 22mm
- Product Net Height:
- 44mm
- Product Net Weight:
- 0.045kg
Ordering
- Replacement Product ID (NEW):
- 2CLA218540N1101
- Replaced Product ID (OLD):
- 2CLA218520N1102
2CLA218520N1103
Certificates and Declarations
- Declaration of Conformity - CE:
- 9AKK106930A1760
Classifications
- ETIM 8:
- EC002949 - USB power supply
- ETIM 9:
- EC002949 - USB power supply
- WEEE Category:
- 5. Small Equipment (No External Dimension More Than 50 cm)
- WEEE B2C / B2B:
- Business To Consumer
- CN8:
- 85043180
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| 2CLA218520N1101 N2185.2 BL EN_2CLA218520N1101.pdf | 106 Kbytes |
 |
