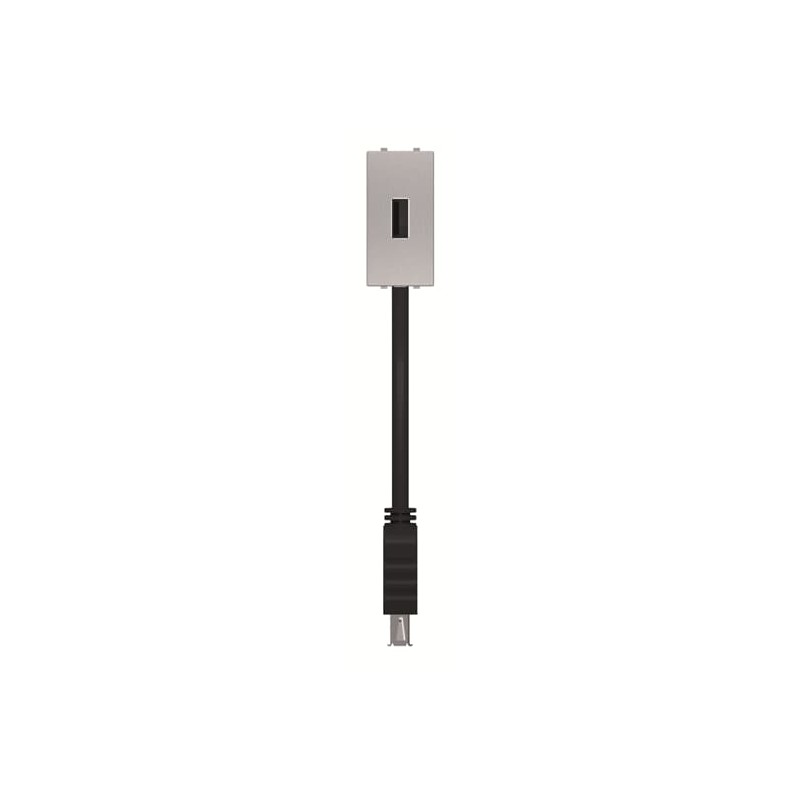

2CLA215591N1301 N2155.91 PL NIESSEN Female-female USB socket with PL hose
2CLA215591N1301
N2155.91 PL
NIESSEN
Female-female USB socket with PL hose
Color: Silver.Front: 1x USB 2.0 connector (Type A connector).Rear: 1x USB 2.0 connector (Type A connector) with 20 cm cable extension.Size: 1 module.
Flush-mounting series
* Brand new product in its original packaging covered by the warranties and certifications provided by NIESSEN
More info
▲- Extended Product Type:
- N2155.91 PL
- Product ID:
- 2CLA215591N1301
- EAN:
- 8427238203980
- Catalog Description:
- USB outlet USB 1 gang Silver - Zenit
- Long Description:
- Color: Silver.
Front: 1x USB 2.0 connector (Type A connector).
Rear: 1x USB 2.0 connector (Type A connector) with 20 cm cable extension.
Size: 1 module.
Installation
- Instructions and Manuals:
- 2CLX215509N1001
Technical
- Data Sheet, Technical Information:
- 9AKK10103A5108
- Application:
- USB
- Design Range:
- Zenit
- Mounting Type:
- Flush mounted (plaster)
- Type of Fastening:
- Engage (Snap)
- Type of Indicator:
- Without indication field
- Outlet Orientation:
- Straight
- Surface Finishing:
- Decor
Matt
- Material:
- Plastic
Thermoplastic
- Color:
- Silver
- Number of Batteries:
- 0
Environmental
- Ambient Air Temperature:
- Operation -5 ... +35 °C
Storage -5 ... +50 °C
- Degree of Protection:
- IP20
- RoHS Status:
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- RoHS Information:
- 2CLC215591N1301
- REACH Declaration:
- 9AKK108467A7464
- Conflict Minerals Reporting Template (CMRT):
- 9AKK108468A3363
Dimensions
- Product Net Width:
- 22mm
- Product Net Height:
- 44mm
- Product Net Weight:
- 24g
Ordering
- Replaced Product ID (OLD):
- 2CLA215591N1302
2CLA215591N1303
Certificates and Declarations
- Declaration of Conformity - CE:
- 9AKK106930A1758
Classifications
- ETIM 8:
- EC000018 - Insert/cover for communication technology
- ETIM 9:
- EC000018 - Insert/cover for communication technology
- WEEE Category:
- 5. Small Equipment (No External Dimension More Than 50 cm)
- WEEE B2C / B2B:
- Business To Consumer
- CN8:
- 85369010
- UNSPSC:
- 39121406
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF Catalogue Sky Niessen EN.pdf | 15 Mbytes |
|
| PDF Catalogue Zenit EN.pdf | 19 Mbytes |
|
| 2CLA215591N1301 N2155.91 PL EN_2CLA215591N1301.pdf | 73 Kbytes |
|
