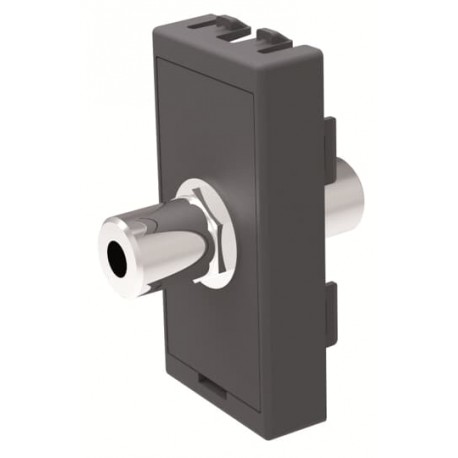

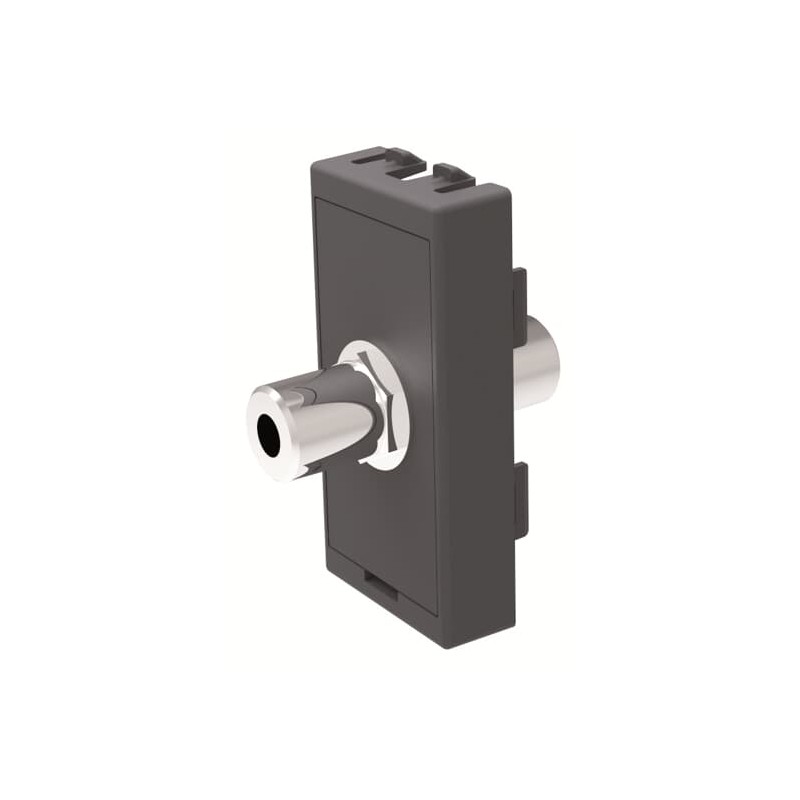

2CLA205530T1101 T2055.3 BL NIESSEN Connector 1 x F1M BL
2CLA205530T1101
T2055.3 BL
NIESSEN
5
Connector 1 x F1M BL
1 F connector female/female.Color: White
Flush-mounting series
* Brand new product in its original packaging covered by the warranties and certifications provided by NIESSEN
More info
▲- Extended Product Type:
- T2055.3 BL
- Product ID:
- 2CLA205530T1101
- EAN:
- 8427238115146
- Catalog Description:
- F connector 1 module BL 1gang White
- Long Description:
- 1 F connector female/female.
Color: White
Installation
- Instructions and Manuals:
- No document needed
Technical
- Data Sheet, Technical Information:
- No document needed
- Design Range:
- CEM
- Mounting Type:
- Module frame
- Type of Fastening:
- Engage (Snap)
- Type of Indicator:
- Without indication field
- Outlet Orientation:
- Straight
- Surface Finishing:
- Untreated
Matt
- Material:
- Thermoplastic
Plastic
- RAL Number:
- RAL 9010 - Pure White
- Color:
- White
- Number of Batteries:
- 0
- Application Function:
- Data Communication / Multimedia
Environmental
- Ambient Air Temperature:
- Operation -5 ... +35 °C
Storage -5 ... +50 °C
- Degree of Protection:
- IP20
- RoHS Status:
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- RoHS Information:
- 2CLC205530T1101
- REACH Declaration:
- 9AKK108467A7464
- Conflict Minerals Reporting Template (CMRT):
- 9AKK108468A3363
Dimensions
- Product Net Width:
- 0.076m
- Product Net Height:
- 0.056m
- Product Net Depth / Length:
- 0.072m
- Product Net Weight:
- 0.015kg
Certificates and Declarations
- Declaration of Conformity - CE:
- 9AKK106930A1761
Classifications
- ETIM 8:
- EC000018 - Insert/cover for communication technology
- ETIM 9:
- EC000018 - Insert/cover for communication technology
- WEEE Category:
- 5. Small Equipment (No External Dimension More Than 50 cm)
- WEEE B2C / B2B:
- Business To Consumer
- CN8:
- 85369010
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| 2CLA205530T1101 T2055.3 BL EN_2CLA205530T1101.pdf | 78 Kbytes |
 |
