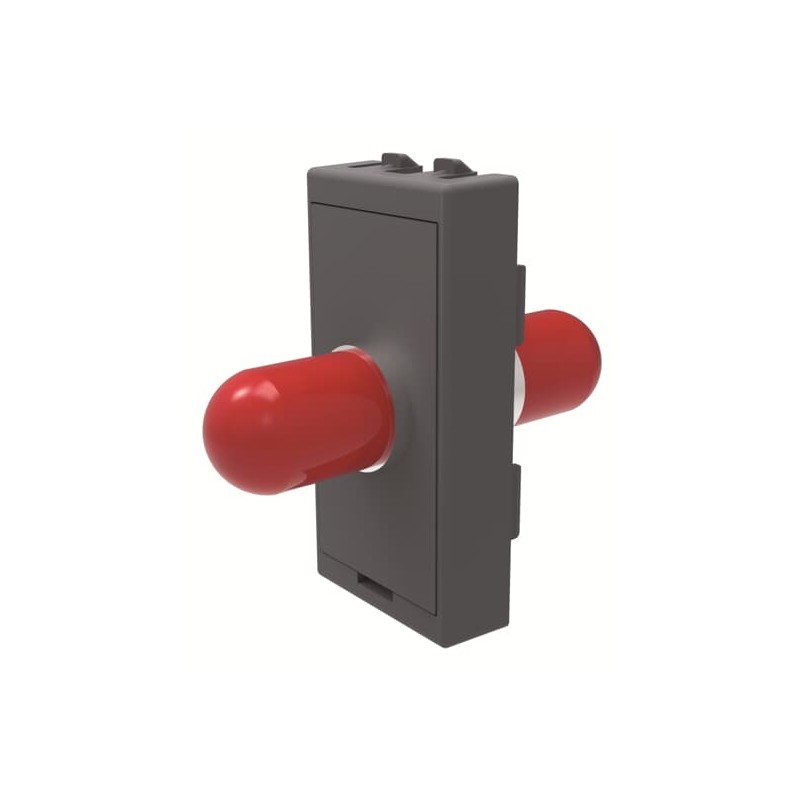

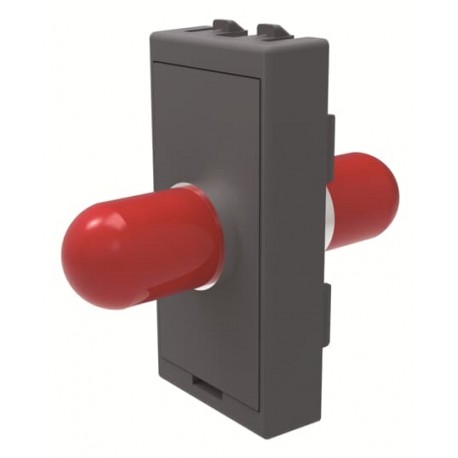

2CLA204710T1101 T2047.1 BL NIESSEN Conector fibra optica BL
2CLA204710T1101
T2047.1 BL
NIESSEN
5
Conector fibra optica BL
BL Fiber Optic Connector
Cover + connector 45mm x 22,5 mm 1 SCP fiberColor: White
Flush-mounting series
Brand new product in its original packaging covered by the warranties and certifications provided by NIESSEN
Best sellers
▲More info
▲- Extended Product Type:
- T2047.1 BL
- Product ID:
- 2CLA204710T1101
- EAN:
- 8427238115085
- Catalog Description:
- Fiber optic connector 1M BL Fiber optic 1gang White
- Long Description:
- Cover + connector 45mm x 22,5 mm 1 SCP fiber
Color: White
Installation
- Instructions and Manuals:
- No document needed
Technical
- Data Sheet, Technical Information:
- No document needed
- Application:
- Fiber optic
- Design Range:
- CEM
- Mounting Type:
- Module frame
- Type of Fastening:
- Engage (Snap)
- Type of Indicator:
- Without indication field
- Outlet Orientation:
- Straight
- Surface Finishing:
- Untreated
Matt
- Material:
- Thermoplastic
Plastic
- RAL Number:
- RAL 9010 - Pure White
- Color:
- White
- Number of Batteries:
- 0
- Application Function:
- Data Communication / Multimedia
Environmental
- Ambient Air Temperature:
- Operation -5 ... +35 °C
Storage -5 ... +50 °C
- Degree of Protection:
- IP20
- Conflict Minerals Reporting Template (CMRT):
- 9AKK108468A3363
Dimensions
- Product Net Width:
- 0.076m
- Product Net Height:
- 0.056m
- Product Net Depth / Length:
- 0.072m
- Product Net Weight:
- 0.019kg
Certificates and Declarations
- Declaration of Conformity - CE:
- 9AKK106930A1758
Classifications
- ETIM 8:
- EC000018 - Insert/cover for communication technology
- ETIM 9:
- EC000018 - Insert/cover for communication technology
- WEEE Category:
- 5. Small Equipment (No External Dimension More Than 50 cm)
- WEEE B2C / B2B:
- Business To Consumer
- CN8:
- 85367000
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE KNX & SOLUTION FOR BUILDINGS EN.pdf | 88 Mbytes |
|
| PDF CATALOGUE NIESSEN EN .pdf | 36 Mbytes |
|
| 2CLA204710T1101 T2047.1 BL EN_2CLA204710T1101.pdf | 92 Kbytes |
|
