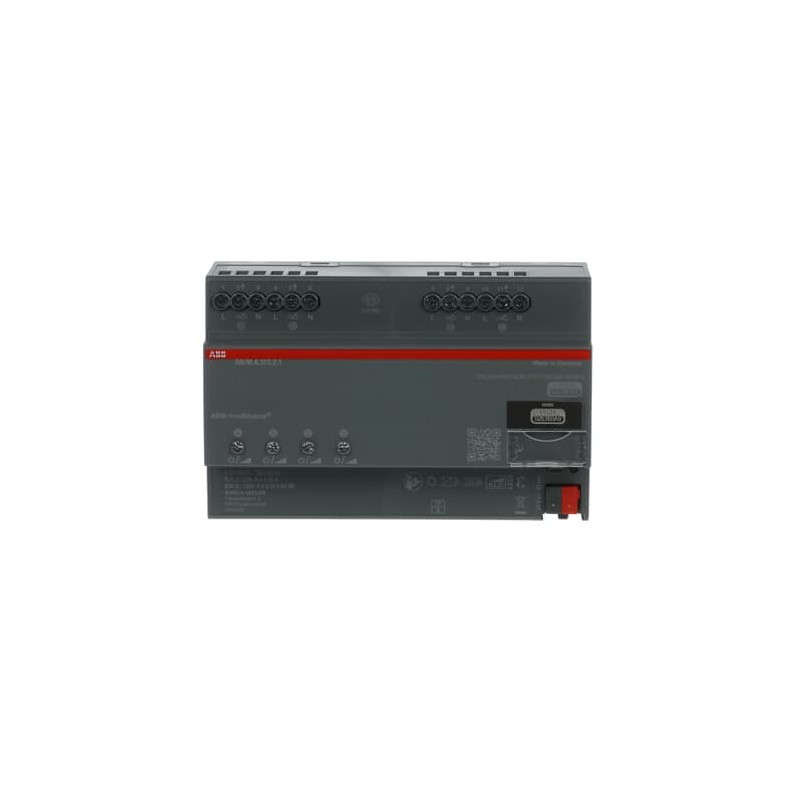

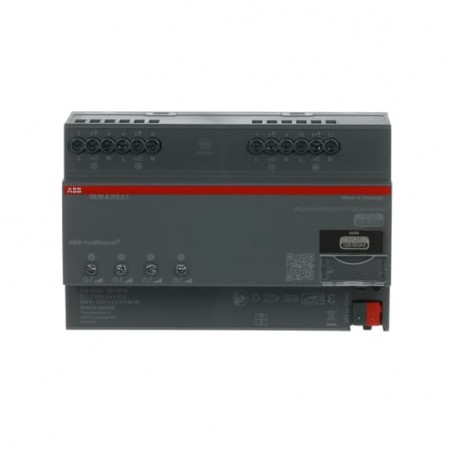

2CKA006220A0838 DA/M.4.315.2.1 NIESSEN Actuador regulador, 4x315W, DIN
2CKA006220A0838
DA/M.4.315.2.1
NIESSEN
Actuador regulador, 4x315W, DIN
Regulator actuator, 4x315W, DIN
Dim actuator 4x315W, MDRC
Installation bus systems > Dimming actuator for bus system
Home Automation
Brand new product in its original packaging covered by the warranties and certifications provided by NIESSEN
Best sellers
▲More info
▲| Installation | |
|---|---|
| Instructions and Manuals | 2CKA000273B9698 |
| Mounting Type | DIN-Rail |
| Environmental | |
| Ambient Air Temperature | Operation -5 ... +45 °C |
| Degree of Protection | IP20 |
| Technical | |
| Number of Outputs | 4 |
| Compatible Bus Systems | free@home (TP) |
| Product Range | free@home |
| Transmission Standard | Twisted Pair Wiring |
| Terminal Type | Bus Connection |
| Electrical | |
| Rated Voltage (Ur) | 110 ... 230 V |
| Rated Operational Voltage | 110...230 V |
| Auxiliary Voltage AC/DC | 110 V AC/DC |
| 230 V AC/DC | |
| Rated Frequency (f) | 50 / 60 Hz |
| Load Type | Universal and LED Retrofit |
| LEDi | |
| Incandescent Lamp | |
| Halogen Lamp, High Voltage | |
| Halogen Lamp, Low Voltage | |
| Power Loss | 2.3 W |
| Dimensions | |
| Width in Number of Modular Spacings | 8.0 |
| Product Net Width | 140 mm |
| Product Net Height | 90 mm |
| Product Net Depth / Length | 63.5 mm |
| Product Net Weight | 434.5 g |
| Built-In Depth (t2) | 58 mm |
| Dimension Diagram | 2CDC072027F0017 |
| Engineering | |
| EPLAN Data | 9AAC189338_EPLAN |
| Ordering | |
| Replaced Product ID (OLD) | 2CKA006220A0395 |
| Material Compliance | |
| RoHS Declaration | 2CKA200000E8943 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| REACH Declaration | 2CKA309999E9999 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20250901 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 2CKA100000E4869 |
| Declaration of Conformity - UK-PSTI | 2CKA410000E0233 |
| EU Data Act Compliance Declaration | 9AKK108471A4355 |
| Cyber Security Software Support Period | 2 year |
| EU Data Act Applicability and Compliance | Applicable - Compliant |
| External Classifications and Standards | |
| ETIM 9 | EC001094 - Dimming actuator for bus system |
| ETIM 10 | EC001094 - Dimming actuator for bus system |
| eClass | V11.0 : 27143123 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE KNX & SOLUTION FOR BUILDINGS EN.pdf | 88 Mbytes |
|
| PDF CATALOGUE NIESSEN EN .pdf | 36 Mbytes |
|
| 2CKA006220A0838 DA/M.4.315.2.1 EN_2CKA006220A0838.pdf | 117 Kbytes |
|
