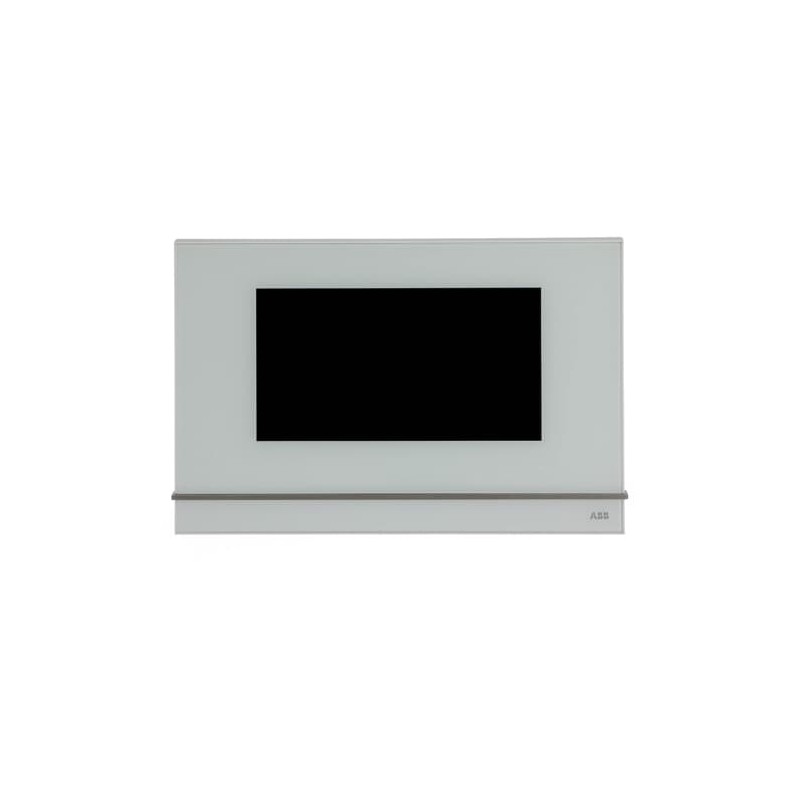

2CKA006136A0205 6136/07-811-500 NIESSEN Smart Touch 7", crystal white
2CKA006136A0205
6136/07-811-500
NIESSEN
Smart Touch 7", crystal white
Smart Touch 7, white glass
SmartTouch 7 -811
Installation bus systems > Signalling and operation panel for bus system
KNX-EIB
Brand new product in its original packaging covered by the warranties and certifications provided by NIESSEN
Best sellers
▲More info
▲| Installation | |
|---|---|
| Instructions and Manuals | 2CKA000073B8951 |
| Mounting Type | Flush Mounted |
| Surface Mounted | |
| Mounting Position | horizontal |
| Mounting Height | Optimum 150 m |
| Environmental | |
| Ambient Air Temperature | Operation 0 ... +45 °C |
| Degree of Protection | IP20 |
| Technical | |
| Data Sheet, Technical Information | 2CKA001373B9264 |
| Compatible Bus Systems | KNX (TP) |
| Product Range | KNX |
| Display Type | Colour |
| Number of Batteries | 0 |
| Electrical | |
| Rated Voltage (Ur) | 20 ... 32 V |
| Auxiliary Voltage AC/DC | 24 V DC |
| Design | |
| Housing Material | Plastic |
| Material | Glass |
| RAL Number | Similar to RAL 9016 |
| Color | white |
| Dimensions | |
| Product Net Width | 246 mm |
| Product Net Height | 165 mm |
| Product Net Depth / Length | 25 mm |
| Product Net Weight | 717 g |
| Built-In Depth (t2) | 15 mm |
| Screen Size | 7 in |
| Engineering | |
| Building Information Modeling – BIM | 2CKA110002E3643 |
| Ordering | |
| Replacement Product ID (NEW) | 2TMA310051W0001 |
| E-Number (Finland) | 2814535 |
| Material Compliance | |
| RoHS Declaration | 2CKA200000E4649 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| REACH Declaration | 2CKA309999E9999 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 2CKA100000E0597 |
| Declaration of Conformity - UKCA | 2CKA400000E0302 |
| EU Data Act Applicability and Compliance | Not Applicable |
| External Classifications and Standards | |
| ETIM 9 | EC000783 - Signalling and operation panel for bus system |
| ETIM 10 | EC000783 - Signalling and operation panel for bus system |
| eClass | V11.0 : 27143101 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE KNX & SOLUTION FOR BUILDINGS EN.pdf | 88 Mbytes |
|
| PDF CATALOGUE NIESSEN EN .pdf | 36 Mbytes |
|
| 2CKA006136A0205 6136/07-811-500 EN_2CKA006136A0205.pdf | 126 Kbytes |
|
