View larger

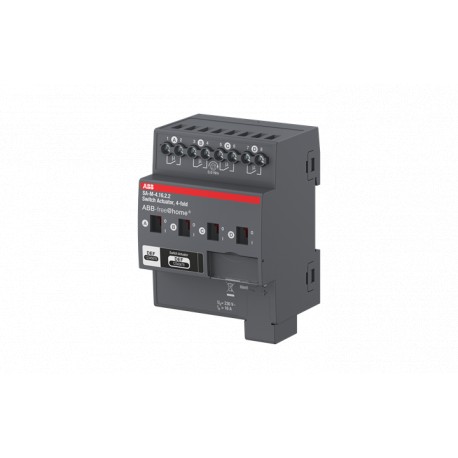

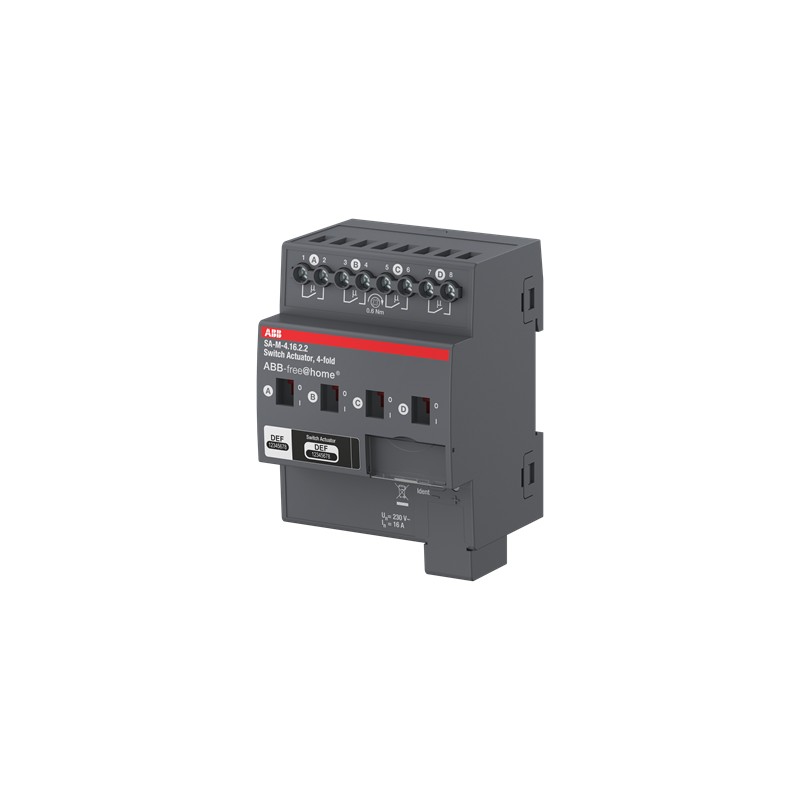

2CDG510025R0011 SA-M-4.16.2.2 NIESSEN DIN 4-channel int. actuator, 16A
2CDG510025R0011
SA-M-4.16.2.2
NIESSEN
DIN 4-channel int. actuator, 16A
For switching 4 independent 127 V~/230 V~ loads. Each contact has a manual operation function independent of auxiliary voltage for additionally displaying the contact setting. The bus can be connected via enclosed terminal block.
Home Automation
* Brand new product in its original packaging covered by the warranties and certifications provided by NIESSEN
Best sellers
▲More info
▲- Extended Product Type:
- SA-M-4.16.2.2
- Product ID:
- 2CDG510025R0011
- EAN:
- 4053546111309
- Catalog Description:
- SA-M-4.16.2.2 Switch Actuator, 4-fold 16 A, MDRC
- Long Description:
- For switching 4 independent 127 V~/230 V~ loads. Each contact has a manual operation function independent of auxiliary voltage for additionally displaying the contact setting. The bus can be connected via enclosed terminal block.
Installation
- Instructions and Manuals:
- 2CDG941253P0001
- Instructions and Manuals (Part 2):
- 2CDG941254P0001
Technical
- Data Sheet, Technical Information:
- 2CKA001373B5406
- Data Sheet, Technical Information (Part 2):
- 2CKA001473B5406
- Voltage Range:
- 230 V AC
- Output Voltage (Uout):
- 230 V AC
- Rated Current (In):
- 16 A
- Maximum Switching Current:
- 16 A
- Maximum Switching Power:
- 2500 W
- Power Loss:
- 4 W
- Contact Position Indication:
- ON / OFF
- Number of Outputs:
- 4
- Number of LEDs:
- 1
- Maximum Number of Switching Outputs:
- 4
- Compatible Bus Systems:
- free@home (TP)
- Mounting Type:
- DIN-Rail
- Manual Operation:
- Yes
- Suitable for C-Load:
- No
- Color:
- grey
- Number of Batteries:
- 0
Environmental
- Degree of Protection:
- IP20
- RoHS Status:
- Following EU Directive 2011/65/EU
- RoHS Information:
- 2CKA200000E7785
- REACH Declaration:
- 9AKK108468A9644
- Conflict Minerals Reporting Template (CMRT):
- 9AKK108468A3363
Dimensions
- Width in Number of Modular Spacings:
- 4
- Product Net Width:
- 70mm
- Product Net Height:
- 90mm
- Product Net Depth / Length:
- 63.5mm
- Product Net Weight:
- 0.215kg
- Built-In Depth (t2):
- 63.5 mm
- Dimension Diagram:
- 2CDC072033F0015
Certificates and Declarations
- Declaration of Conformity - CE:
- 9AKK108467A6033
2CKA100000E4802
Classifications
- ETIM 8:
- EC001097 - Switch actuator for bus system
- ETIM 9:
- EC001097 - Switch actuator for bus system
- WEEE Category:
- 5. Small Equipment (No External Dimension More Than 50 cm)
- WEEE B2C / B2B:
- Business To Consumer
- CN8:
- 8537 10 91
- UNSPSC:
- 31251516
- eClass:
- V11.0 : 27143125
- IDEA Granular Category Code (IGCC):
- 3268 >> Switch actuator
