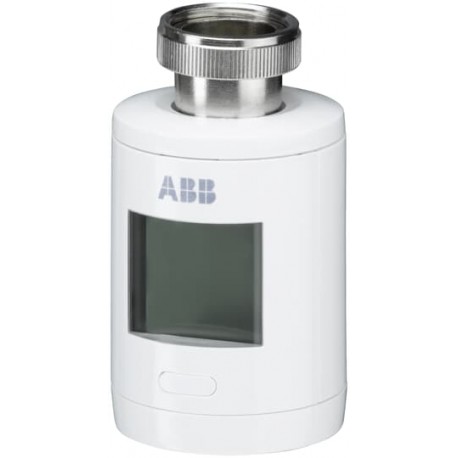

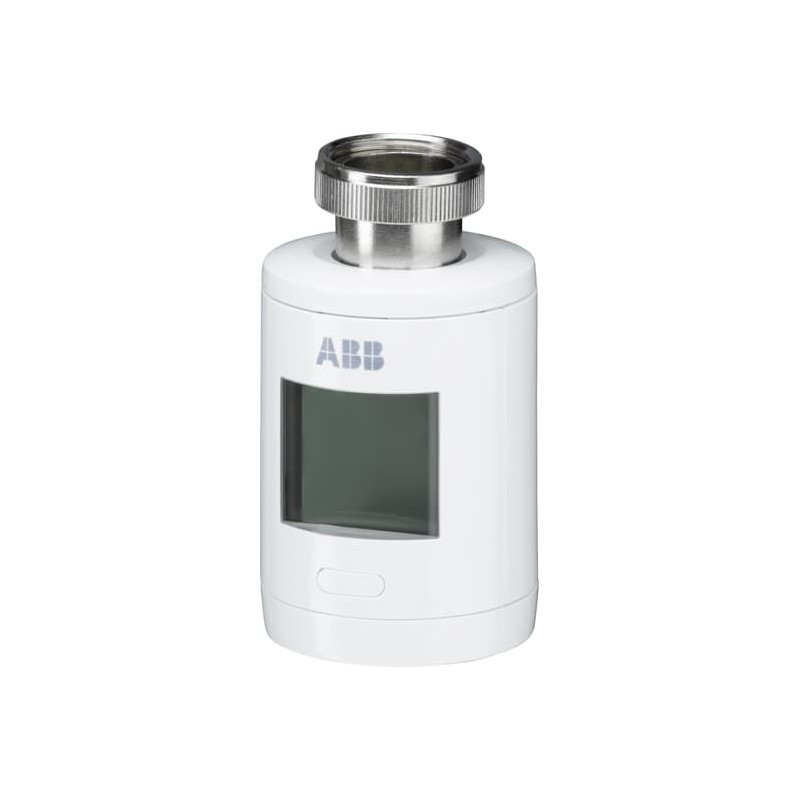

2CDG120051R0011 SE/K 1.868.1 NIESSEN Valve actuator with enOcean
2CDG120051R0011
SE/K 1.868.1
NIESSEN
Valve actuator with enOcean
The Valve Drive EnOcean is used for efficient room temperature control. It communicates via the wireless, bidirectional EnOcean protocol. The Valve Drive has a large display for showing the current room temperature setpoint and a setting dial for manual setpoint adjustment.Via the ABB i-bus KNX/EnOcean Gateway (EG/A 32.2.1) the Valve Drive EnOcean can easily be included in every KNX system
Installation bus systems > Actuating drive for bus system
Home > NIESSEN
* Brand new product in its original packaging covered by the warranties and certifications provided by NIESSEN
More info
▲- Extended Product Type:
- SE/K1.868.1
- Product ID:
- 2CDG120051R0011
- EAN:
- 4016779996990
- Catalog Description:
- SE/K1.868.1 Valve Drive EnOcean
- Long Description:
- The Valve Drive EnOcean is used for efficient room temperature control. It communicates via the wireless, bidirectional EnOcean protocol.
The Valve Drive has a large display for showing the current room temperature setpoint and a setting dial for manual setpoint adjustment.
Via the ABB i-bus KNX/EnOcean Gateway (EG/A 32.2.1) the Valve Drive EnOcean can easily be included in every KNX system
Installation
- Instructions and Manuals:
- 2CDC502093D0201
Technical
- Data Sheet, Technical Information:
- 2CDC502093D0201
- Rated Voltage (Ur):
- 3
- Power Loss:
- 0 W
- Compatible Bus Systems:
- EnOcean
- Product Range:
- KNX
- Mounting Type:
- Built-in
- Manual Operation:
- No
- Color:
- white
- Battery Chemical Composition:
- Lithium
- Battery Type:
- Portable
- Battery Weight:
- 30 g
- Number of Batteries:
- 2
- Screen Size:
- 1.8 in
Environmental
- Degree of Protection:
- IP30
- RoHS Status:
- Following EU Directive 2011/65/EU
- RoHS Information:
- 2CDK502095D2701
Dimensions
- Product Net Width:
- 57mm
- Product Net Height:
- 100mm
- Product Net Depth / Length:
- 57mm
- Product Net Weight:
- 0.25kg
Certificates and Declarations
- Declaration of Conformity - CE:
- 2CDK502095D2701
Classifications
- ETIM 8:
- EC000792 - Actuating drive for bus system
- ETIM 9:
- EC000792 - Actuating drive for bus system
- WEEE Category:
- 5. Small Equipment (No External Dimension More Than 50 cm)
- WEEE B2C / B2B:
- Business To Consumer
- CN8:
- 8536 90 95
- eClass:
- V11.0 : 27143135
- Object Classification Code:
- A
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF Catalogue Sky Niessen EN.pdf | 15 Mbytes |
|
| PDF Catalogue Zenit EN.pdf | 19 Mbytes |
|
| 2CDG120051R0011 SE/K 1.868.1 EN_2CDG120051R0011.pdf | 95 Kbytes |
|
