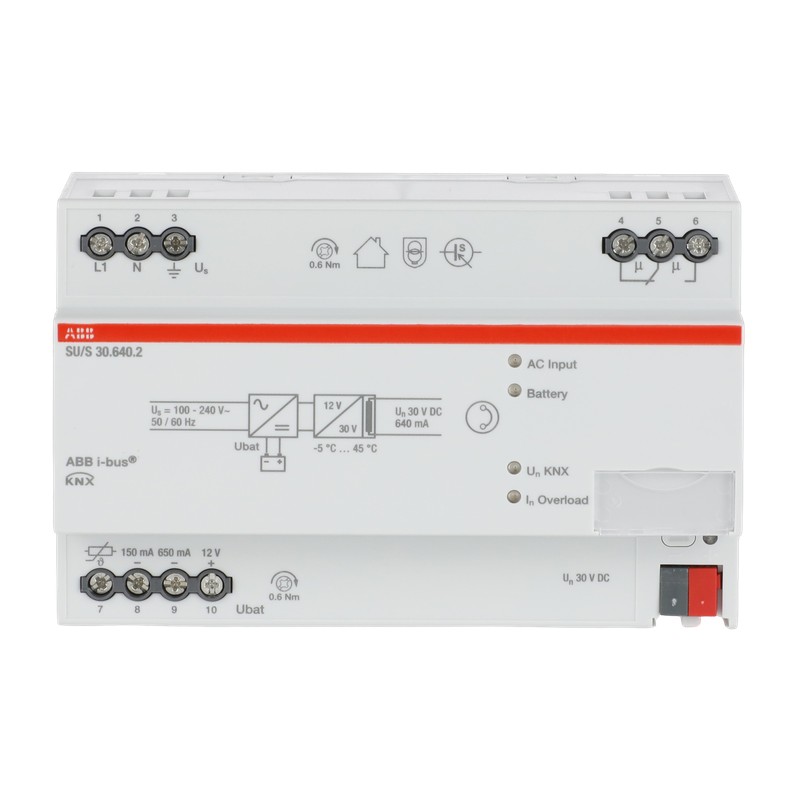

2CDG110275R0011 SU/S 30.640.2 NIESSEN Fuente de Alimentación Bus Ininterrumpid
2CDG110275R0011
SU/S 30.640.2
NIESSEN
Fuente de Alimentación Bus Ininterrumpid
Uninterruptible Bus Power Supply
SU/S30.640.2 Uninterruptible KNX Power Supply, 640 mA, MDRC
Installation bus systems > Power supply for bus system
KNX-EIB
Brand new product in its original packaging covered by the warranties and certifications provided by NIESSEN
Best sellers
▲More info
▲| Installation | |
|---|---|
| Instructions and Manuals | 9AKK107992A4835 |
| Wiring Diagram | 9AKK107992A4484 |
| Mounting Type | DIN-Rail |
| Environmental | |
| Degree of Protection | IP20 |
| Technical | |
| Data Sheet, Technical Information | 9AKK108466A4477 |
| Number of LEDs | 1 |
| Number of Integrated Chokes | 1 |
| Number of Supplied Lines | 1 |
| Compatible Bus Systems | KNX (TP) |
| Product Range | KNX |
| Number of Batteries | 0 |
| Electrical | |
| Buffer Voltage | Yes |
| Output Current Maximum (Iout) | 0.64 A |
| Power Loss | 10 W |
| Design | |
| Color | light grey |
| Dimensions | |
| Width in Number of Modular Spacings | 8.0 |
| Product Net Width | 144 mm |
| Product Net Height | 90 mm |
| Product Net Depth / Length | 64.5 mm |
| Product Net Weight | 0.498 kg |
| Dimension Diagram | 2CDC072027F0017 |
| Engineering | |
| EPLAN Data | 9AAC189144_EPLAN |
| Ordering | |
| Replaced Product ID (OLD) | GHQ6310049R0111 |
| E-Number (Finland) | 2818966 |
| E-Number (Norway) | 4544071 |
| E-Number (Sweden) | 1740133 |
| E-Number (Switzerland) | 405800295 |
| Material Compliance | |
| RoHS Declaration | 9AKK108468A1351 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| REACH Declaration | 9AKK108471A7754 |
| REACH Information | True - contains substances > 0.1 mass percentage |
| REACH Date | 20251203 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 9AKK108468A1351 |
| Declaration of Conformity - UKCA | 9AKK108468A1483 |
| EU Data Act Applicability and Compliance | Not Applicable |
| External Classifications and Standards | |
| ETIM 9 | EC000675 - Power supply for bus system |
| ETIM 10 | EC000675 - Power supply for bus system |
| eClass | V11.0 : 27143114 |
| UNSPSC | 39121004 |
| IDEA Granular Category Code (IGCC) | 4127 >> Power supply units |
| Object Classification Code | A |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE KNX & SOLUTION FOR BUILDINGS EN.pdf | 88 Mbytes |
|
| PDF CATALOGUE NIESSEN EN .pdf | 36 Mbytes |
|
| 2CDG110275R0011 SU/S 30.640.2 EN_2CDG110275R0011.pdf | 161 Kbytes |
|
