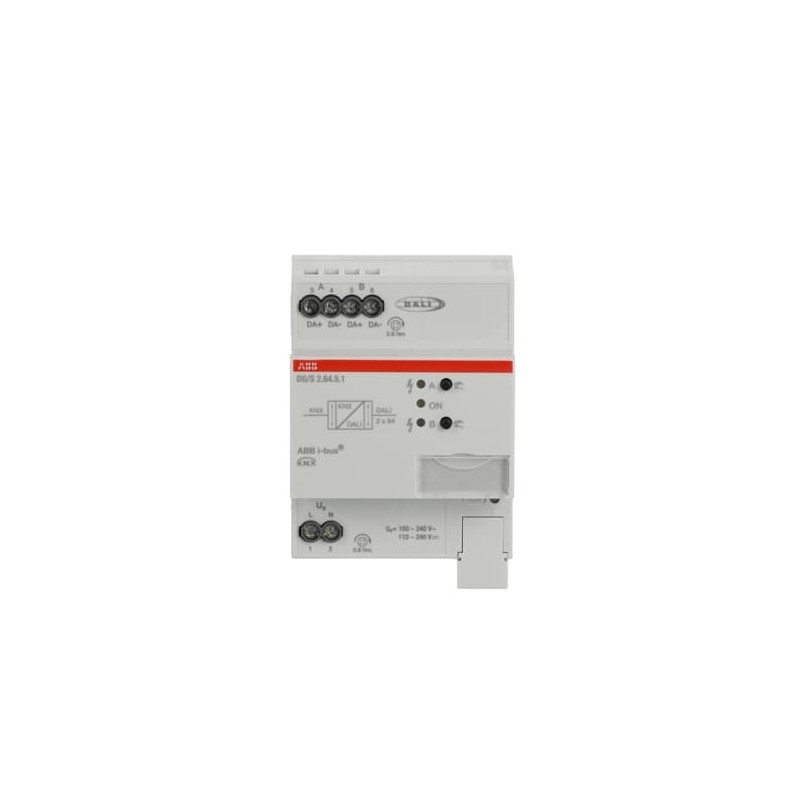

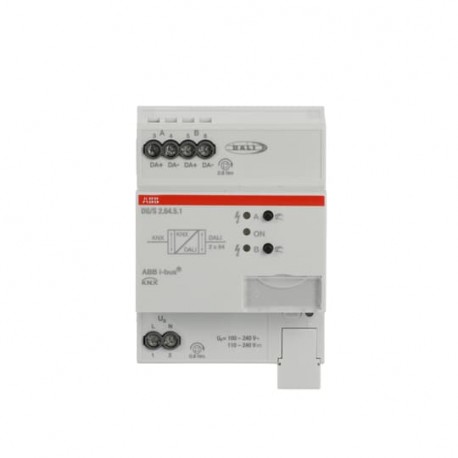

2CDG110274R0011 DG/S 2.64.5.1 NIESSEN DALI-Gateway, color, 2 canales
2CDG110274R0011
DG/S 2.64.5.1
NIESSEN
DALI-Gateway, color, 2 canales
DG/S2.64.5.1 DALI Gateway, Premium, 2-fold, MDRC
Installation bus systems > System interface/media gateway for bus system
KNX-EIB
Brand new product in its original packaging covered by the warranties and certifications provided by NIESSEN
Best sellers
▲More info
▲| Installation | |
|---|---|
| Instructions and Manuals | 2CDG941225P0002 |
| Wiring Diagram | 9AKK108464A0349 |
| Mounting Type | DIN-Rail |
| Environmental | |
| Ambient Air Temperature | Operation -5 ... +45 °C |
| Degree of Protection | IP20 |
| Technical | |
| Data Sheet, Technical Information | 2CDC507175D0211 |
| Communication Interface | DALI |
| Number of Outputs | 2 |
| Number of LEDs | 1 |
| Compatible Bus Systems | KNX (TP) |
| DALI | |
| Product Range | KNX |
| Software Updateable | Yes |
| Integrated Webserver | No |
| Manual Operation | Yes |
| Number of Batteries | 0 |
| Electrical | |
| Auxiliary Voltage AC/DC | 110 ... 230 V AC |
| Input Voltage (Uin) | 85 ... 264 V AC |
| Power Loss | 4 W |
| Design | |
| Color | light grey |
| Dimensions | |
| Width in Number of Modular Spacings | 4.0 |
| Product Net Width | 70 mm |
| Product Net Height | 90 mm |
| Product Net Depth / Length | 63.5 mm |
| Product Net Weight | 0.15 kg |
| Dimension Diagram | 2CDC072033F0015 |
| Engineering | |
| EPLAN Data | 9AAC189178_EPLAN |
| Ordering | |
| E-Number (Finland) | 2814676 |
| E-Number (Norway) | 4544206 |
| E-Number (Sweden) | 1739867 |
| E-Number (Switzerland) | 405670335 |
| Material Compliance | |
| RoHS Declaration | 2CDK507179D2701 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| REACH Declaration | 9AKK108471A7754 |
| REACH Information | True - contains substances > 0.1 mass percentage |
| REACH Date | 20251203 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| SCIP | 2c2e07aa-7492-4b9a-9f1c-afad3badffd8 Germany |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Certificates and Declarations | |
| CB Certificate | 9AKK108466A1905 |
| Declaration of Conformity - CE | 2CDK507179D2701 |
| Declaration of Conformity - UK-PSTI | 9AKK108464A0649 |
| EU Data Act Compliance Declaration | 9AKK108470A9399 |
| Cyber Security Software Support Period | 2 year |
| EU Data Act Applicability and Compliance | Applicable - Compliant |
| External Classifications and Standards | |
| ETIM 9 | EC001099 - System interface/media gateway for bus system |
| ETIM 10 | EC001099 - System interface/media gateway for bus system |
| eClass | V11.0 : 27143136 |
| UNSPSC | 43222605 |
| IDEA Granular Category Code (IGCC) | 6809 >> System interface/media gateway for bus system |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE KNX & SOLUTION FOR BUILDINGS EN.pdf | 88 Mbytes |
|
| PDF CATALOGUE NIESSEN EN .pdf | 36 Mbytes |
|
| 2CDG110274R0011 DG/S 2.64.5.1 EN_2CDG110274R0011.pdf | 111 Kbytes |
|
