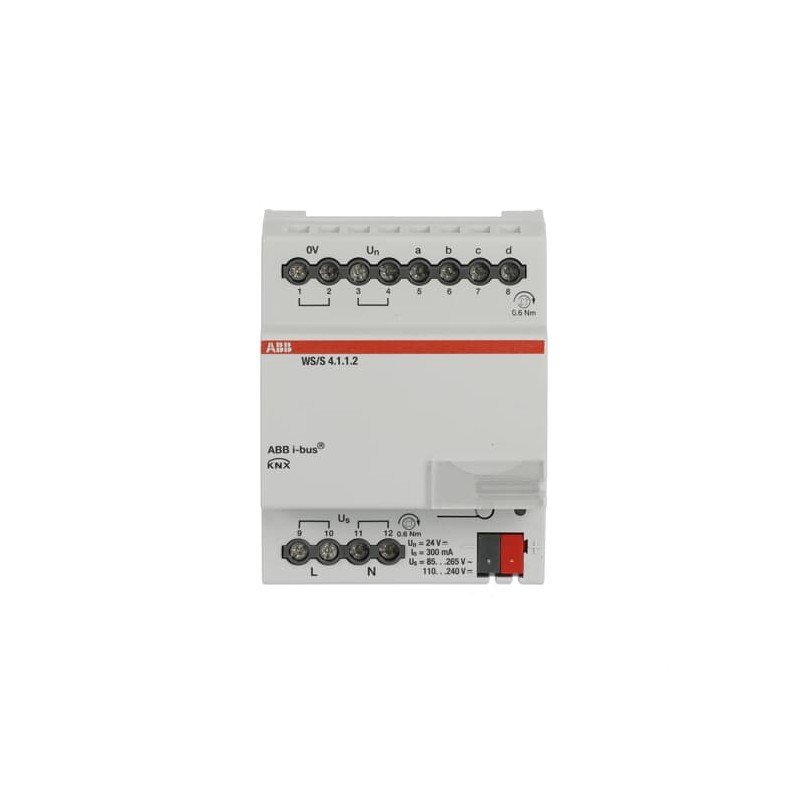

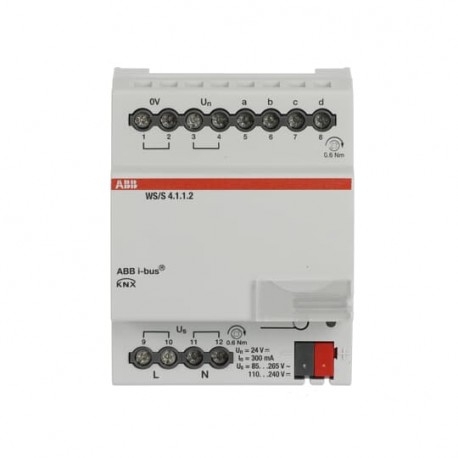

2CDG110191R0011 WS/S 4.1.1.2 NIESSEN ESTAC. METEO. 4 CANALES, DIN
2CDG110191R0011
WS/S 4.1.1.2
NIESSEN
ESTAC. METEO. 4 CANALES, DIN
ESTAC. WEATHER. 4 CHANNELS, DIN
WS/S4.1.1.2 Weather Station, 4-fold, MDRC
Installation bus systems > Analogue input for bus system
KNX-EIB
Brand new product in its original packaging covered by the warranties and certifications provided by NIESSEN
Best sellers
▲More info
▲| Installation | |
|---|---|
| Instructions and Manuals | 2CDG941144P0002 |
| Wiring Diagram | 9AKK108464A0311 |
| Mounting Type | DIN-Rail |
| Environmental | |
| Degree of Protection | IP20 |
| Technical | |
| Data Sheet, Technical Information | 2CDC504088D0201 |
| Number of LEDs | 1 |
| Number of Inputs | Analog (0 ... 10 V / 4 ... 20 mA) 4 |
| Compatible Bus Systems | KNX (TP) |
| Product Range | KNX |
| Manual Operation | No |
| Number of Batteries | 0 |
| Electrical | |
| Voltage Range | 110 ... 230 V AC |
| Auxiliary Voltage AC/DC | 230 V AC |
| Power Loss | 3 W |
| Design | |
| Color | light grey |
| Dimensions | |
| Width in Number of Modular Spacings | 4.0 |
| Product Net Width | 72 mm |
| Product Net Height | 90 mm |
| Product Net Depth / Length | 64.5 mm |
| Product Net Weight | 0.23 kg |
| Dimension Diagram | 2CDC072033F0015 |
| Engineering | |
| EPLAN Data | 9AAC189165_EPLAN |
| Ordering | |
| E-Number (Finland) | 2815537 |
| E-Number (Norway) | 4544392 |
| E-Number (Sweden) | 1738708 |
| E-Number (Switzerland) | 405551105 |
| Material Compliance | |
| RoHS Declaration | 2CDK504103D2701 |
| RoHS Information | Following EU Directive 2011/65/EU |
| REACH Declaration | 9AKK108471A7754 |
| REACH Information | True - contains substances > 0.1 mass percentage |
| REACH Date | 20251203 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| SCIP | 4fbb172d-ec04-4579-b47f-6ba692d89e0d Germany |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 2CDK504103D2701 |
| Declaration of Conformity - UK-PSTI | 9AKK108464A0793 |
| EU Data Act Compliance Declaration | 9AKK108470A9399 |
| KNX Certificate | 9AKK105710A0122 |
| Cyber Security Software Support Period | 2 year |
| EU Data Act Applicability and Compliance | Applicable - Compliant |
| External Classifications and Standards | |
| ETIM 9 | EC000794 - Analogue input for bus system |
| ETIM 10 | EC000794 - Analogue input for bus system |
| eClass | V11.0 : 27143107 |
| Object Classification Code | A |
| Standards | DIN EN 50090-2-2: 1996+Corrigendum:1997+A1:2002+A2:2007 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE KNX & SOLUTION FOR BUILDINGS EN.pdf | 88 Mbytes |
|
| PDF CATALOGUE NIESSEN EN .pdf | 36 Mbytes |
|
| 2CDG110191R0011 WS/S 4.1.1.2 EN_2CDG110191R0011.pdf | 123 Kbytes |
|
