> MURRPLASTIK>Corrugated pipes and fittings>VW 90 P21-M 83515658 MURRPLASTIK Conduits and fitting systems Type VW 90° metal thread Pg metal thread Black
Previous Product Next Product

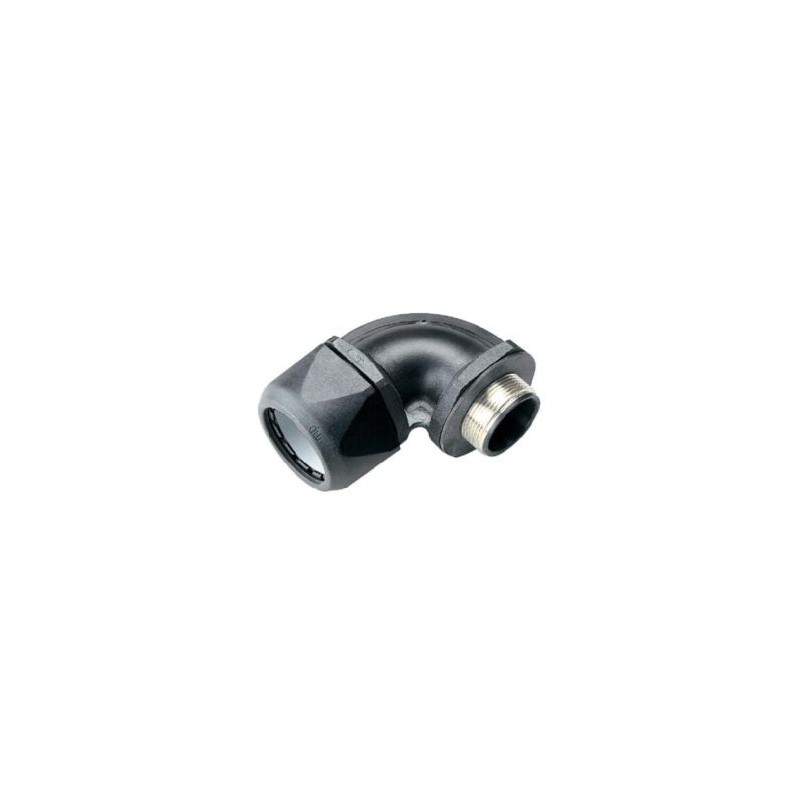

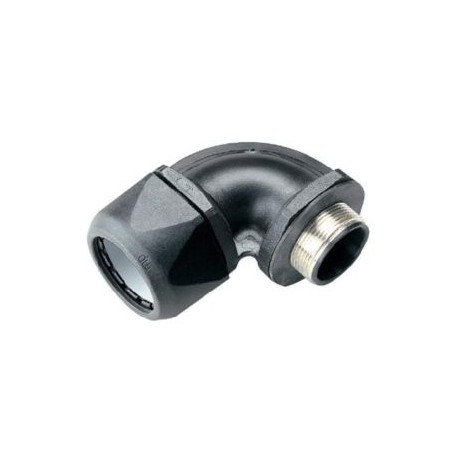

VW 90 P21-M 83515658 MURRPLASTIK Conduits and fitting systems Type VW 90° metal thread Pg metal thread Black View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

VW 90 P21-M 83515658 MURRPLASTIK Conduits and fitting systems Type VW 90° metal thread Pg metal thread Black

83515658

MURRPLASTIK

25

Conduits and fitting systems Type VW 90° (metal thread) Pg metal thread Black

More details


Corrugated pipes and fittings

* Brand new product in its original packaging covered by the warranties and certifications provided by MURRPLASTIK

* This article is restricted. Please ask us for a quotation and we will check if there are units available or we will offer you an alternative product.

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


The VW 90° conduit fittings are made of specially modified polyamide 6, thermoplastic elastomer and nickel-plated brass. The materials are halogen, phosphor and cadmium-free.

The VW 90° conduit fittings feature the following advantages:

Quick assembly, insert conduit, screw upper part tight, done

No parts can get lost, delivered completely assembled

Resistant to vibration due to lockable cap nut

Clamping along entire circumference, ensuring maximum tensile strength.

High level of tightness at IP 68/69K to 6 bar without any add-on components to EN 60529

Specification:

EN 45545-2 3x HL3

Halogen-free

-40°C – 110°C, transient / short term 140°C

i.a.w. UL94 V0

IP 68

EU railway approval

CSA approval

CURUS approval

Type Order No. Colour Connecting thread Suitable for Murrflex EH mm GL mm LW mm B mm SW 1 / 2 mm Pack qty.

Metric metal thread

VW 90 M12-M 83515252 Black M12x1.5 M12/P09 29 12 7.2 45 21 / 21 50
VW 90 M16-M 83515254 Black M16x1,5 M16/P11 35 12 10.5 55 27 / 27 50
VW 90 M20-M 83515256 Black M20x1.5 M20/P16 45 13 14.7 67 34 / 34 50
VW 90 M25-M 83515258 Black M25x1.5 M25/P21 55 13 18.7 78 41 / 41 25
VW 90 M32-M 83515260 Black M32x1.5 M32/P29 65 14 25.5 92 50 / 50 25
VW 90 M40-M 83515262 Black M40x1.5 M40/P36 75 17 33 109 60 / 60 25
VW 90 M50-M 83515264 Black M50x1.5 M50/P48 93 17 42 134 75 / 75 10
VW 90 M12-M 83515212 Grey M12x1.5 M12/P09 29 12 7.2 45 21 / 21 50
VW 90 M16-M 83515214 Grey M16x1,5 M16/P11 35 12 10.5 55 27 / 27 50
VW 90 M20-M 83515216 Grey M20x1.5 M20/P16 45 13 14.7 67 34 / 34 50
VW 90 M25-M 83515218 Grey M25x1.5 M25/P21 55 13 18.7 78 41 / 41 25
VW 90 M32-M 83515220 Grey M32x1.5 M32/P29 65 14 25.5 92 50 / 50 25
VW 90 M40-M 83515222 Grey M40x1.5 M40/P36 75 17 33 109 60 / 60 25
VW 90 M50-M 83515224 Grey M50x1.5 M50/P48 93 17 42 134 75 / 75 10

Pg metal thread

VW 90 P9-M 83515652 Black Pg 09 M12/P09 29 12 7.2 45 21 / 21 50
VW 90 P11-M 83515654 Black Pg 11 M16/P11 35 12 10.5 55 27 / 27 50
VW 90 P16-M 83515656 Black Pg 16 M20/P16 45 13 14.7 67 34 / 34 50
VW 90 P21-M 83515658 Black Pg 21 M25/P21 55 14 18.7 78 41 / 41 25
VW 90 P29-M 83515660 Black Pg 29 M32/P29 65 14 25.5 92 50 / 50 25
VW 90 P36-M 83515662 Black Pg 36 M40/P36 75 17 33 109 60 / 60 25
VW 90 P48-M 83515664 Black Pg 48 M50/P48 93 17 42 134 75 / 75 10
VW 90 P9-M 83515612 Grey Pg 09 M12/P09 29 12 7.2 45 21 / 21 50
VW 90 P11-M 83515614 Grey Pg 11 M16/P11 35 12 10.5 55 27 / 27 50
VW 90 P16-M 83515616 Grey Pg 16 M20/P16 45 13 14.7 67 34 / 34 50
VW 90 P21-M 83515618 Grey Pg 21 M25/P21 55 14 18.7 78 41 / 41 25
VW 90 P29-M 83515620 Grey Pg 29 M32/P29 65 14 25.5 92 50 / 50 25
VW 90 P36-M 83515622 Grey Pg 36 M40/P36 75 17 33 109 60 / 60 25
VW 90 P48-M 83515624 Grey Pg 48 M50/P48 93 17 42 134 75 / 75 10

NPT metal threading

VW 90 N 3/8"-M 83516050 Black 3/8" M16/P11 35 12 10.5 55 25 / 25 50
VW 90 N 1/2"-M 83516052 Black 1/2" M20/P16 45 13 14.6 67 34 / 34 50
VW 90 N 3/4"-M 83516054 Black 3/4" M25/P21 55 14 18.7 78 41 / 41 25
VW 90 N 1"-M 83516056 Black 1" M32/P29 65 14 25.6 92 50 / 50 25
VW 90 N 1 1/4 -M 83516058 Black 1 1/4" M40/P36 75 18 33.5 109 60 / 60 25
VW 90 N 2"-M 83516060 Black 2" M50/P48 93 18 42 134 75 / 75 10
VW 90 N 3/8"-M 83516010 Grey 3/8" M16/P11 35 12 10.5 55 25 / 25 50
VW 90 N 1/2"-M 83516012 Grey 1/2" M20/P16 45 13 14.6 67 34 / 34 50
VW 90 N 3/4"-M 83516014 Grey 3/4" M25/P21 55 14 18.7 78 41 / 41 25
VW 90 N 1"-M 83516016 Grey 1" M32/P29 65 14 25.6 92 50 / 50 25
VW 90 N 1 1/4 -M 83516018 Grey 1 1/4" M40/P36 75 18 33.5 109 60 / 60 25
VW 90 N 2"-M 83516020 Grey 2" M50/P48 93 18 42 134 75 / 75 10

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOG MURRPLASTIKS CONDUIT AND FITTING SYSTEMS EN.pdf 10 Mbytes
