> >>VW 45 NPT 1/2quot-M 83514052 MURRPLASTIK Conduits and fitting systems Type VW 45° metal thread NPT metal threadin
Previous Product Next Product

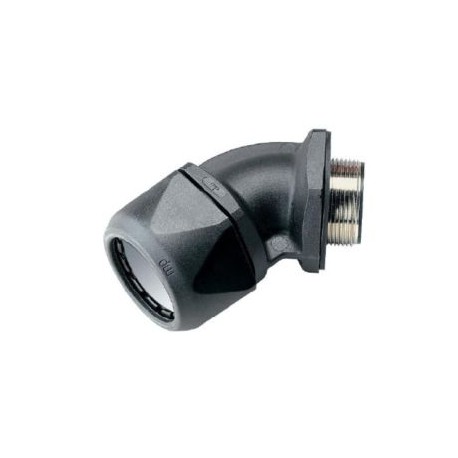

VW 45 NPT 1/2quot-M 83514052 MURRPLASTIK Conduits and fitting systems Type VW 45° metal thread NPT metal threadin View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

VW 45 NPT 1/2quot-M 83514052 MURRPLASTIK Conduits and fitting systems Type VW 45° metal thread NPT metal threadin

83514052

MURRPLASTIK

50

Conduits and fitting systems Type VW 45° (metal thread) NPT metal threading Black

More details


Corrugated pipes and fittings

* Brand new product in its original packaging covered by the warranties and certifications provided by MURRPLASTIK

* This article is restricted. Please ask us for a quotation and we will check if there are units available or we will offer you an alternative product.

If our price is not the best, please ask us for a quote. Ask for a quotation

More info

▲


The VW 45° conduit fittings are made of specially modified polyamide 6, thermoplastic elastomer and nickel-plated brass. The materials are halogen, phosphor and cadmium-free.

The VW 45° conduit fittings feature the following advantages:

Quick assembly, insert conduit, screw upper part tight, done

No parts can get lost, delivered completely assembled

Resistant to vibration due to lockable cap nut

Clamping along entire circumference, ensuring maximum tensile strength.

High level of tightness at IP 68/69K to 6 bar without any add-on components to EN 60529

Specification:

EN 45545-2 3x HL3

Halogen-free

-40°C – 110°C, transient / short term 140°C

i.a.w. UL94 V0

IP 68

EU railway approval

CSA approval

CURUS approval

Type Order No. Colour Connecting thread Suitable for Murrflex EH mm GL mm LW mm B mm SW 1 / 2 mm Pack qty.

Metric metal thread

VW 45 M12-M 83513252 Black M12x1.5 M12/P09 38 12 7.2 36 21 / 21 50
VW 45 M16-M 83513254 Black M16x1,5 M16/P11 45 12 10.5 43 27 / 27 50
VW 45 M20-M 83513256 Black M20x1.5 M20/P16 56 13 14.6 52 34 / 34 50
VW 45 M25-M 83513258 Black M25x1.5 M25/P21 65 13 18.7 65 41 / 41 25
VW 45 M32-M 83513260 Black M32x1.5 M32/P29 77 14 25.5 79 50 / 50 25
VW 45 M40-M 83513262 Black M40x1.5 M40/P36 90 17 33 95 60 / 60 25
VW 45 M50-M 83513264 Black M50x1.5 M50/P48 105 17 42 115 75 / 75 10
VW 45 M12-M 83513212 Grey M12x1.5 M12/P09 38 12 7.2 36 21 / 21 50
VW 45 M16-M 83513214 Grey M16x1,5 M16/P11 45 12 10.5 43 27 / 27 50
VW 45 M20-M 83513216 Grey M20x1.5 M20/P16 56 13 14.6 52 34 / 34 50
VW 45 M25-M 83513218 Grey M25x1.5 M25/P21 65 13 18.7 65 41 / 41 25
VW 45 M32-M 83513220 Grey M32x1.5 M32/P29 77 14 25.5 79 50 / 50 25
VW 45 M40-M 83513222 Grey M40x1.5 M40/P36 90 17 33 95 60 / 60 25
VW 45 M50-M 83513224 Grey M50x1.5 M50/P48 105 17 42 115 75 / 75 10

Pg-metal threading

VW 45 P9-M 83513652 Black Pg 09 M12/P09 38 12 7.2 36 21 / 21 50
VW 45 P11-M 83513654 Black Pg 11 M16/P11 45 12 10.5 43 27 / 27 50
VW 45 P16-M 83513656 Black Pg 16 M20/P16 56 13 14.7 52 34 / 34 50
VW 45 P21-M 83513658 Black Pg 21 M25/P21 65 13 18.7 65 41 / 41 25
VW 45 P29-M 83513660 Black Pg 29 M32/P29 77 14 25.5 79 50 / 50 25
VW 45 P36-M 83513662 Black Pg 36 M40/P36 90 17 33 95 60 / 60 25
VW 45 P48-M 83513664 Black Pg 48 M50/P48 105 17 42 115 75 / 75 10
VW 45 P9-M 83513612 Grey Pg 09 M12/P09 38 12 7.2 36 21 / 21 50
VW 45 P11-M 83513614 Grey Pg 11 M16/P11 45 12 10.5 43 27 / 27 50
VW 45 P16-M 83513616 Grey Pg 16 M20/P16 56 13 14.7 52 34 / 34 50
VW 45 P21-M 83513618 Grey Pg 21 M25/P21 65 13 18.7 65 41 / 41 25
VW 45 P29-M 83513620 Grey Pg 29 M32/P29 77 14 25.5 79 50 / 50 25
VW 45 P36-M 83513622 Grey Pg 36 M40/P36 90 17 33 95 60 / 60 25
VW 45 P48-M 83513624 Grey Pg 48 M50/P48 105 17 42 115 75 / 75 10

NPT metal threading

VW 45 NPT 3/8"-M 83514050 Black 3/8" M16/P11 45 12 10.5 43 24 / 24 50
VW 45 NPT 1/2"-M 83514052 Black 1/2" M20/P16 56 13 14.6 52 33 / 33 50
VW 45 NPT 3/4"-M 83514054 Black 3/4" M25/P21 65 13 18.7 65 41 / 41 25
VW 45 NPT 1"-M 83514056 Black 1" M32/P29 77 14 25.5 79 50 / 50 25
VW 45 NPT 1 1/4"-M 83514058 Black 1 1/4" M40/P36 90 17 33 95 60 / 60 25
VW 45 NPT 2"-M 83514060 Black 2" M50/P48 105 17 42 115 75 / 75 10
VW 45 NPT 3/8"-M 83514010 Grey 3/8" M16/P11 45 12 10.5 43 24 / 24 50
VW 45 NPT 1/2"-M 83514012 Grey 1/2" M20/P16 56 13 14.6 52 33 / 33 50
VW 45 NPT 3/4"-M 83514014 Grey 3/4" M25/P21 65 13 18.7 65 41 / 41 25
VW 45 NPT 1"-M 83514016 Grey 1" M32/P29 77 14 25.5 79 50 / 50 25
VW 45 NPT 1 1/4"-M 83514018 Grey 1 1/4" M40/P36 90 17 33 95 60 / 60 25
VW 45 NPT 2"-M 83514020 Grey 2" M50/P48 105 17 42 115 75 / 75 10

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOG MURRPLASTIKS CONDUIT AND FITTING SYSTEMS EN.pdf 10 Mbytes
