> MURRPLASTIK>Accessories for Robotics>R-SSR D 63 83952699 MURRPLASTIK Tension clamp axis 6
Previous Product Next Product

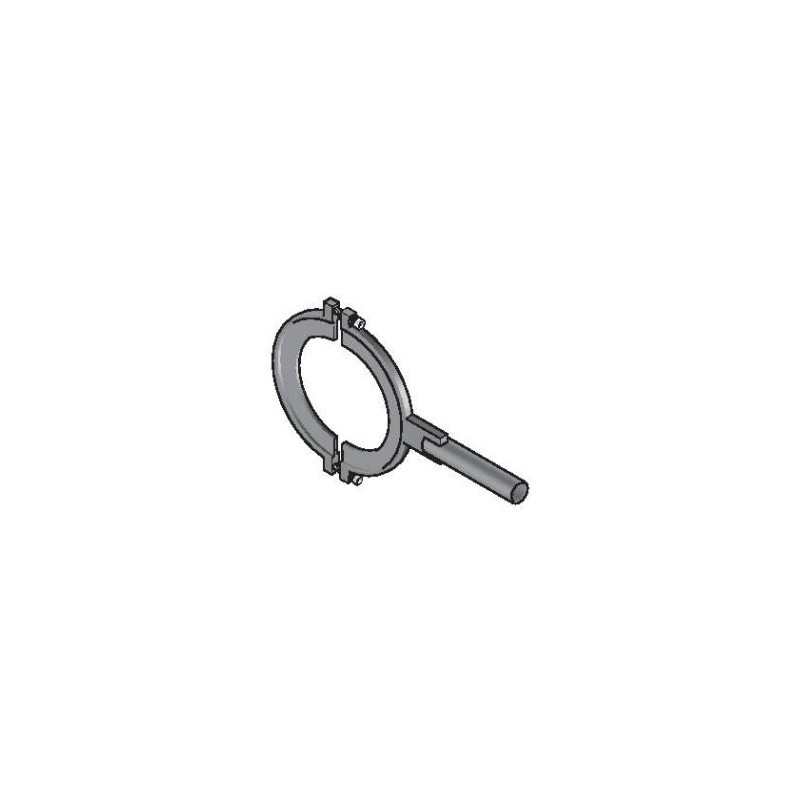

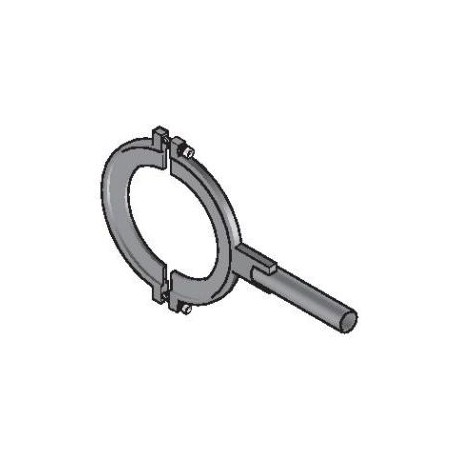

R-SSR D 63 83952699 MURRPLASTIK Tension clamp axis 6 View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

R-SSR D 63 83952699 MURRPLASTIK Tension clamp axis 6

R-SSR D 63

83952699

MURRPLASTIK

Tension clamp (axis 6)

More details


Accessories for Robotics

Brand new product in its original packaging covered by the warranties and certifications provided by MURRPLASTIK

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


The R-SSR wrist support serves to provide a fixing point on axis 6. Addition fastening elements can be affixed to the wrist support as required.

ROBI approval

Type Order No. Colour Ø mm A mm Pack qty. B mm
Kuka KR6, KR 10 retaining plate, axis 6 83692753 Black 39.5 83 1
R-SSR D 50 tension clamp with angled sheet 83952697 Black 50 89.5 1
R-SSR D63 tension clamp UR3 83693201 Black 63 54 1
R-SSR D 63 tension clamp with angled sheet 83952699 Black 63 99.3 1
R-SSR D75 tension clamp UR5 83693202 Black 75 60 1
R-SSR D90 tension clamp UR10 83693203 Black 90 68 1
R-SSR 100-1 tension clamp with pipe 15° 83952626 Black 100 289 1 32
R-SSR D 116 tension clamp with pipe, straight 83692712 Black 116 301 1 32
R-SSR 125-1 tension clamp with pipe 15° 82952696 Black 125 361.6 1 32
R-SSR 125-2 tension clamp with pipe, straight 82390044 Black 125 352.5 1 32
R-SSR 140-1 tension clamp with pipe, straight 82390067 Black 140 355 1 32
R-SSR 160-1 tension clamp with pipe 15° 83952628 Black 160 374.4 1 32
R-SSR D 160 tension clamp with pipe, straight 83952629 Black 160 370 1 32
R-SSR 172-1 tension clamp with pipe 15° 83952634 Black 172 384 1 32
R-SSR 180-1 tension clamp with pipe 15° 82390032 Black 180 384 1 32
R-SSR 190-1 tension clamp with pipe 15° 83952638 Black 190 384 1 32
R-SSR 200-1 tension clamp with pipe 15° 83952642 Black 200 388.2 1 32
R-SSR 220-1 tension clamp with pipe 15° 83952640 Black 220 392.3 1 32
R-SSR 250-1 tension clamp with pipe 15° 83952646 Black 250 412.3 1 32
R-SSR 315-1 tension clamp with pipe 15° 83692711 Black 315 493.7 1 32

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOG MURRPLASTIKS ROBOTIC EQUIPMENT EN.pdf 6 Mbytes
