> MURRPLASTIK>Corrugated pipes and fittings>MCSKV-PG 16 6X4 83582280 MURRPLASTIK Conduits and fitting systems Type MCSKV conduit and cable fitting Pg thre
Previous Product Next Product

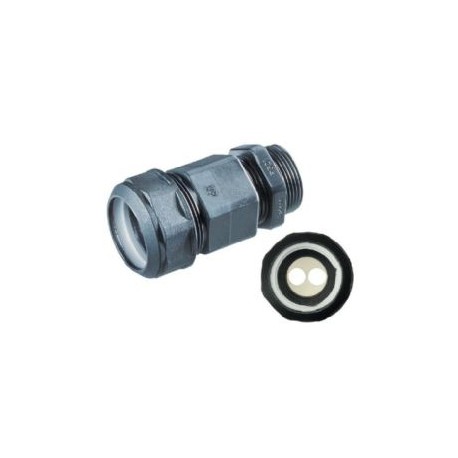

MCSKV-PG 16 6X4 83582280 MURRPLASTIK Conduits and fitting systems Type MCSKV conduit and cable fitting Pg thre View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

MCSKV-PG 16 6X4 83582280 MURRPLASTIK Conduits and fitting systems Type MCSKV conduit and cable fitting Pg thre

83582280

MURRPLASTIK

50

Conduits and fitting systems Type MCSKV (conduit and cable fitting) Pg threads Black

More details


Corrugated pipes and fittings

* Brand new product in its original packaging covered by the warranties and certifications provided by MURRPLASTIK

Total price: $2,801.48
Unit price: $56.03

*This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


The MCSKV conduit and cable fitting is a combination of our proven WKK cable fitting and the m-tec EH conduit fitting with multi-insert.

The fittings are made of specially modified polyamide.

The materials are halogen, phosphor and cadmium-free.

The MCSKV conduit and cable fittings feature the following advantages:

No parts can get lost, delivered completely assembled

Tightness of IP 65 for static and dynamic application

Integrated clamping ring ensures high tear-out strength

Several cables can be inserted at the same time

Halogen-free

-40°C – 110°C, transient / short term 140°C

i.a.w. UL94 V0

IP 65

EU railway approval

Type Order No. Colour Connecting thread Suitable for Murrflex Number x Ø mm EH mm GL mm SW 1 / 3 mm Pack qty.

Metric thread

MCSKV-M16x1.5/9/4x1.4 83582850 Black M16x1,5 M12/P09 4 x 1.4 45 8 19 / 19 50
MCSKV-M16x1.5/9/2x3 83582852 Black M16x1,5 M12/P09 2 x 3 45 8 19 / 19 50
MCSKV-M20x1.5/16/3x2 83582854 Black M20x1.5 M20/P16 3 x 2 52 9 27 / 27 50
MCSKV-M20x1.5/16/6x3 83582856 Black M20x1.5 M20/P16 6 x 3 52 9 27 / 27 50
MCSKV-M20x1.5/16/3x4 83582858 Black M20x1.5 M20/P16 3 x 4 52 9 27 / 27 50
MCSKV-M20x1.5/16/2x5 83582860 Black M20x1.5 M20/P16 2 x 5 52 9 27 / 27 50
MCSKV-M25x1.5/21/4x2 83582862 Black M25x1.5 M25/P21 4 x 2 60 11 33 / 33 50
MCSKV-M25x1.5/21/3x7 83582864 Black M25x1.5 M25/P21 3 x 7 60 11 33 / 33 50
MCSKV-M25x1.5/21/2x8 83582866 Black M25x1.5 M25/P21 2 x 8 60 11 33 / 33 50
MCSKV-M32x1.5/29/6x6.5 83582868 Black M32x1.5 M32/P29 6 x 6.5 69 11 42 / 42 25
MCSKV-M32x1.5/29/4x9 83582870 Black M32x1.5 M32/P29 4 x 9 69 11 42 / 42 25

Pg threads

MCSKV-Pg 09 4x1,4 83582250 Black Pg 09 M12/P09 4 x 1.4 45 8 19 / 19 50
MCSKV-Pg 09 4x3 83582252 Black Pg 09 M12/P09 4 x 3 45 8 19 / 19 50
MCSKV-Pg 11 2x3 83582254 Black Pg 11 M16/P11 2 x 3 49 8 22 / 22 50
MCSKV-Pg 11 2x4 83582256 Black Pg 11 M16/P11 2 x 4 49 8 22 / 22 50
MCSKV-Pg 11 3x3 83582258 Black Pg 11 M16/P11 3 x 3 49 8 22 / 22 50
MCSKV-Pg 13.5 2x5 83582260 Black Pg 13.5 DN 13 2 x 5 52 9 24 / 27 50
MCSKV-Pg 13.5 3x2 83582262 Black Pg 13.5 DN 13 3 x 2 52 9 24 / 27 50
MCSKV-Pg 13.5 3x4 83582264 Black Pg 13.5 DN 13 3 x 4 52 9 24 / 27 50
MCSKV-Pg 13.5 6x3 83582266 Black Pg 13.5 DN 13 6 x 3 52 9 24 / 27 50
MCSKV-Pg 16 2x6 83582268 Black Pg 16 M20/P16 2 x 6 52 10 27 / 27 50
MCSKV-Pg 16 3x3 83582270 Black Pg 16 M20/P16 3 x 3 52 10 27 / 27 50
MCSKV-Pg 16 3x4 83582272 Black Pg 16 M20/P16 3 x 4 52 10 27 / 27 50
MCSKV-Pg 16 3x6 83582274 Black Pg 16 M20/P16 3 x 6 52 10 27 / 27 50
MCSKV-Pg 16 4x4 83582276 Black Pg 16 M20/P16 4 x 4 52 10 27 / 27 50
MCSKV-Pg 16 5x4 83582278 Black Pg 16 M20/P16 5 x 4 52 10 27 / 27 50
MCSKV-Pg 16 6x4 83582280 Black Pg 16 M20/P16 6 x 4 52 10 27 / 27 50
MCSKV-Pg 21 2x8 83582282 Black Pg 21 M25/P21 2 x 8 60 11 33 / 33 50
MCSKV-Pg 21 3x7 83582284 Black Pg 21 M25/P21 3 x 7 60 11 33 / 33 50
MCSKV-Pg 21 4x6 83582286 Black Pg 21 M25/P21 4 x 6 60 11 33 / 33 50
MCSKV-Pg 09 4x1,4 83582210 Grey Pg 09 M12/P09 4 x 1.4 45 8 19 / 19 50
MCSKV-Pg 09 4x3 83582212 Grey Pg 09 M12/P09 4 x 3 45 8 19 / 19 50
MCSKV-Pg 11 2x3 83582214 Grey Pg 11 M16/P11 2 x 3 49 8 22 / 22 50
MCSKV-Pg 11 2x4 83582216 Grey Pg 11 M16/P11 2 x 4 49 8 22 / 22 50
MCSKV-Pg 11 3x3 83582218 Grey Pg 11 M16/P11 3 x 3 49 8 22 / 22 50
MCSKV-Pg 13.5 2x5 83582220 Grey Pg 13.5 DN 13 2 x 5 52 9 24 / 27 50
MCSKV-Pg 13.5 3x2 83582222 Grey Pg 13.5 DN 13 3 x 2 52 9 24 / 27 50
MCSKV-Pg 13.5 3x4 83582224 Grey Pg 13.5 DN 13 3 x 4 52 9 24 / 27 50
MCSKV-Pg 13.5 6x3 83582226 Grey Pg 13.5 DN 13 6 x 3 52 9 24 / 27 50
MCSKV-Pg 16 2x6 83582228 Grey Pg 16 M20/P16 2 x 6 52 10 27 / 27 50
MCSKV-Pg 16 3x3 83582230 Grey Pg 16 M20/P16 3 x 3 52 10 27 / 27 50
MCSKV-Pg 16 3x4 83582232 Grey Pg 16 M20/P16 3 x 4 52 10 27 / 27 50
MCSKV-Pg 16 3x6 83582234 Grey Pg 16 M20/P16 3 x 6 52 10 27 / 27 50
MCSKV-Pg 16 4x4 83582236 Grey Pg 16 M20/P16 4 x 4 52 10 27 / 27 50
MCSKV-Pg 16 5x4 83582238 Grey Pg 16 M20/P16 5 x 4 52 10 27 / 27 50
MCSKV-Pg 16 6x4 83582240 Grey Pg 16 M20/P16 6 x 4 52 10 27 / 27 50
MCSKV-Pg 21 2x8 83582242 Grey Pg 21 M25/P21 2 x 8 60 11 33 / 33 50
MCSKV-Pg 21 3x7 83582244 Grey Pg 21 M25/P21 3 x 7 60 11 33 / 33 50
MCSKV-Pg 21 4x6 83582246 Grey Pg 21 M25/P21 4 x 6 60 11 33 / 33 50

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOG MURRPLASTIKS CONDUIT AND FITTING SYSTEMS EN.pdf 10 Mbytes
