> MURRPLASTIK>Corrugated pipes and fittings>KW-M16X1,5/9 83565010 MURRPLASTIK Conduit fitting Type KW 90° Metric thread Grey
Previous Product Next Product

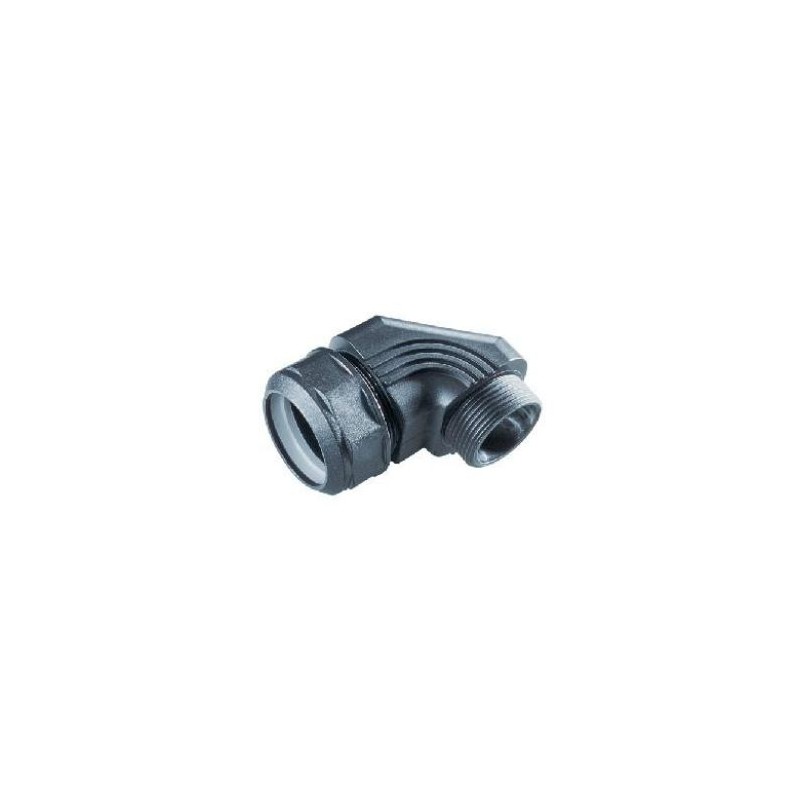

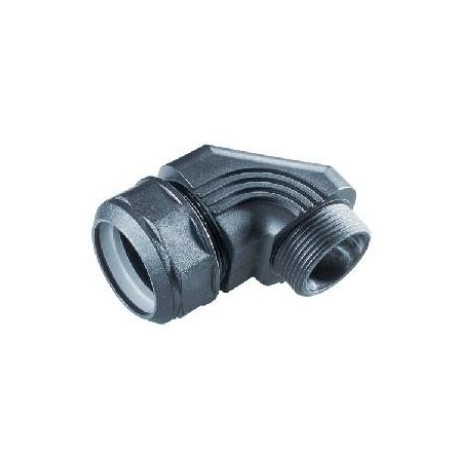

KW-M16X1,5/9 83565010 MURRPLASTIK Conduit fitting Type KW 90° Metric thread Grey View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

KW-M16X1,5/9 83565010 MURRPLASTIK Conduit fitting Type KW 90° Metric thread Grey

83565010

MURRPLASTIK

50

Conduit fitting Type KW 90° Metric thread Grey

More details


Corrugated pipes and fittings

* Brand new product in its original packaging covered by the warranties and certifications provided by MURRPLASTIK

Total price: $1,182.08
Unit price: $23.64

*This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


The angled KW 90° conduit fittings with plastic threading are made from specially modified polyamide. The materials are halogen, phosphor and cadmium-free.

The KW 90° conduit fittings feature the following advantages:

No parts can get lost, delivered completely assembled

Tightness of IP 65 for static and dynamic application

Integrated clamping ring ensures high tear-out strength

Easy insertion of the cables through rounded inside bend

Specification:

UL listed E 148958

EN 45545-2 3x HL3

Halogen-free

-40°C – 110°C, transient / short term 140°C

i.a.w. UL94 V0

IP 65

EU railway approval

CURUS approval

Type Order No. Colour Connecting thread Suitable for Murrflex EH mm L mm GL mm LW mm SW 2 mm Pack qty.

Metric thread

KW-M16x1,5/9 83565050 Black M16x1,5 M12/P09 27 47 7.5 9.5 22 50
KW-M20x1,5/11 83565052 Black M20x1.5 M16/P11 29 51 8 13 24 50
KW-M25x1,5/16 83565054 Black M25x1.5 M20/P16(S) 35 56 10 16 30 50
KW-M32x1,5/21 83565056 Black M32x1.5 M25/P21(S) 41 67 12 22 38 25
KW-M40x1,5/29 83565058 Black M40x1.5 M32/P29(S) 53 82 12 28 46 25
KW-M16x1,5/9 83565010 Grey M16x1,5 M12/P09 27 47 7.5 9.5 22 50
KW-M20x1,5/11 83565012 Grey M20x1.5 M16/P11 29 51 8 13 24 50
KW-M25x1,5/16 83565014 Grey M25x1.5 M20/P16(S) 35 56 10 16 30 50
KW-M32x1,5/21 83565016 Grey M32x1.5 M25/P21(S) 41 67 12 22 38 25
KW-M40x1,5/29 83565018 Grey M40x1.5 M32/P29(S) 53 82 12 28 46 25

Pg threads

KW-Pg 09 83561050 Black Pg 09 M12/P09 27 45 7.5 9.5 22 50
KW-Pg 11 83561052 Black Pg 11 M16/P11 29 51 8 13 24 50
KW-Pg 13/16 83561054 Black Pg 13.5 M20/P16(S) 35 56 10 16 30 50
KW-Pg 16 83561056 Black Pg 16 M20/P16(S) 35 56 10 16 30 50
KW-Pg 21 83561058 Black Pg 21 M25/P21(S) 41 67 11 22 38 25
KW-Pg 29 83561060 Black Pg 29 M32/P29(S) 53 82 12 29 46 25
KW-Pg 09 83561010 Grey Pg 09 M12/P09 27 45 7.5 9.5 22 50
KW-Pg 11 83561012 Grey Pg 11 M16/P11 29 51 8 13 24 50
KW-Pg 13/16 83561014 Grey Pg 13.5 M20/P16(S) 35 56 10 16 30 50
KW-Pg 16 83561016 Grey Pg 16 M20/P16(S) 35 56 10 16 30 50
KW-Pg 21 83561018 Grey Pg 21 M25/P21(S) 41 67 11 22 38 25
KW-Pg 29 83561020 Grey Pg 29 M32/P29(S) 53 82 12 29 46 25

NPT thread

KW-3/8"/11 83561451 Black 3/8" M16/P11 29 51 8 13 24 50
KW-1/2"/16 83561450 Black 1/2" M20/P16(S) 35 56 10 16 30 50
KW-3/4"/21 83561452 Black 3/4" M25/P21(S) 41 67 11 21 38 25
KW-1"/29 83561454 Black 1" M32/P29(S) 53 82 12 27 46 25
KW-3/8'/11 83561411 Grey 3/8" M16/P11 29 51 8 13 24 50
KW-1/2"/16 83561410 Grey 1/2" M20/P16(S) 35 56 10 16 30 50
KW-3/4"/21 83561412 Grey 3/4" M25/P21(S) 41 67 11 21 38 25
KW-1"/29 83561414 Grey 1" M32/P29(S) 53 82 12 27 46 25

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOG MURRPLASTIKS CONDUIT AND FITTING SYSTEMS EN.pdf 10 Mbytes
