> MURRPLASTIK>Corrugated pipes and fittings>KSV-M16X1.5/9 83611410 MURRPLASTIK Conduit and cable fitting Type KSV Metric thread Grey
Previous Product Next Product

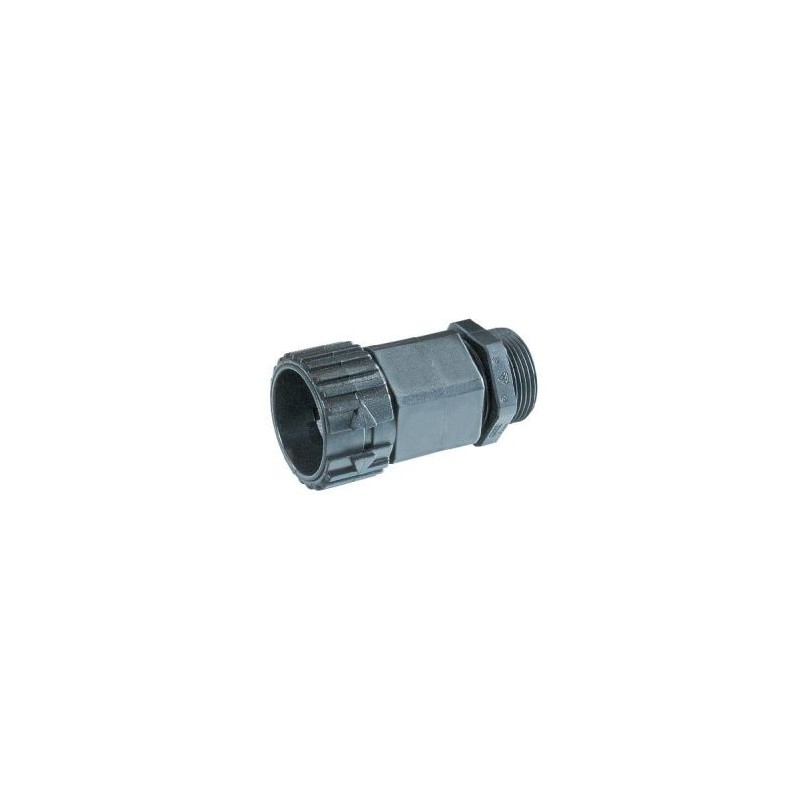

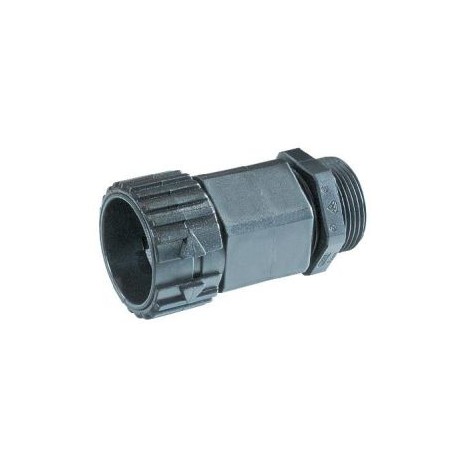

KSV-M16X1.5/9 83611410 MURRPLASTIK Conduit and cable fitting Type KSV Metric thread Grey View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

KSV-M16X1.5/9 83611410 MURRPLASTIK Conduit and cable fitting Type KSV Metric thread Grey

83611410

MURRPLASTIK

50

Conduit and cable fitting Type KSV Metric thread Grey

More details


Corrugated pipes and fittings

* Brand new product in its original packaging covered by the warranties and certifications provided by MURRPLASTIK

Total price: $170.43
Unit price: $3.41

Quantity Price
50+$3.41
100+$2.93
150+$2.74
*This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


The KSV combined conduit and cable fittings are made of specially modified polyamide 6. The materials are halogen, phosphor and cadmium-free.

The KSV combined conduit and cable fittings feature the following advantages:

Optimum strain relief for the cable

Cost reduction through simplification of assembly of conduit, insert conduit and done

No parts can get lost, as the fitting does not have to be dismantled for assembly

Tightness of IP 54 for static and dynamic application, IP 65 with additional mounting of an O-ring

Specification:

EN 45545-2 3x HL3

Halogen-free

-40°C – 110°C, transient / short term 140°C

i.a.w. UL94 V0

IP 54IP 65

EU railway approval

Type Order No. Colour Connecting thread Suitable for Murrflex Clamping range (LW) mm SW 1 / 3 mm Pack qty.

Metric thread

KSV-M16x1.5/9 83611450 Black M16x1,5 M12/P09 4 – 8 19 / 50
KSV-M16x1.5/11 83611452 Black M16x1,5 M16/P11 5 – 10 22 / 50
KSV-M20x1.5/16 83611456 Black M20x1.5 M20/P16(S) 10 – 14 24 / 27 50
KSV-M25x1.5/21 83611458 Black M25x1.5 M25/P21(S) 13 – 18 33 / 50
KSV-M32x1.5/29 83611460 Black M32x1.5 M32/P29(S) 18 – 25 42 / 25
KSV-M16x1.5/9 83611410 Grey M16x1,5 M12/P09 4 – 8 19 / 50
KSV-M16x1.5/11 83611412 Grey M16x1,5 M16/P11 5 – 10 22 / 50
KSV-M20x1.5/16 83611416 Grey M20x1.5 M20/P16(S) 10 – 14 24 / 27 50
KSV-M25x1.5/21 83611418 Grey M25x1.5 M25/P21(S) 13 – 18 33 / 50
KSV-M32x1.5/29 83611420 Grey M32x1.5 M32/P29(S) 18 – 25 42 / 25

Pg plastic threading

KSV-Pg 09 83611250 Black Pg 09 M12/P09 4 – 8 19 / 50
KSV-Pg 11 83611252 Black Pg 11 M16/P11 5 – 10 22 / 50
KSV PG 13/11 83611253 Black Pg 13 M16/P11 6 – 12 27 / 24 50
KSV-Pg 13,5/16 83611254 Black Pg 13.5 M20/P16(S) 6 – 12 24 / 27 50
KSV-Pg 16 83611256 Black Pg 16 M20/P16(S) 10 – 14 27 / 50
KSV-Pg 16/21 83611257 Black Pg 16 M25/P21 13 – 18 33 / 50
KSV-Pg 21 83611258 Black Pg 21 M25/P21(S) 13 – 18 33 / 50
KSV-Pg 29 83611260 Black Pg 29 M32/P29(S) 18 – 25 42 / 25

NPT plastic threading

KSV 3/8"/9 83613250 Black 3/8" M12/P09 4 – 8 19 / 50
KSV 1/2"/16 83613256 Black 1/2" M20/P16 10 – 14 27 / 50
KSV 3/4"/21 83613258 Black 3/4" M25/P21(S) 13 – 18 33 / 25
KSV 1"-/29 83613260 Black 1" M32/P29 18 – 25 42 / 25
KSV 3/8"/9 83613210 Grey 3/8" M12/P09 4 – 8 19 / 50
KSV 1/2"/16 83613216 Grey 1/2" M20/P16(S) 10 – 14 27 / 50
KSV 3/4"/21 83613218 Grey 3/4" M25/P21(S) 13 – 18 33 / 25
KSV 1"-/29 83613220 Grey 1" M32/P29(S) 18 – 25 42 / 25

Pg threads

KSV-Pg 09 83611210 Grey Pg 09 M12/P09 4 – 8 19 / 50
KSV-Pg 11 83611212 Grey Pg 11 M16/P11 5 – 10 22 / 50
KSV PG 13/11 83611213 Grey Pg 13 M16/P11 6 – 12 27 / 24 50
KSV-Pg 13,5/16 83611214 Grey Pg 13.5 M20/P16(S) 6 – 12 24 / 27 50
KSV-Pg 16 83611216 Grey Pg 16 M20/P16(S) 10 – 14 27 / 50
KSV-Pg 16/21 83611217 Grey Pg 16 M25/P21 13 – 18 33 / 50
KSV-Pg 21 83611218 Grey Pg 21 M25/P21(S) 13 – 18 33 / 50
KSV-Pg 29 83611220 Grey Pg 29 M32/P29(S) 18 – 25 42 / 25

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOG MURRPLASTIKS CONDUIT AND FITTING SYSTEMS EN.pdf 10 Mbytes
