> MURRPLASTIK>Marking systems>KS 4/12 86361024 MURRPLASTIK Labelling KS Label plate single-line Label length 12 mm
Previous Product Next Product

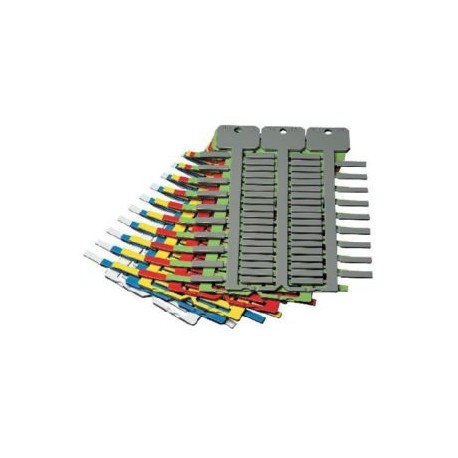

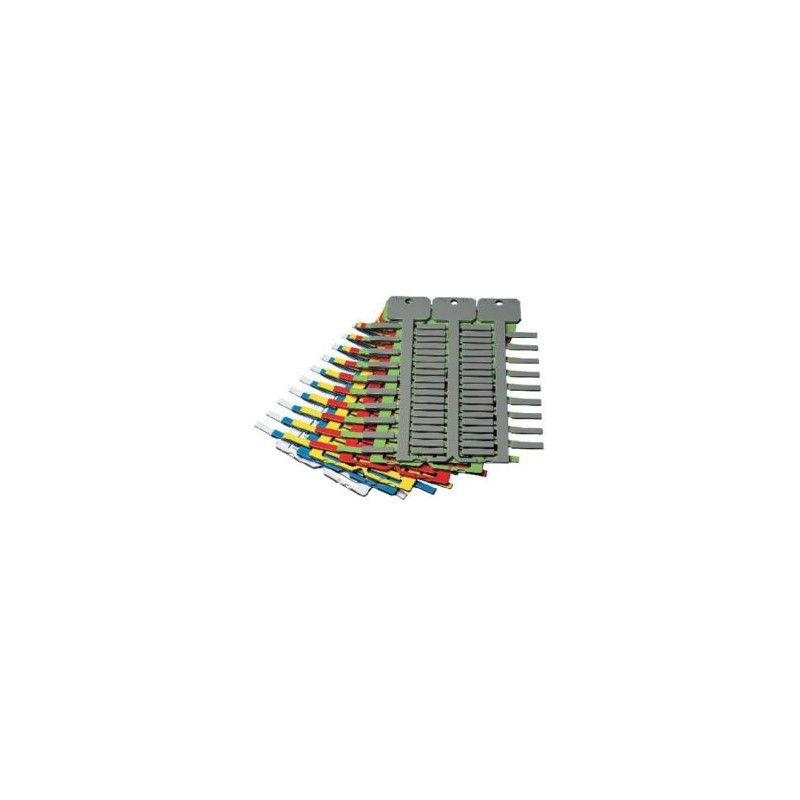

KS 4/12 86361024 MURRPLASTIK Labelling KS Label plate single-line Label length 12 mm View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

KS 4/12 86361024 MURRPLASTIK Labelling KS Label plate single-line Label length 12 mm

86361024

MURRPLASTIK

1026

Labelling KS Label plate (single-line) Label length 12 mm

More details


Marking systems

Brand new product in its original packaging covered by the warranties and certifications provided by MURRPLASTIK

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


High-quality, halogen-free, universal label. The KS 4/x label is used with sleeves KT, KTH, KTHQ or holders KM, KMH, KMHQ or KTN on wires, cables, lines or conduits.

Available in various lengths and colours.

The large printable area at the top provides room to reference individual projects.

Only the long mat version labels are to be used with the mp-LM laser series.

Halogen-free

-40°C – 130°C

Polycarbonate (PC)

V0

Type Order No. Colour RAL equiv. Label size mm (B x A) Title space mm No. characters/ lines No. per Frame Base plate Software Type Pack qty.

Label length 10 mm, 4-line mat design

KS 4/10 4ST 86361084 White 9016 4 x 10 4 x 10 5.0 / 1.0 64 GP4 A86 1024

Label length 12 mm, 4-line mat design

KS 4/12 4ST 86361086 White 9016 4 x 12 4 x 12 6.0 / 1.0 64 GP4 A87 1024
KS 4/12 4ST 86361087 Yellow 1018 4 x 12 4 x 12 6.0 / 1.0 64 GP4 430 1024

Label length 12 mm

KS 4/12 86361026 White 9016 4 x 12 4 x 12 6.0 / 1.0 57 GP3 6 1026
KS 4/12 86361018 Yellow 1018 4 x 12 4 x 12 6.0 / 1.0 57 GP3 7 1026
KS 4/12 86361020 Red 2012 4 x 12 4 x 12 6.0 / 1.0 57 GP3 8 1026
KS 4/12 86361022 Green 6018 4 x 12 4 x 12 6.0 / 1.0 57 GP3 9 1026
KS 4/12 86361024 Blue 5012 4 x 12 4 x 12 6.0 / 1.0 57 GP3 10 1026
KS 4/12 86361019 Orange 2011 4 x 12 4 x 12 6.0 / 1.0 57 GP3 6O 1026

Label length 12 mm (high packaging density)

KS 4/12 ST 86361072 White 9016 4 x 12 4 x 12 6.0 / 1.0 72 GP3 6ST 1296
KS 4/12 ST 86361073 Yellow 1018 4 x 12 4 x 12 6.0 / 1.0 72 GP3 7ST 1296
KS 4/12 ST 86361074 Red 2012 4 x 12 4 x 12 6.0 / 1.0 72 GP3 8ST 1296

Label length 12 mm, levelled foot

KS 4/12-AF 86361027 White 9016 4 x 12 4 x 12 6.0 / 1.0 57 GP3 6AF 1026

Label length 15 mm, 4-line mat design

KS 4/15 4ST 86361088 White 9016 4 x 15 4 x 15 8.0 / 1.0 64 GP4 A88 1024

Label length 18 mm (high packaging density)

KS 4/18 ST 86361080 White 9016 4 x 18 4 x 18 10.0 / 1.0 72 GP3 1ST 1296
KS 4/18 ST 86361081 Yellow 1018 4 x 18 4 x 18 10.0 / 1.0 72 GP3 2ST 1296
KS 4/18 ST 86361082 Red 2012 4 x 18 4 x 18 10.0 / 1.0 72 GP3 3ST 1296

Label length 18 mm, levelled foot

KS 4/18-AF 86361037 White 9016 4 x 18 4 x 18 10.0 / 1.0 57 GP3 5AF 1026

Label length 23 mm

KS 4/23 86361064 White 9016 4 x 23 4 x 23 12.0 / 1.0 34 GP3 11A 1020
KS 4/23 86361066 Yellow 1018 4 x 23 4 x 23 12.0 / 1.0 34 GP3 11B 1020
KS 4/23 86361068 Red 2012 4 x 23 4 x 23 12.0 / 1.0 34 GP3 11C 1020

Label length 30 mm

KS 4/30 86361042 White 9016 4 x 30 4 x 30 16.0 / 1.0 34 GP3 15 1020
KS 4/30 86361246 Yellow 1018 4 x 30 4 x 30 16.0 / 1.0 34 GP3 17 1020
KS 4/30 86361240 Red 2012 4 x 30 4 x 30 16.0 / 1.0 34 GP3 16 1020
KS 4/30 86361244 Green 6018 4 x 30 4 x 30 16.0 / 1.0 34 GP3 19 1020
KS 4/30 86361242 Blue 5012 4 x 30 4 x 30 16.0 / 1.0 34 GP3 18 1020
KS 4/30 PE 86361043 Green / Yellow 4 x 30 4 x 30 16.0 / 1.0 34 GP3 15P 1020

Label length 12 mm, long mat design

KS 4/12 L 86362026 White 9016 4 x 12 4 x 12 6.0 / 1.0 57 GP3 477 1026
KS 4/12 L 86362018 Yellow 1018 4 x 12 4 x 12 6.0 / 1.0 57 GP3 478 1026
KS 4/12 L 86362020 Red 2012 4 x 12 4 x 12 6.0 / 1.0 57 GP3 479 1026
KS 4/12 L 86362022 Green 6018 4 x 12 4 x 12 6.0 / 1.0 57 GP3 480 1026
KS 4/12 L 86362024 Blue 5012 4 x 12 4 x 12 6.0 / 1.0 57 GP3 481 1026

Label length 18 mm, long mat design

KS 4/18 L 86362036 White 9016 4 x 18 4 x 18 10.0 / 1.0 57 GP3 472 1026
KS 4/18 L 86362028 Yellow 1018 4 x 18 4 x 18 10.0 / 1.0 57 GP3 473 1026
KS 4/18 L 86362030 Red 2012 4 x 18 4 x 18 10.0 / 1.0 57 GP3 474 1026
KS 4/18 L 86362032 Green 6018 4 x 18 4 x 18 10.0 / 1.0 57 GP3 475 1026
KS 4/18 L 86362034 Blue 5012 4 x 18 4 x 18 10.0 / 1.0 57 GP3 476 1026

Label length 23 mm, long mat design

KS 4/23 L 86362064 White 9016 4 x 23 4 x 23 12.0 / 1.0 34 GP3 459 1020
KS 4/23 L 86362066 Yellow 1018 4 x 23 4 x 23 12.0 / 1.0 34 GP3 460 1020
KS 4/23 L 86362068 Red 2012 4 x 23 4 x 23 12.0 / 1.0 34 GP3 461 1020

Label length 30 mm, long mat design

KS 4/30 L 86362042 White 9016 4 x 30 4 x 30 16.0 / 1.0 34 GP3 462 1020
KS 4/30 L 86362046 Yellow 1018 4 x 30 4 x 30 16.0 / 1.0 34 GP3 463 1020
KS 4/30 L 86362040 Red 2012 4 x 30 4 x 30 16.0 / 1.0 34 GP3 464 1020
KS 4/30 L 86362044 Green 6018 4 x 30 4 x 30 16.0 / 1.0 34 GP3 465 1020
KS 4/30 L 86362045 Blue 5012 4 x 30 4 x 30 16.0 / 1.0 34 GP3 466 1020

Label length 18 mm

KS 4/18 86361033 Orange 2011 4 x 18 4 x 18 10.0 / 1.0 57 GP3 1O 1026
KS 4/18 86361035 Brown 8003 4 x 18 4 x 18 10.0 / 1.0 57 GP3 1B 1026
KS 4/18 86361029 Purple 4005 4 x 18 4 x 18 10.0 / 1.0 57 GP3 1L 1026
KS 4/18 86361031 Pink 4010 4 x 18 4 x 18 10.0 / 1.0 57 GP3 1R 1026
KS 4/18 86361228 Grey 7038 4 x 18 4 x 18 10.0 / 1.0 57 GP3 1G 1026

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOG MURRPLASTIKS LABELLING SYSTEMS EN.pdf 8 Mbytes
