> MURRPLASTIK>Corrugated pipes and fittings>GF-P 50 83342070 MURRPLASTIK Conduits and fitting systems Type GF-P braided conduit Grey
Previous Product Next Product

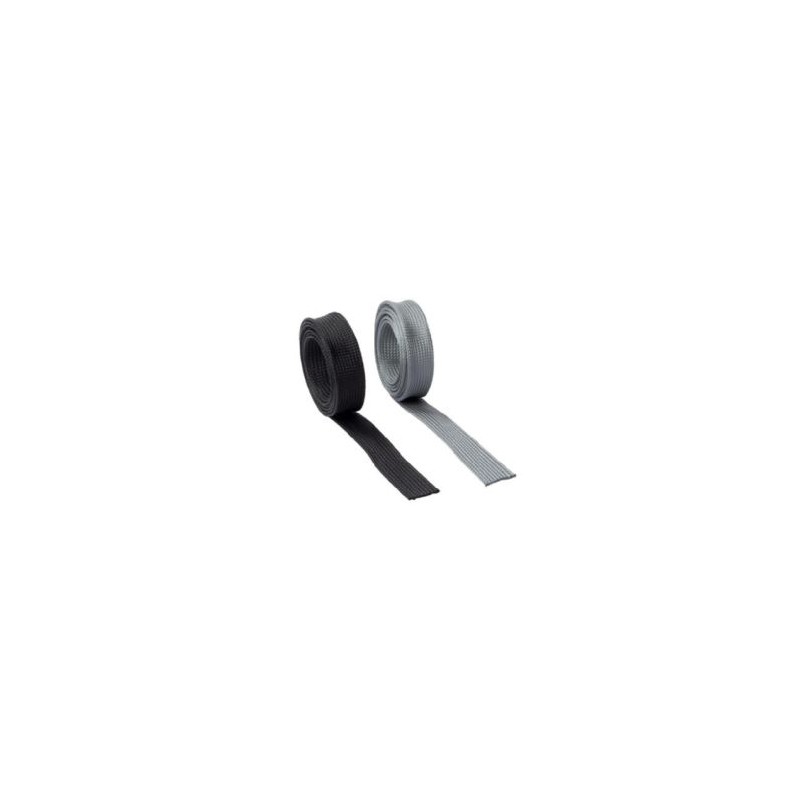

GF-P 50 83342070 MURRPLASTIK Conduits and fitting systems Type GF-P braided conduit Grey View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

GF-P 50 83342070 MURRPLASTIK Conduits and fitting systems Type GF-P braided conduit Grey

83342070

MURRPLASTIK

50

Conduits and fitting systems Type GF-P (braided conduit) Grey

More details


Corrugated pipes and fittings

* Brand new product in its original packaging covered by the warranties and certifications provided by MURRPLASTIK

Total price: $1,320.64
Unit price: $26.41

*This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


The GF-P braided conduits are made of specially modified polyester. With this material and the special braiding, the conduit is extremely durable and elastic in both the radial and axial directions.

It can be used to bundle and protect a large number of cables and individual wires of all types. The elastic braiding means that configuration of the conduit can be very variable.

Additional advantages of the GF-P braided conduit include:

Very good mechanical and thermal resistance

Good chemical resistance

Very low levels of smoke gas

Very high abrasion resistance

Specification:

EN 45545-2 3x HL3

Halogen-free

-55°C – 150°C

i.a.w. UL94 V2

EU railway approval

Type Order No. Colour Nominal widths NW Size range mm Surface covering in % Weight kg/100m Pack m
GF-P 3 83342008 Black 4 3 / 8 93 0.41 500
GF-P 4 83342010 Black 4 3 / 10 93 0.58 200
GF-P 6 83342012 Black 6 4 / 10.5 86 0.7 200
GF-P 8 83342014 Black 8 6 / 14 87 0.74 200
GF-P 10 83342016 Black 10 6 / 15 77 0.91 200
GF-P 12 83342018 Black 12 10 / 16 74 0.94 200
GF-P 16 83342020 Black 16 11 / 22 80 1.5 100
GF-P 20 83342022 Black 20 12 / 30 75 1.75 100
GF-P 22 83342024 Black 22 18 / 32 84 1.9 100
GF-P 30 83342026 Black 30 20 / 38 78 2.65 100
GF-P 40 83342028 Black 40 28 / 42 77 3.18 50
GF-P 50 83342030 Black 50 45 / 50 79 3.88 50
GF-P 70 83342032 Black 70 45 / 87 87 5.94 50
GF-P 4 83342050 Grey 4 3 / 10 93 0.58 200
GF-P 6 83342052 Grey 6 4 / 10.5 86 0.7 200
GF-P 8 83342054 Grey 8 6 / 14 87 0.74 200
GF-P 10 83342056 Grey 10 6 / 15 77 0.91 200
GF-P 12 83342058 Grey 12 10 / 16 74 0.94 200
GF-P 16 83342060 Grey 16 11 / 22 80 1.5 100
GF-P 20 83342062 Grey 20 12 / 30 75 1.75 100
GF-P 22 83342064 Grey 22 18 / 32 84 1.9 100
GF-P 30 83342066 Grey 30 20 / 38 78 2.65 100
GF-P 40 83342068 Grey 40 28 / 42 77 3.18 50
GF-P 50 83342070 Grey 50 45 / 50 79 3.88 50
GF-P 70 83342072 Grey 70 45 / 87 87 5.94 50

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOG MURRPLASTIKS CONDUIT AND FITTING SYSTEMS EN.pdf 10 Mbytes
