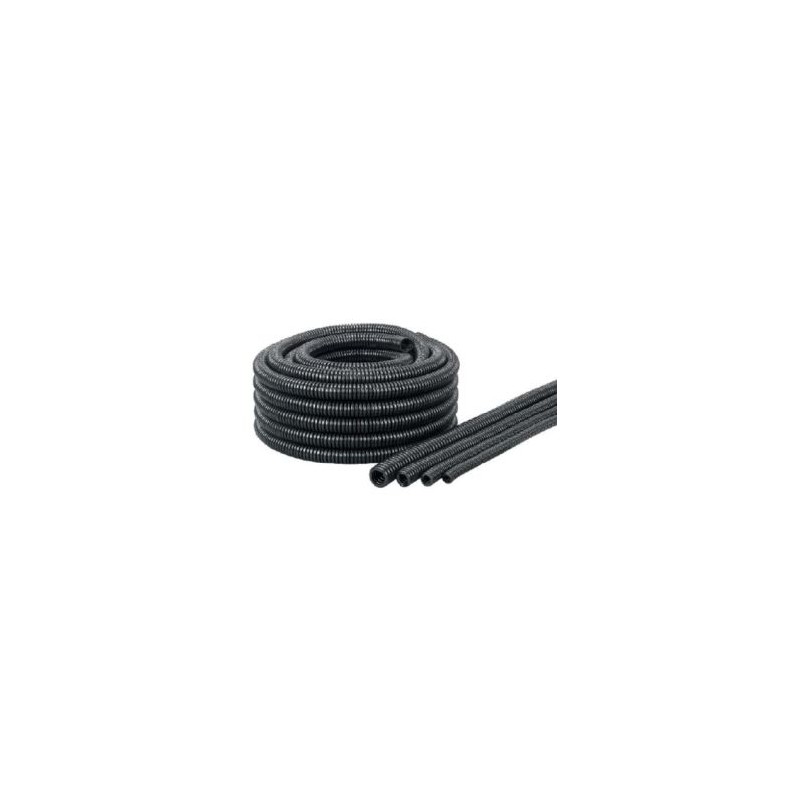

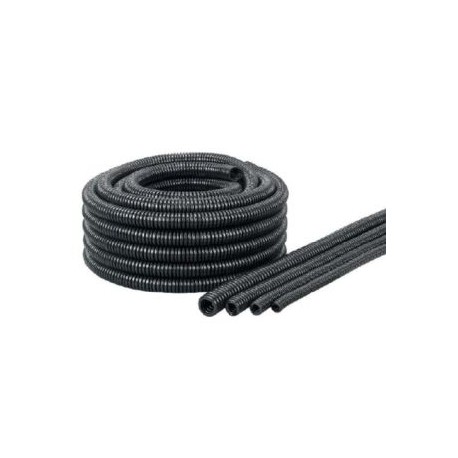

EWX-PA-LS-M50/P48 83163064 MURRPLASTIK Conduits and fitting systems Type EWX-PA-LS high corrugation High corru View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

EWX-PA-LS-M50/P48 83163064 MURRPLASTIK Conduits and fitting systems Type EWX-PA-LS high corrugation High corru

83163064

MURRPLASTIK

25

Conduits and fitting systems Type EWX-PA-LS (high corrugation) High corrugation Black

More details


Corrugated pipes and fittings

* Brand new product in its original packaging covered by the warranties and certifications provided by MURRPLASTIK

Total price: $28,815.93
Unit price: $1,152.64

*This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


The EWX-PA-LS cable protection conduits are made of specially modified polyamide 6. The material is halogen, phosphor and cadmium-free.

For installation of pre-assembled cables, retrofitting or repair of cables. For static applications involving extreme mechanical loads.

The EWX-PA-LS cable protection conduits have a higher corrugation and feature the following advantages:

Good flexibility

Less wear

Excellent crush resistance

Subsequent installation possible

Halogen-free

-40°C – 120°C, transient / short term 160°C

i.a.w. UL94 HB

Type Order No. Colour A Ø mm B Ø mm R stat. mm Weight kg/100m Pack m

High corrugation

EWX-PA-LS-M25/P21 83163058 Black 19.8 28.1 49 10.5 50
EWX-PA-LS-M32/P29 83163060 Black 24.1 34.5 57 12.7 25
EWX-PA-LS-M40/P36 83163062 Black 29.7 42.1 71 20.5 25
EWX-PA-LS-M50/P48 83163064 Black 38 54.1 87 23.0 25

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOG MURRPLASTIKS CONDUIT AND FITTING SYSTEMS EN.pdf 10 Mbytes
