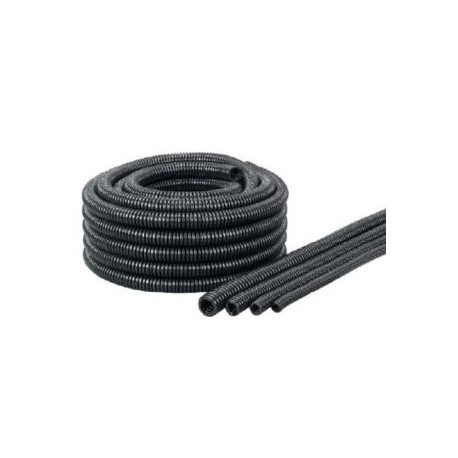

EWT-PA M12/P09 83164452 MURRPLASTIK Conduits and fitting systems Type EWT-PA split-flex® Standard corrugation Bl View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

EWT-PA M12/P09 83164452 MURRPLASTIK Conduits and fitting systems Type EWT-PA split-flex® Standard corrugation Bl

EWT-PA M12/P09

83164452

MURRPLASTIK

50

Conduits and fitting systems Type EWT-PA split-flex® Standard corrugation Black

More details


Corrugated pipes and fittings

* Brand new product in its original packaging covered by the warranties and certifications provided by MURRPLASTIK

* This article is restricted. Please ask us for a quotation and we will check if there are units available or we will offer you an alternative product.

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


The EWT-PA cable protection conduits are made of specially modified polyamide 6. The material is halogen, phosphor and cadmium-free. The conduits are suitable for static applications involving light to medium mechanical loads.

The EWT-PA cable protection conduits consist of a two-piece slotted conduit system and feature the following advantages:

Cable protection conduits can be opened and closed at any time.

Mounting of pre-assembled cables

Retrofitting or repair in mechanical and plant engineering

Halogen-free

-40°C – 120°C, transient / short term 160°C

i.a.w. UL94 HB

Type Order No. Colour A Ø mm B Ø mm R stat. mm Weight kg/100m Pack m

Standard corrugation

EWT-PA-M10/P7 83164250 Black 5.7 11.5 70 3.7 50
EWT-PA-M12/P9 83164252 Black 7.9 12.9 75 4.6 50
EWT-PA-M16/P11 83164254 Black 10 16.2 100 7.2 50
EWT-PA-M20/P16 83164256 Black 13.7 21 120 11.0 50
EWT-PA-M25/P21 83164258 Black 19.8 28.4 170 16.6 50
EWT-PA-M32/P29 83164260 Black 25 34.2 180 21.0 25
EWT-PA-M40/P36 83164262 Black 32.3 43.5 200 29.3 25
EWT-PA-M50/P48 83164264 Black 44 53.3 240 40.0 25
EWT-PA-70 Jumbo 83261022 Black 62.2 79 300 53.0 10

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOG MURRPLASTIKS CONDUIT AND FITTING SYSTEMS EN.pdf 10 Mbytes
