> MURRPLASTIK>Corrugated pipes and fittings>EW-PA-LS-M10/P7 83163851 MURRPLASTIK Conduits and fitting systems Type EW-PA-LS Standard corrugation Black
Previous Product Next Product

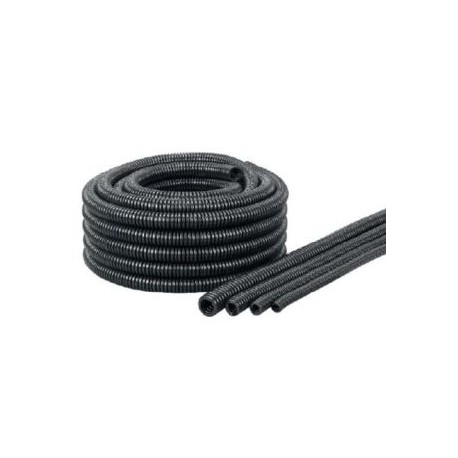

EW-PA-LS-M10/P7 83163851 MURRPLASTIK Conduits and fitting systems Type EW-PA-LS Standard corrugation Black View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

EW-PA-LS-M10/P7 83163851 MURRPLASTIK Conduits and fitting systems Type EW-PA-LS Standard corrugation Black

83163851

MURRPLASTIK

50

Conduits and fitting systems Type EW-PA-LS Standard corrugation Black

More details


Corrugated pipes and fittings

* Brand new product in its original packaging covered by the warranties and certifications provided by MURRPLASTIK

Total price: $63.25
Unit price: $1.27

*This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


The EW-PA-LS cable protection conduits are made of specially modified polyamide 6. The material is halogen, phosphor and cadmium-free.

The conduits are for universal use in both mechanical and plant engineering and vehicle engineering. With their slotted design, the conduits are ideally suited for retrofitting, repairs or for pre-assembled cables.

The EW-PA-LS cable protection conduits feature the following advantages:

High crush resistance

Good flexibility

Medium to high loads in static applications

Subsequent installation possible

Halogen-free

-40°C – 120°C, transient / short term 160°C

i.a.w. UL94 HB

Type Order No. Colour A Ø mm B Ø mm R stat. mm Weight kg/100m Pack m

Standard corrugation

EW-PA-LS-06 83163850 Black 6.6 10 21 2.2 50
EW-PA-LS-M10/P7 83163851 Black 8.5 11.4 24 2.5 50
EW-PA-LS-M12/P9 83163852 Black 9.8 13 26 2.8 50
EW-PA-LS-M16/P11 83163854 Black 12.3 15.8 38 3.8 50
EW-PA-LS-M20/P16 83163856 Black 15.8 21 55 5.8 50
EW-PA-LS-M25/P21 83980092 Black 22.5 28.5 59 9.0 50

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOG MURRPLASTIKS CONDUIT AND FITTING SYSTEMS EN.pdf 10 Mbytes
