> MURRPLASTIK>Corrugated pipes and fittings>EMC M16X1.5 5.0-10.0 84201802 MURRPLASTIK Conduits and fitting systems Type m-seal® EMC EMV Metric metal threa
Previous Product Next Product

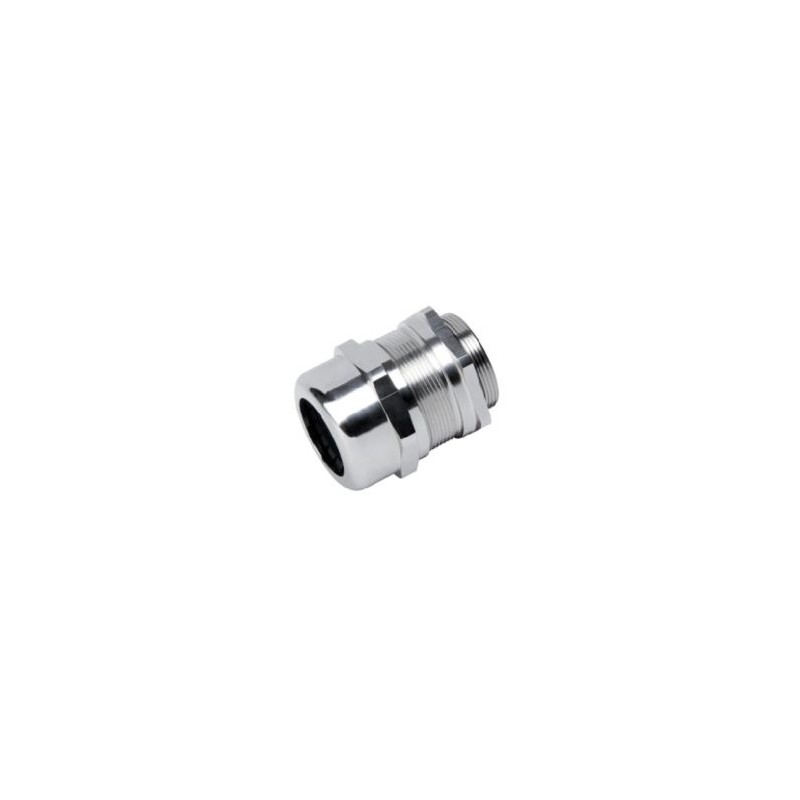

EMC M16X1.5 5.0-10.0 84201802 MURRPLASTIK Conduits and fitting systems Type m-seal® EMC EMV Metric metal threa View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

EMC M16X1.5 5.0-10.0 84201802 MURRPLASTIK Conduits and fitting systems Type m-seal® EMC EMV Metric metal threa

84201802

MURRPLASTIK

50

Conduits and fitting systems Type m-seal® EMC (EMV) Metric metal thread / EMC version

More details


Corrugated pipes and fittings

* Brand new product in its original packaging covered by the warranties and certifications provided by MURRPLASTIK

Total price: $346.35
Unit price: $6.93

Quantity Price
50+$6.93
100+$6.72
*This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


With the m-seal EMC (EMV) cable fittings, simple radial and axial movement of the cable are possible, even at contact location. The contact finger surfaces with rounded edges prevent damage to the conductor.

In addition, the large surface on the contact finger makes low contact resistance possible, even on loosely woven cables (the contact area does not press into the conductor).

The m-seal EMC (EMV) cable fitting features the following advantages:

Large seal and clamping area

With integrated strain relief

High protection class IP 68

High contract rating, even at vibration conditions

Very simple and rapid assembly without tools.

Suitable for the highest requirements of today's technology

Very good shielding attenuation

Halogen-free

-20°C – 100°C, transient / short term 150°C

i.a.w. UL94 V2

IP 68

CULUS approval

CURUS approval

VDE approval

Type Order No. Connecting thread Clamping range (LW) mm Contact diameter mm EH mm GL mm SW 1 / 2 mm Pack qty.

Metric metal thread / EMC version

m-seal EMC M12x1.5 3.0-6.5 84201800 M12x1.5 3 – 6.5 2 – 5 28 6 14 / 50
m-seal EMC M16x1.5 5.0-10.0 84201802 M16x1,5 5 – 10 3.5 – 8 34 6 20 / 50
m-seal EMC M20x1.5 6.0-12.0 84201804 M20x1.5 6 – 12 4.5 – 10 38 6 24 / 50
m-seal EMC M25x1.5 10.0-18.0 84201806 M25x1.5 10 – 18 7 – 14 42 8 30 / 25
m-seal EMC M32x1.5 16.0-25.0 84201808 M32x1.5 16 – 25 12 – 20 50 9 40 / 10
m-seal EMC M40x1.5 22.0-32.0 84201810 M40x1.5 22 – 32 18 – 27 57 9 50 / 5
m-seal EMC M50x1.5 30.0-38.0 84201812 M50x1.5 30 – 38 26 – 34 68 9 58 / 5
m-seal EMC M63x1.5 34.0-44.0 84201814 M63x1.5 34 – 44 30 – 40 69 14 64 / 68 5

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOG MURRPLASTIKS CONDUIT AND FITTING SYSTEMS EN.pdf 10 Mbytes
