> MURRPLASTIK>Corrugated pipes and fittings>DVW 90 M32/P21-M 83495258 MURRPLASTIK Conduits and fitting systems Type DVW 90° 360° rotatable conduit fitting
Previous Product Next Product

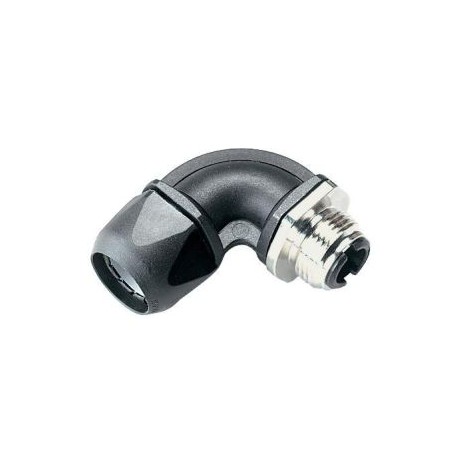

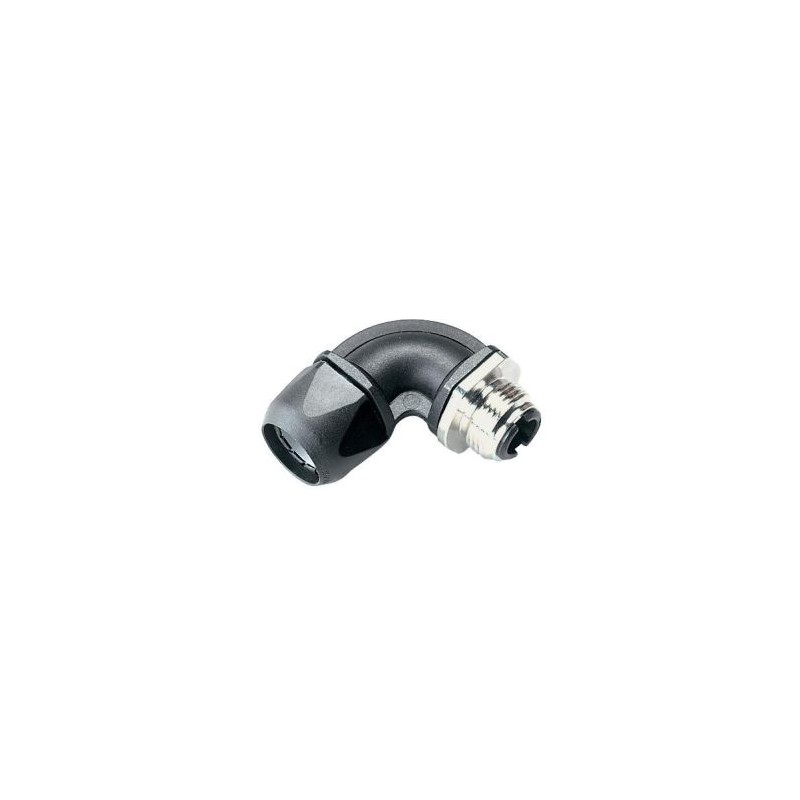

DVW 90 M32/P21-M 83495258 MURRPLASTIK Conduits and fitting systems Type DVW 90° 360° rotatable conduit fitting View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

DVW 90 M32/P21-M 83495258 MURRPLASTIK Conduits and fitting systems Type DVW 90° 360° rotatable conduit fitting

83495258

MURRPLASTIK

25

Conduits and fitting systems Type DVW 90° (360° rotatable conduit fitting; metal thread) Metric metal thread Black

More details


Corrugated pipes and fittings

* Brand new product in its original packaging covered by the warranties and certifications provided by MURRPLASTIK

* This article is restricted. Please ask us for a quotation and we will check if there are units available or we will offer you an alternative product.

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


The rotatable DVW 90° conduit fittings are made of specially modified polyamide 6, thermoplastic elastomer and nickel-plated brass. The materials are halogen, phosphor and cadmium-free.

The DVW 90° conduit fittings feature the following advantages:

Quick assembly, insert conduit, screw upper part tight, done

No parts can get lost, delivered completely assembled

Resistant to vibration due to lockable cap nut

Clamping along entire circumference, ensuring maximum tensile strength.

High level of tightness at IP 68/69K to 6 bar without any add-on components to EN 60529

Specification:

EN 45545-2 3x HL3

Halogen-free

-40°C – 110°C, transient / short term 140°C

i.a.w. UL94 V0

IP 68

EU railway approval

CSA approval

Type Order No. Colour Connecting thread Suitable for Murrflex EH mm GL mm LW mm B mm SW 1 / 2 / 3 mm Pack qty.

Metric metal thread

DVW 90 M16/P9-M 83495252 Black M16x1,5 M12/P09 31.8 11.2 7.2 45.8 21 / 21 / 21 50
DVW 90 M20/P11-M 83495254 Black M20x1.5 M16/P11 38.5 11.2 10.5 56.8 27 / 27 / 25 50
DVW 90 M25/P16-M 83495256 Black M25x1.5 M20/P16 48 12.2 14.6 68.6 34 / 27 / 34 25
DVW 90 M32/P21-M 83495258 Black M32x1.5 M25/P21 55.5 12.2 18.7 79.3 41 / 41 / 41 25
DVW 90 M40/P29-M 83495260 Black M40x1.5 M32/P29 67.5 13.2 25.5 93.6 50 / 50 / 50 25
DVW 90 M50/P36-M 83495262 Black M50x1.5 M40/P36 75.7 15.2 33 109.9 60 / 60 / 60 10
DVW 90 M63/P48-M 83495264 Black M63x1.5 M50/P48 92.8 15.2 41.2 135.8 75 / 75 / 75 10

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOG MURRPLASTIKS CONDUIT AND FITTING SYSTEMS EN.pdf 10 Mbytes
