> MURRPLASTIK>Corrugated pipes and fittings>DVW 45 M20/P11-M 83493254 MURRPLASTIK Conduits and fitting systems Type DVW 45° 360° rotatable conduit fitting
Previous Product Next Product

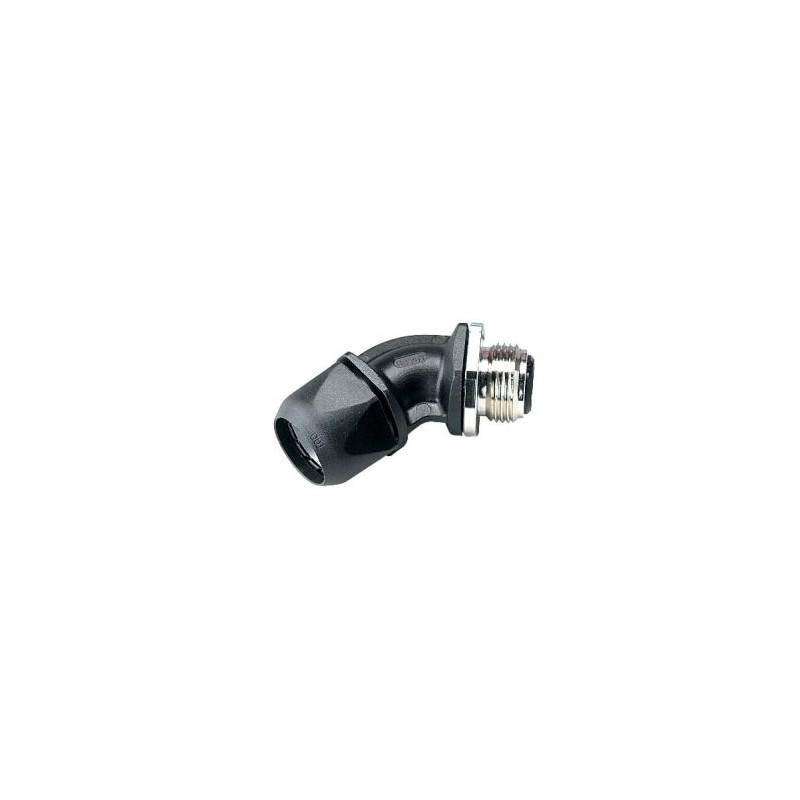

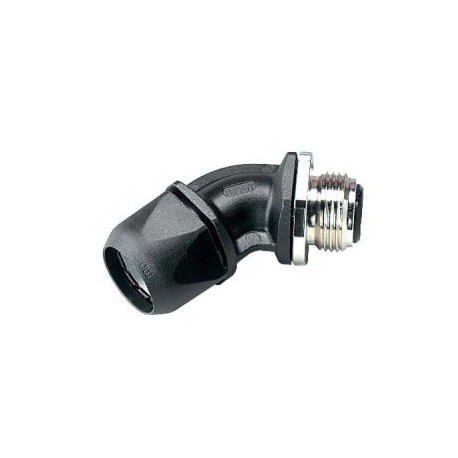

DVW 45 M20/P11-M 83493254 MURRPLASTIK Conduits and fitting systems Type DVW 45° 360° rotatable conduit fitting View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

DVW 45 M20/P11-M 83493254 MURRPLASTIK Conduits and fitting systems Type DVW 45° 360° rotatable conduit fitting

83493254

MURRPLASTIK

50

Conduits and fitting systems Type DVW 45° (360° rotatable conduit fitting; metal thread) Metric metal thread Black

More details


Corrugated pipes and fittings

* Brand new product in its original packaging covered by the warranties and certifications provided by MURRPLASTIK

* This article is restricted. Please ask us for a quotation and we will check if there are units available or we will offer you an alternative product.

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


The DVW 45° EMV conduit fittings are rotatable through 360° and made of specially modified polyamide 6, thermoplastic elastomer and nickel-plated brass. The materials are halogen, phosphor and cadmium-free.

The DVW 45° EMV rotatable conduit fittings feature the following advantages:

Quick assembly, insert conduit, screw upper part tight, done

No parts can get lost, delivered completely assembled

Resistant to vibration due to lockable cap nut

Clamping along entire circumference, ensuring maximum tensile strength.

High level of tightness at IP 68/69K to 6 bar without any add-on components to EN 60529

Specification:

EN 45545-2 3x HL3

Halogen-free

-40°C – 110°C, transient / short term 140°C

i.a.w. UL94 V0

IP 68

EU railway approval

CSA approval

Type Order No. Colour Connecting thread Suitable for Murrflex EH mm GL mm LW mm B mm SW 1 / 2 / 3 mm Pack qty.

Metric metal thread

DVW 45 M16/P9-M 83493252 Black M16x1,5 M12/P09 41 11.2 7.2 36.4 21 / 21 / 21 50
DVW 45 M20/P11-M 83493254 Black M20x1.5 M16/P11 49.1 11.2 10.5 44.6 27 / 27 / 27 50
DVW 45 M25/P16-M 83493256 Black M25x1.5 M20/P16 59.1 12.2 14.7 55.4 34 / 34 / 34 25
DVW 45 M32/P21-M 83493258 Black M32x1.5 M25/P21 68.2 12.2 18.7 67.1 41 / 41 / 41 25
DVW 45 M40/P29-M 83493260 Black M40x1.5 M32/P29 80.3 13.2 25.5 79.2 50 / 50 / 50 25
DVW 45 M50/P36-M 83493262 Black M50x1.5 M40/P36 92.1 17.2 33 93.7 60 / 60 / 60 10
DVW 45 M63/P48-M 83493264 Black M63x1.5 M50/P48 107.7 17.5 41.2 114.2 75 / 75 / 75 10

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOG MURRPLASTIKS CONDUIT AND FITTING SYSTEMS EN.pdf 10 Mbytes
