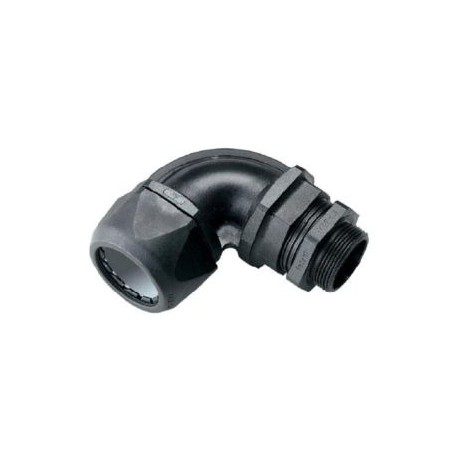

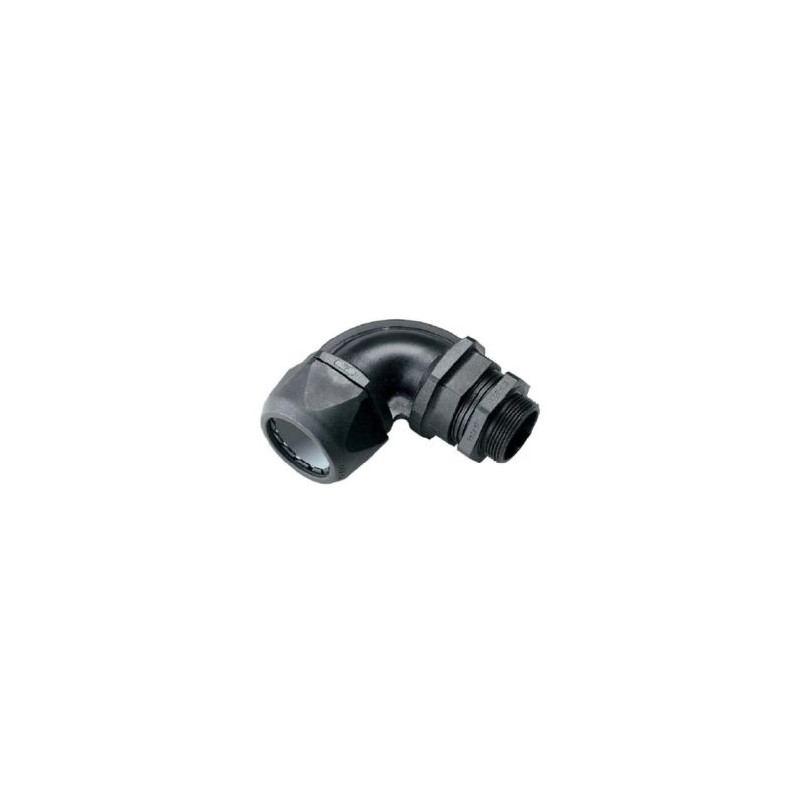

CVW 90 M25 83531458 MURRPLASTIK Conduits and fitting systems Type CVW 90° conduit and cable fitting plastic th View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

CVW 90 M25 83531458 MURRPLASTIK Conduits and fitting systems Type CVW 90° conduit and cable fitting plastic th

83531458

MURRPLASTIK

25

Conduits and fitting systems Type CVW 90° (conduit and cable fitting; plastic thread) Metric plastic thread Black

More details


Corrugated pipes and fittings

* Brand new product in its original packaging covered by the warranties and certifications provided by MURRPLASTIK

* This article is restricted. Please ask us for a quotation and we will check if there are units available or we will offer you an alternative product.

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


The CVW 90° combined conduit and cable fittings are made of specially modified polyamide 6 and thermoplastic elastomer. The materials are halogen, phosphor and cadmium-free.

The CVW 90° combined conduit and cable fittings feature the following advantages:

Quick assembly, insert conduit, screw upper part tight, done

No parts can get lost, delivered completely assembled

Resistant to vibration due to lockable cap nut

Clamping along entire circumference, ensuring maximum tensile strength.

Optimum strain relief for the cable

High level of tightness at IP 68/69K to 6 bar without any add-on components to EN 60529

Specification:

EN 45545-2 3x HL3

Halogen-free

-40°C – 110°C, transient / short term 140°C

i.a.w. UL94 V0

IP 68

EU railway approval

CSA approval

Type Order No. Colour Connecting thread Suitable for Murrflex EH mm GL mm B mm Clamping range (LW) mm SW 1 / 2 / 3 mm Pack qty.

Metric plastic thread

CVW 90 M12 83531450 Black M12x1.5 M12/P09 45 8 44 3 – 6.5 21 / 15 / 20 50
CVW 90 M16 83531452 Black M16x1,5 M16/P11 55 8 54 4 – 8 27 / 22 / 25 50
CVW 90 M20 83531456 Black M20x1.5 M20/P16 67 9 67 6 – 12 33 / 24 / 33 50
CVW 90 M25 83531458 Black M25x1.5 M25/P21 76 11 79 13 – 19 41 / 33 / 41 25
CVW 90 M32 83531460 Black M32x1.5 M32/P29 94 11 92 18 – 25 50 / 42 / 50 25
CVW 90 M40 83531462 Black M40x1.5 M40/P36 112 13 109 22 – 32 60 / 53 / 60 25
CVW 90 M63 83531464 Black M63x1.5 M50/P48 128 14 136 37 – 44 75 / 68 / 75 10

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOG MURRPLASTIKS CONDUIT AND FITTING SYSTEMS EN.pdf 10 Mbytes
