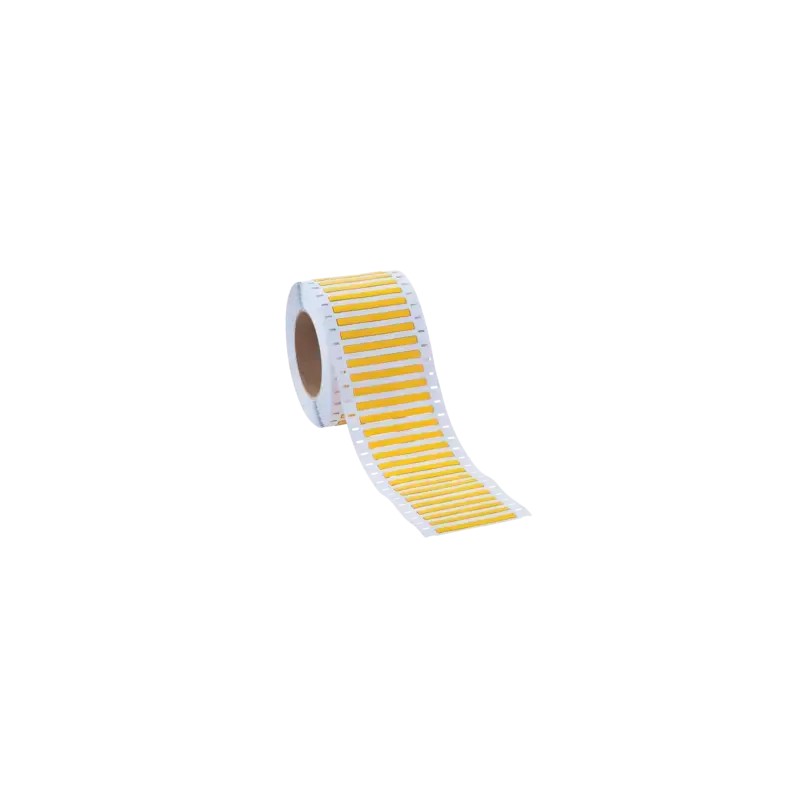

86532208 MURRPLASTIK Labelling ST-ECO taped Roll material taped, marker length 64 mm Yellow
86532208
MURRPLASTIK
4000
Labelling ST-ECO taped Roll material taped, marker length 64 mm Yellow
ST-ECO64-2,4 tubo term., ge-1000
ST-ECO taped
Marking systems
Brand new product in its original packaging covered by the warranties and certifications provided by MURRPLASTIK
Best sellers
▲More info
▲Polyolefine (PO) heat-shrink tube, type ST-ECO
Flat, thin-walled heat-shrink tube.
Flame retardant acc. to UL224. Shrink ratio 3:1
Particularly well-suited for use in labelling and identification.
Properties
Excellent printing results
Very good chemical, physical and electrical properties
Greatly flame retardant in accordance with UL224
Ready to use with thermal transfer printers
Shrink ratio of 3:1 (the recommended shrink range is -20 % of the max. value and +20 % of the min. value)
Shrink temperature >90°C
Application temperature -55°C to +135°C
Standard colours: White, yellow
Available upon request: Blue, red, green
-55°C – 135°C
Polyolefin
Highly flame retardant in accordance with UL 224/CSA
| Type | Order No. | Colour | Marker length mm | Flat area mm | Max. Kabel- diameter mm | Shrinkage area from - to Ø mm | Recommended Colour ribbon | Software Type | MOQ qty. | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
Roll material taped, marker length 16 mm | |||||||||||
| ST-ECO 16-2,4 | 86531200 | White | 16 | 4.2 | 2.4 | 2.4 – 0.8 | FHW 100mm x 300m | AAA | 4000 | ||
| ST-ECO 16-2,4 | 86532200 | Yellow | 16 | 4.2 | 2.4 | 2.4 – 0.8 | FHW 100mm x 300m | ABA | 4000 | ||
| ST-ECO 16-3,2 | 86531201 | White | 16 | 5.6 | 3.2 | 3.2 – 1.1 | FHW 100mm x 300m | AAB | 4000 | ||
| ST-ECO 16-3,2 | 86532201 | Yellow | 16 | 5.6 | 3.2 | 3.2 – 1.1 | FHW 100mm x 300m | ABB | 4000 | ||
| ST-ECO 16-4,8 | 86531202 | White | 16 | 7.6 | 4.8 | 4.8 – 1.6 | FHW 100mm x 300m | AAC | 4000 | ||
| ST-ECO 16-4,8 | 86532202 | Yellow | 16 | 7.6 | 4.8 | 4.8 – 1.6 | FHW 100mm x 300m | ABC | 4000 | ||
Roll material taped, marker length 32 mm | |||||||||||
| ST-ECO 32-2,4 | 86531203 | White | 32 | 4.2 | 2.4 | 2.4 – 0.8 | FHW 100mm x 300m | AAD | 2000 | ||
| ST-ECO 32-2,4 | 86532203 | Yellow | 32 | 4.2 | 2.4 | 2.4 – 0.8 | FHW 100mm x 300m | ABD | 2000 | ||
| ST-ECO 32-3,2 | 86531204 | White | 32 | 5.6 | 3.2 | 3.2 – 1.1 | FHW 100mm x 300m | AAE | 2000 | ||
| ST-ECO 32-3,2 | 86532204 | Yellow | 32 | 5.6 | 3.2 | 3.2 – 1.1 | FHW 100mm x 300m | ABE | 2000 | ||
| ST-ECO 32-4,8 | 86531205 | White | 32 | 7.6 | 4.8 | 4.8 – 1.6 | FHW 100mm x 300m | AAF | 2000 | ||
| ST-ECO 32-4,8 | 86532205 | Yellow | 32 | 7.6 | 4.8 | 4.8 – 1.6 | FHW 100mm x 300m | ABF | 2000 | ||
| ST-ECO 32-6,4 | 86531206 | White | 32 | 10.7 | 6.4 | 6.4 – 2.15 | FHW 100mm x 300m | AAG | 2000 | ||
| ST-ECO 32-6,4 | 86532206 | Yellow | 32 | 10.7 | 6.4 | 6.4 – 2.15 | FHW 100mm x 300m | ABG | 2000 | ||
| ST-ECO 32-9,5 | 86531207 | White | 32 | 15.1 | 9.5 | 9.5 – 3.2 | FHW 100mm x 300m | AAH | 1000 | ||
| ST-ECO 32-9,5 | 86532207 | Yellow | 32 | 15.1 | 9.5 | 9.5 – 3.2 | FHW 100mm x 300m | ABH | 1000 | ||
Roll material taped, marker length 64 mm | |||||||||||
| ST-ECO 64-2,4 | 86531208 | White | 64 | 4.2 | 2.4 | 2.4 – 0.8 | FHW 100mm x 300m | AAI | 1000 | ||
| ST-ECO 64-2,4 | 86532208 | Yellow | 64 | 4.2 | 2.4 | 2.4 – 0.8 | FHW 100mm x 300m | ABI | 1000 | ||
| ST-ECO 64-3,2 | 86531209 | White | 64 | 5.6 | 3.2 | 3.2 – 1.1 | FHW 100mm x 300m | AAJ | 1000 | ||
| ST-ECO 64-3,2 | 86532209 | Yellow | 64 | 5.6 | 3.2 | 3.2 – 1.1 | FHW 100mm x 300m | ABJ | 1000 | ||
| ST-ECO 64-4,8 | 86531210 | White | 64 | 7.6 | 4.8 | 4.8 – 1.6 | FHW 100mm x 300m | AAK | 1000 | ||
| ST-ECO 64-4,8 | 86532210 | Yellow | 64 | 7.6 | 4.8 | 4.8 – 1.6 | FHW 100mm x 300m | ABK | 1000 | ||
| ST-ECO 64-6,4 | 86531211 | White | 64 | 10.7 | 6.4 | 6.4 – 2.15 | FHW 100mm x 300m | AAL | 1000 | ||
| ST-ECO 64-6,4 | 86532211 | Yellow | 64 | 10.7 | 6.4 | 6.4 – 2.15 | FHW 100mm x 300m | ABL | 1000 | ||
| ST-ECO 64-9,5 | 86531212 | White | 64 | 15.1 | 9.5 | 9.5 – 3.2 | FHW 100mm x 300m | AAM | 500 | ||
| ST-ECO 64-9,5 | 86532212 | Yellow | 64 | 15.1 | 9.5 | 9.5 – 3.2 | FHW 100mm x 300m | ABM | 500 | ||
| ST-ECO 64-12,7 | 86531213 | White | 64 | 20.9 | 12.7 | 12.7 – 4.25 | FHW 100mm x 300m | AAN | 500 | ||
| ST-ECO 64-12,7 | 86532213 | Yellow | 64 | 20.9 | 12.7 | 12.7 – 4.25 | FHW 100mm x 300m | ABN | 500 | ||
| ST-ECO 64-19,1 | 86531214 | White | 64 | 30.9 | 19.1 | 19.1 – 6.4 | FHW 100mm x 300m | AAO | 500 | ||
| ST-ECO 64-19,1 | 86532214 | Yellow | 64 | 30.9 | 19 | 19 – 6.4 | FHW 100mm x 300m | ABO | 500 | ||
| ST-ECO 64-25,4 | 86531215 | White | 64 | 40.5 | 25.4 | 25.4 – 8.5 | FHW 100mm x 300m | AAP | 300 | ||
| ST-ECO 64-25,4 | 86532215 | Yellow | 64 | 40.5 | 25.4 | 25.4 – 8.5 | FHW 100mm x 300m | ABP | 300 | ||
| ST-ECO 64-38,1 | 86531216 | White | 64 | 60.5 | 38.1 | 38.1 – 12.7 | FHW 100mm x 300m | AAQ | 100 | ||
| ST-ECO 64-38,1 | 86532216 | Yellow | 64 | 60.5 | 38.1 | 38.1 – 12.7 | FHW 100mm x 300m | ABQ | 100 | ||
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRPLASTIKS LABELLING SYSTEMS EN.pdf | 8 Mbytes |
|
| 86532208 86532208 EN_86532210.pdf | 713 Kbytes |
|
