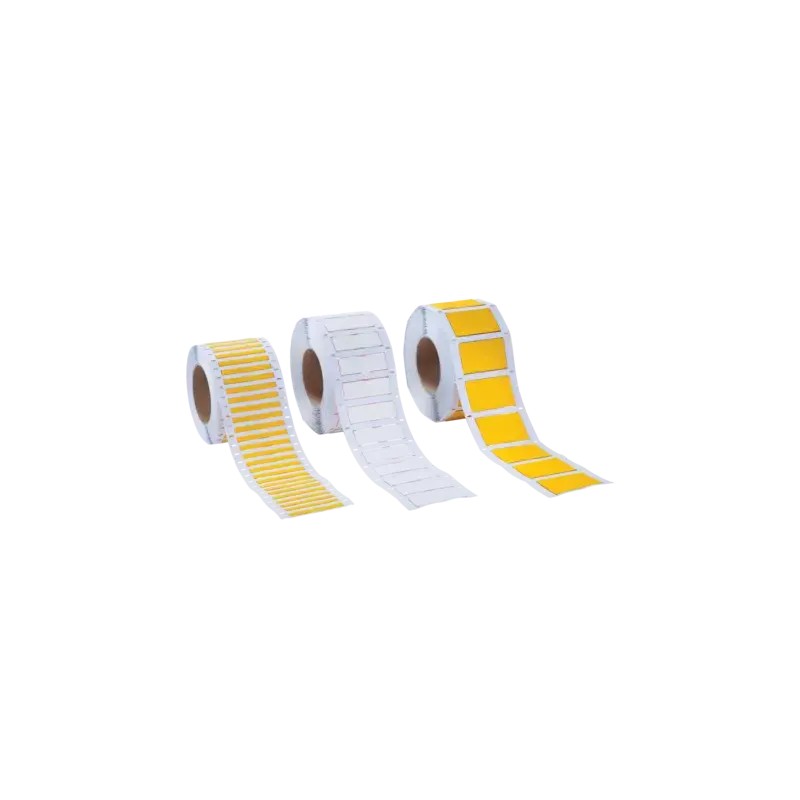

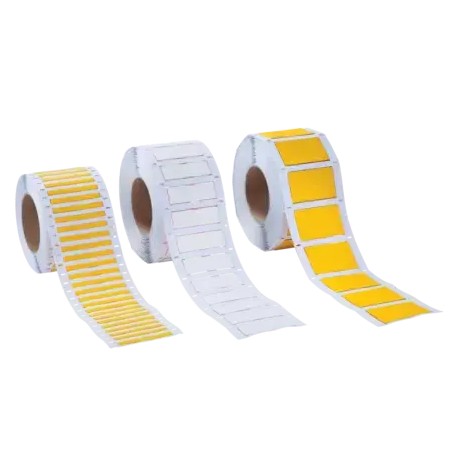

86532003 MURRPLASTIK Labelling ST-BT-H Rail technology, taped Railway technology, taped, marking length 20 m..

Polyolefine (PO) heat-shrink tube, type ST-BT-H

Halogen-free Polyolefine heat-shrink tube for labelling cables with excellent properties for use with the thermal transfer method. This conduit, with its special approvals, is particularly suitable for applications in the fields of air and rail transport, marine, offshore and tunnel construction.

The pre-perforated ST-BT-H 20/12 heat-shrink tube is divided into a 20 mm long section for cable identification and a 12 mm long section, which contains information to simplify wiring the circuits. This section can be discarded after the circuit is wired. This method helps to significantly reduce the processing time

Properties

Excellent printing properties

Flat-rolled for thermal transfer method printing

Halogen-free, thin-walled

Shrink ratio of 2:1 (the recommended shrink range is -20 % of the max. value and +20 % of the min. value)

Vehicle category 1a according to BS 6853 (1999)

Fire resistance ASTM D 635-HB

Shrink temperature >90°C

Application temperature -55°C to +105°C

Standards

ASTM D 635-HB flammability

Boeing BSS 7239, formation of toxic gases during M7 material incineration

Rail standards

EN 45545-2 Tier 3x HL3 (R22)

BS6853 (1999) vehicle category 1a

UNI CEI 11170-3 Tier LR4

DIN 5510-2 Annex C Low Smoke Toxicity

DIN 5510-2 Drip Class ST2

DIN 5510-2 Smoke Formation Tier SR2
