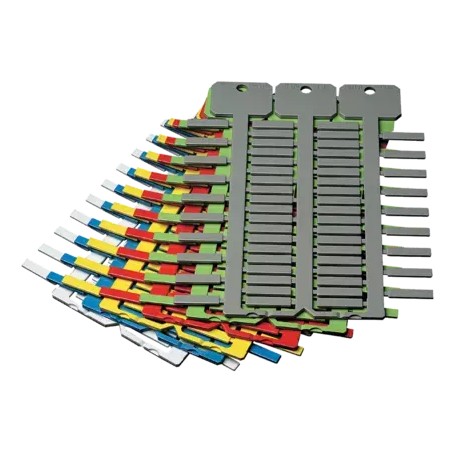

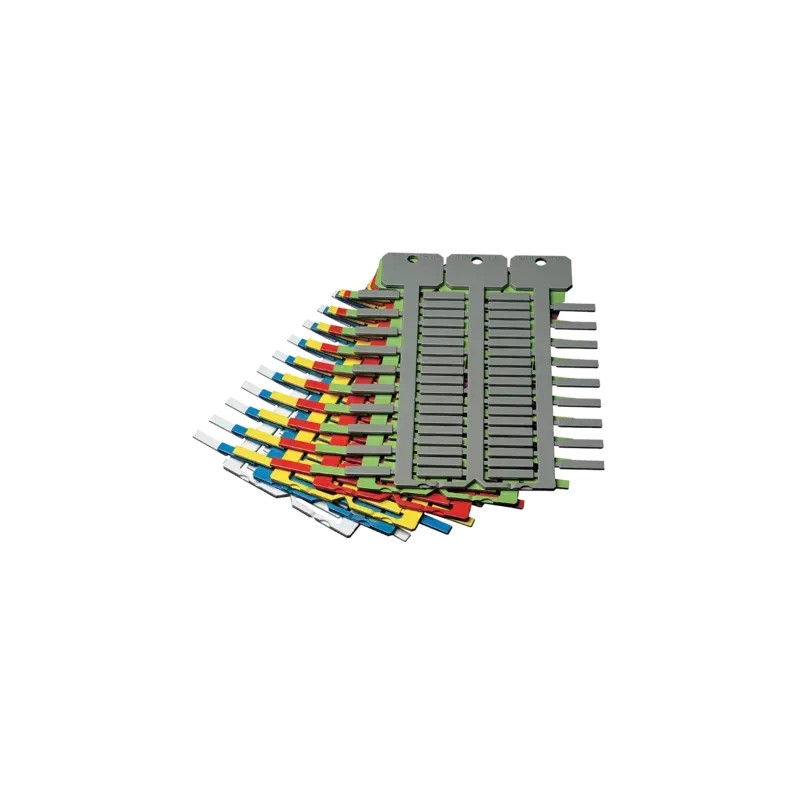

86362038 MURRPLASTIK Labelling KS Label plate (single-line) Label length 18 mm, long mat design Grey
86362038
MURRPLASTIK
1026
Labelling KS Label plate (single-line) Label length 18 mm, long mat design Grey
KS 4/18L Placa de identificación, gr
KS Label plate (single-line)
Marking systems
Brand new product in its original packaging covered by the warranties and certifications provided by MURRPLASTIK
Best sellers
▲More info
▲High-quality, halogen-free, universal label. The KS 4/x label is used with sleeves KT, KTH, KTHQ or holders KM, KMH, KMHQ or KTN on wires, cables, lines or conduits.
Available in various lengths and colours.
The large printable area at the top provides room to reference individual projects.
Only the long mat version labels are to be used with the mp-LM laser series.
Halogen-free
-40°C – 130°C
Polycarbonate (PC)
V0
| Type | Order No. | Colour | RAL equiv. | Label size mm (B x A) | Printable area mm | No. characters/ lines | No. per Frame | Base plate | Software Type | MOQ qty. | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
Label length 12 mm, long mat design (L) | ||||||||||||
| KS 4/12 L | 86362026 | White | 9016 | 4 x 12 | 4 x 12 | 6.0 / 1.0 | 57 | GP3 | 477 | 1026 | ||
| KS 4/12 L | 86362018 | Yellow | 1018 | 4 x 12 | 4 x 12 | 6.0 / 1.0 | 57 | GP3 | 478 | 1026 | ||
| KS 4/12 L | 86362020 | Red | 2012 | 4 x 12 | 4 x 12 | 6.0 / 1.0 | 57 | GP3 | 479 | 1026 | ||
| KS 4/12 L | 86362022 | Green | 6018 | 4 x 12 | 4 x 12 | 6.0 / 1.0 | 57 | GP3 | 480 | 1026 | ||
| KS 4/12 L | 86362024 | Blue | 5012 | 4 x 12 | 4 x 12 | 6.0 / 1.0 | 57 | GP3 | 481 | 1026 | ||
Label length 18 mm, long mat design (L) | ||||||||||||
| KS 4/18 L | 86362036 | White | 9016 | 4 x 18 | 4 x 18 | 10.0 / 1.0 | 57 | GP3 | 472 | 1026 | ||
| KS 4/18 L | 86362028 | Yellow | 1018 | 4 x 18 | 4 x 18 | 10.0 / 1.0 | 57 | GP3 | 473 | 1026 | ||
| KS 4/18 L | 86362030 | Red | 2012 | 4 x 18 | 4 x 18 | 10.0 / 1.0 | 57 | GP3 | 474 | 1026 | ||
| KS 4/18 L | 86362032 | Green | 6018 | 4 x 18 | 4 x 18 | 10.0 / 1.0 | 57 | GP3 | 475 | 1026 | ||
| KS 4/18 L | 86362034 | Blue | 5012 | 4 x 18 | 4 x 18 | 10.0 / 1.0 | 57 | GP3 | 476 | 1026 | ||
| KS 4/18 L | 86362038 | Grey | 7038 | 4 x 18 | 4 x 18 | 10.0 / 1.0 | 57 | GP3 | 562 | 1026 | ||
Label length 23 mm, long mat design (L) | ||||||||||||
| KS 4/23 L | 86362064 | White | 9016 | 4 x 23 | 4 x 23 | 12.0 / 1.0 | 34 | GP3 | 459 | 1020 | ||
| KS 4/23 L | 86362066 | Yellow | 1018 | 4 x 23 | 4 x 23 | 12.0 / 1.0 | 34 | GP3 | 460 | 1020 | ||
| KS 4/23 L | 86362068 | Red | 2012 | 4 x 23 | 4 x 23 | 12.0 / 1.0 | 34 | GP3 | 461 | 1020 | ||
Label length 30 mm, long mat design (L) | ||||||||||||
| KS 4/30 L | 86362042 | White | 9016 | 4 x 30 | 4 x 30 | 16.0 / 1.0 | 34 | GP3 | 462 | 1020 | ||
| KS 4/30 L | 86362046 | Yellow | 1018 | 4 x 30 | 4 x 30 | 16.0 / 1.0 | 34 | GP3 | 463 | 1020 | ||
| KS 4/30 L | 86362040 | Red | 2012 | 4 x 30 | 4 x 30 | 16.0 / 1.0 | 34 | GP3 | 464 | 1020 | ||
| KS 4/30 L | 86362044 | Green | 6018 | 4 x 30 | 4 x 30 | 16.0 / 1.0 | 34 | GP3 | 465 | 1020 | ||
| KS 4/30 L | 86362045 | Blue | 5012 | 4 x 30 | 4 x 30 | 16.0 / 1.0 | 34 | GP3 | 466 | 1020 | ||
Label length 10 mm, 4-line mat design (4ST) | ||||||||||||
| KS 4/10 4ST | 86361084 | White | 9016 | 4 x 10 | 4 x 10 | 5.0 / 1.0 | 64 | GP4 | A86 | 1024 | ||
Label length 12 mm, 4-line mat design (4ST) | ||||||||||||
| KS 4/12 4ST | 86361086 | White | 9016 | 4 x 12 | 4 x 12 | 6.0 / 1.0 | 64 | GP4 | A87 | 1024 | ||
| KS 4/12 4ST | 86361087 | Yellow | 1018 | 4 x 12 | 4 x 12 | 6.0 / 1.0 | 64 | GP4 | 430 | 1024 | ||
Label length 12 mm, high packaging density (ST) | ||||||||||||
| KS 4/12 ST | 86361072 | White | 9016 | 4 x 12 | 4 x 12 | 6.0 / 1.0 | 72 | GP3 | 6ST | 1296 | ||
| KS 4/12 ST | 86361073 | Yellow | 1018 | 4 x 12 | 4 x 12 | 6.0 / 1.0 | 72 | GP3 | 7ST | 1296 | ||
| KS 4/12 ST | 86361074 | Red | 2012 | 4 x 12 | 4 x 12 | 6.0 / 1.0 | 72 | GP3 | 8ST | 1296 | ||
Label length 12 mm, levelled foot (AF) | ||||||||||||
| KS 4/12-AF | 86361027 | White | 9016 | 4 x 12 | 4 x 12 | 6.0 / 1.0 | 57 | GP3 | 6AF | 1026 | ||
Label length 15 mm, 4-line mat design (4ST) | ||||||||||||
| KS 4/15 4ST | 86361088 | White | 9016 | 4 x 15 | 4 x 15 | 8.0 / 1.0 | 64 | GP4 | A88 | 1024 | ||
Label length 18 mm, high packaging density (ST) | ||||||||||||
| KS 4/18 ST | 86361080 | White | 9016 | 4 x 18 | 4 x 18 | 10.0 / 1.0 | 72 | GP3 | 1ST | 1296 | ||
| KS 4/18 ST | 86361081 | Yellow | 1018 | 4 x 18 | 4 x 18 | 10.0 / 1.0 | 72 | GP3 | 2ST | 1296 | ||
| KS 4/18 ST | 86361082 | Red | 2012 | 4 x 18 | 4 x 18 | 10.0 / 1.0 | 72 | GP3 | 3ST | 1296 | ||
Label length 18 mm, levelled foot (AF) | ||||||||||||
| KS 4/18-AF | 86361037 | White | 9016 | 4 x 18 | 4 x 18 | 10.0 / 1.0 | 57 | GP3 | 5AF | 1026 | ||
Label length 12 mm | ||||||||||||
| KS 4/12 | 86361019 | Orange | 2011 | 4 x 12 | 4 x 12 | 6.0 / 1.0 | 57 | GP3 | 6O | 1026 | ||
Label length 18 mm | ||||||||||||
| KS 4/18 | 86361033 | Orange | 2011 | 4 x 18 | 4 x 18 | 10.0 / 1.0 | 57 | GP3 | 1O | 1026 | ||
| KS 4/18 | 86361035 | Brown | 8003 | 4 x 18 | 4 x 18 | 10.0 / 1.0 | 57 | GP3 | 1B | 1026 | ||
| KS 4/18 | 86361029 | Purple | 4005 | 4 x 18 | 4 x 18 | 10.0 / 1.0 | 57 | GP3 | 1L | 1026 | ||
| KS 4/18 | 86361031 | Pink | 4010 | 4 x 18 | 4 x 18 | 10.0 / 1.0 | 57 | GP3 | 1R | 1026 | ||
Label length 30 mm | ||||||||||||
| KS 4/30 PE | 86361043 | Green / Yellow | 4 x 30 | 4 x 30 | 16.0 / 1.0 | 34 | GP3 | 15P | 1020 | |||
