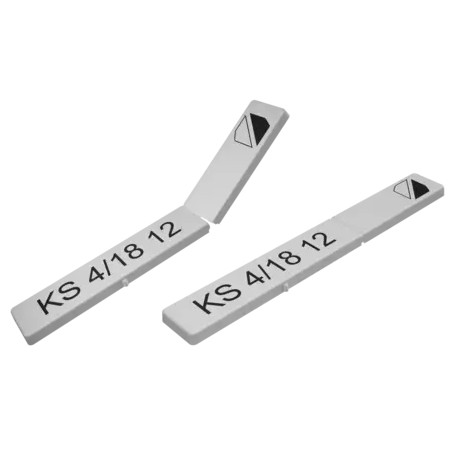

86361071 MURRPLASTIK Labelling KS label plate (single-line/divisible) Label length 70 mm (divided at 30/40/5..
86361071
MURRPLASTIK
324
Labelling KS label plate (single-line/divisible) Label length 70 mm (divided at 30/40/50/60 mm) Yellow
KS 4/30-70 Placa de identificación, ge
KS label plate (single-line/divisible)
Marking systems
Brand new product in its original packaging covered by the warranties and certifications provided by MURRPLASTIK
Best sellers
▲More info

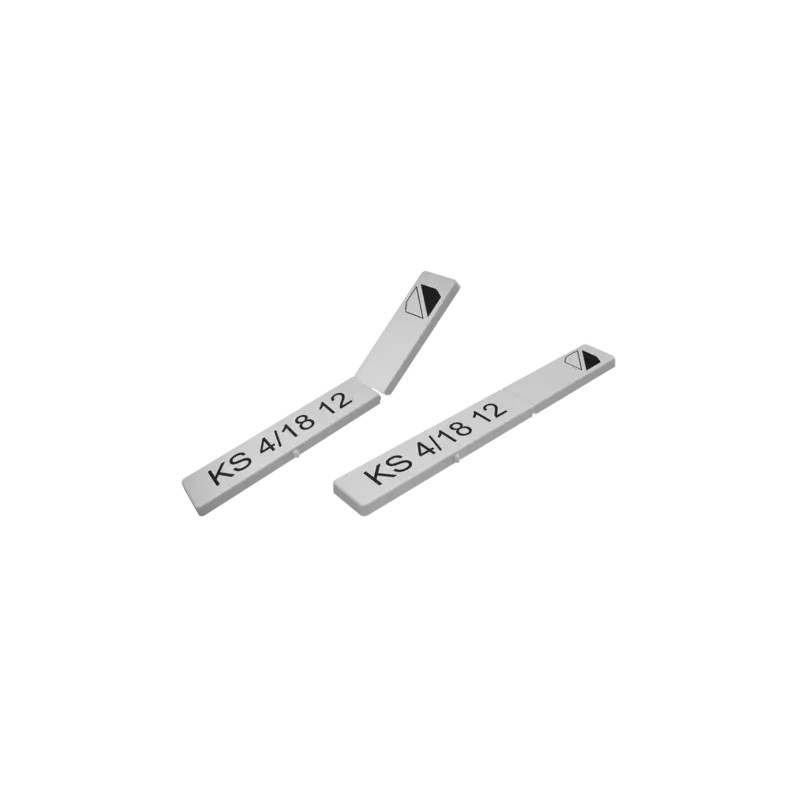

▲High-quality, halogen-free, separable label. The KS 4/x label is used with sleeves KT, KTH, KTHQ or holders KM, KMH, KMHQ or KTN on wires, cables, lines or conduits.
Available in different colours.
The KS 4/18-12 has a detachable section, where the necessary connection information can be stored.
The KS 4/30-70 can be cut to length in steps of 10 mm for labels of 30 mm length or longer.
Only the long mat version labels are to be used with the mp-LM laser series.
Halogen-free
-40°C – 130°C
Polycarbonate (PC)
V0
| Type | Order No. | Colour | RAL equiv. | Label size mm (B x A) | Printable area mm | No. characters/ lines | No. per Frame | Base plate | Software Type | MOQ qty. | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
Label length 30 mm (divided at 18 mm) | ||||||||||||
| KS 4/18-12 | 86361048 | White | 9016 | 4 x 30 | 4 x 30 | 16.0 / 1.0 | 34 | GP3 | 15A | 1020 | ||
| KS 4/18-12 | 86361050 | Yellow | 1018 | 4 x 30 | 4 x 30 | 16.0 / 1.0 | 34 | GP3 | 17A | 1020 | ||
| KS 4/18-12 | 86361054 | Green | 6018 | 4 x 30 | 4 x 30 | 16.0 / 1.0 | 34 | GP3 | 18A | 1020 | ||
| KS 4/18-12 | 86361052 | Red | 2012 | 4 x 30 | 4 x 30 | 16.0 / 1.0 | 34 | GP3 | 17A | 1020 | ||
| KS 4/18-12 | 86361056 | Blue | 5012 | 4 x 30 | 4 x 30 | 16.0 / 1.0 | 34 | GP3 | 18A | 1020 | ||
| KS 4/18-12 | 86361058 | Grey | 7038 | 4 x 30 | 4 x 30 | 16.0 / 1.0 | 34 | GP3 | 20A | 1020 | ||
Label length 30 mm (divided at 18 mm), long mat design | ||||||||||||
| KS 4/18-12 L | 86362048 | White | 9016 | 4 x 30 | 4 x 30 | 16.0 / 1.0 | 34 | GP3 | 467 | 1020 | ||
| KS 4/18-12 L | 86362050 | Yellow | 1018 | 4 x 30 | 4 x 30 | 16.0 / 1.0 | 34 | GP3 | 468 | 1020 | ||
| KS 4/18-12 L | 86362054 | Green | 6018 | 4 x 30 | 4 x 30 | 16.0 / 1.0 | 34 | GP3 | 470 | 1020 | ||
| KS 4/18-12 L | 86362052 | Red | 2012 | 4 x 30 | 4 x 30 | 16.0 / 1.0 | 34 | GP3 | 469 | 1020 | ||
| KS 4/18-12 L | 86362056 | Blue | 5012 | 4 x 30 | 4 x 30 | 16.0 / 1.0 | 34 | GP3 | 471 | 1020 | ||
Label length 70 mm (divided at 30/40/50/60 mm) | ||||||||||||
| KS 4/30-70 | 86361070 | White | 9016 | 4 x 70 | 4 x 70 | 38.0 / 1.0 | 18 | GP3 | 1U | 324 | ||
| KS 4/30-70 | 86361071 | Yellow | 1018 | 4 x 70 | 4 x 70 | 38.0 / 1.0 | 18 | GP3 | 1U5 | 324 | ||
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRPLASTIKS LABELLING SYSTEMS EN.pdf | 8 Mbytes |
|
| 86361071 86361071 EN_86361071.pdf | 1 Mbytes |
|
