> >>86131461 MURRPLASTIK Labelling Idents BK 30 Upper case letters Yellow y
Previous Product Next Product

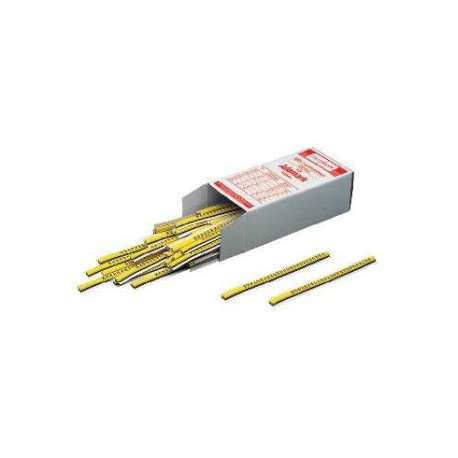

86131461 MURRPLASTIK Labelling Idents BK 30 Upper case letters Yellow y View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

86131461 MURRPLASTIK Labelling Idents BK 30 Upper case letters Yellow y

86131461

MURRPLASTIK

1000

Labelling Idents BK 30 Upper case letters Yellow y

More details


Marking systems

* Brand new product in its original packaging covered by the warranties and certifications provided by MURRPLASTIK

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

If our price is not the best, please ask us for a quote. Ask for a quotation

More info

▲

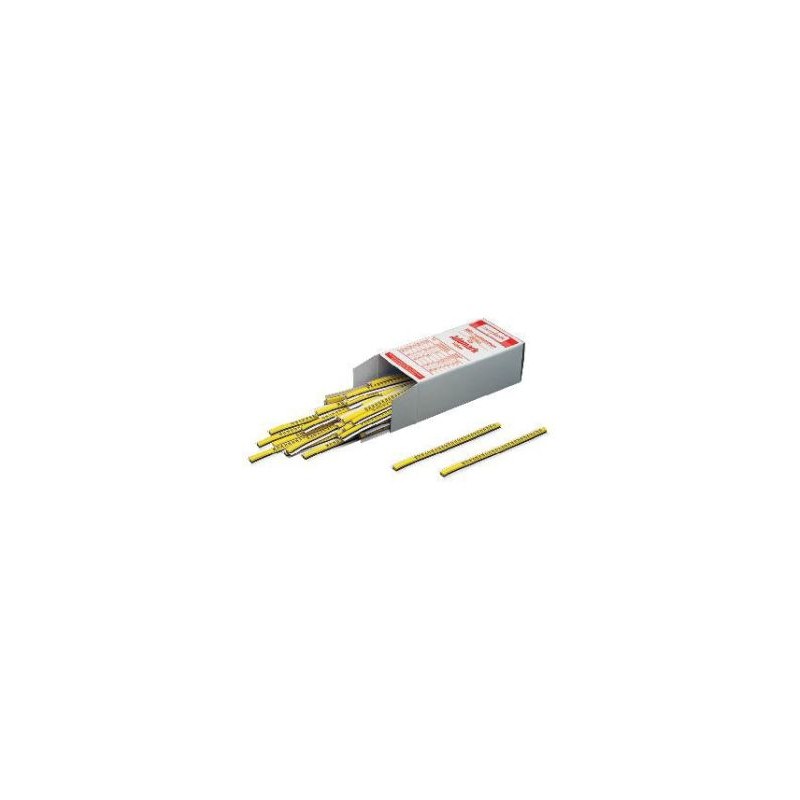

Pre-inscribed murr-fix idents made from special PVC. The individual labels come on plastic strips, each containing 20 labels.

BK 30: Label width 3.0 mm (A); Label height 4.0 mm (B)

Font width 2.0 mm; font height 3.5 mm; black lettering

Suitable for KT*-, KTH*- and KTH/Q* sleeves,as well as KM*-, KKM*-, KMH*-, KMH/Q*- and KTN* label holders.

Recommended tools to process idents (mounting frames, metal tab, metal hook) are listed in "Accessories".

-30°C – 80°C

Polyvinyl chloride (PVC)

V0

Type Order No. Colour Pack qty.

Upper case letters

A 86131411 Yellow 1000
B 86131412 Yellow 1000
C 86131413 Yellow 1000
D 86131414 Yellow 1000
E 86131415 Yellow 1000
s 86131416 Yellow 1000
G 86131417 Yellow 1000
H 86131418 Yellow 1000
I 86131419 Yellow 1000
J 86131420 Yellow 1000
K 86131421 Yellow 1000
L 86131422 Yellow 1000
M 86131423 Yellow 1000
N 86131424 Yellow 1000
O 86131425 Yellow 1000
P 86131426 Yellow 1000
Q 86131427 Yellow 1000
R 86131428 Yellow 1000
S 86131429 Yellow 1000
T 86131430 Yellow 1000
U 86131431 Yellow 1000
V 86131432 Yellow 1000
W 86131433 Yellow 1000
X 86131434 Yellow 1000
Y 86131435 Yellow 1000
Z 86131436 Yellow 1000

Lower case letters

a 86131437 Yellow 1000
b 86131438 Yellow 1000
c 86131439 Yellow 1000
d 86131440 Yellow 1000
e 86131441 Yellow 1000
f 86131442 Yellow 1000
g 86131443 Yellow 1000
h 86131444 Yellow 1000
i 86131445 Yellow 1000
j 86131446 Yellow 1000
k 86131447 Yellow 1000
l 86131448 Yellow 1000
m 86131449 Yellow 1000
n 86131450 Yellow 1000
o 86131451 Yellow 1000
p 86131452 Yellow 1000
q 86131453 Yellow 1000
r 86131454 Yellow 1000
s 86131455 Yellow 1000
t 86131456 Yellow 1000
u 86131457 Yellow 1000
v 86131458 Yellow 1000
w 86131459 Yellow 1000
x 86131460 Yellow 1000
y 86131461 Yellow 1000
z 86131462 Yellow 1000

Numbers

1 86131610 Yellow 1000
2 86131611 Yellow 1000
3 86131612 Yellow 1000
4 86131613 Yellow 1000
5 86131614 Yellow 1000
6 86131615 Yellow 1000
7 86131616 Yellow 1000
8 86131617 Yellow 1000
9 86131618 Yellow 1000

Signs

+ 86131463 Yellow 1000
- 86131464 Yellow 1000
/ 86131465 Yellow 1000
= 86131466 Yellow 1000
. 86131467 Yellow 1000
* 86131468 Yellow 1000
: 86131469 Yellow 1000

Special characters

Left arrow 86131470 Yellow 1000
Right arrow 86131471 Yellow 1000
AC voltage 86131472 Yellow 1000
Earthing symbol 86131473 Yellow 1000
Star connection 86131474 Yellow 1000
Delta connection 86131475 Yellow 1000

Blank space

Blank 86131476 Yellow 1000

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOG MURRPLASTIKS LABELLING SYSTEMS EN.pdf 8 Mbytes
