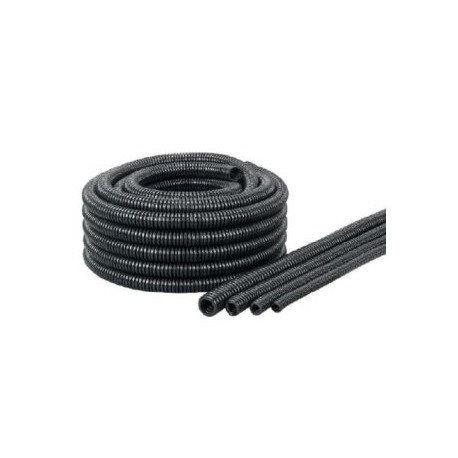

83121278 MURRPLASTIK Type EWX-HY (high corrugation) High corrugation
83121278
MURRPLASTIK
25
Type EWX-HY (high corrugation) High corrugation
EWX-HY 56 Murrflex Jumbo, sw
Type EWX-HY (high corrugation)
Corrugated pipes and fittings
* Brand new product in its original packaging covered by the warranties and certifications provided by MURRPLASTIK
Best sellers
▲More info
▲The EWX-HY cable protection conduits are made of specially modified thermoplastic elastomer. The material is halogen, phosphor and cadmium-free and is also heat and hydrolysis stabilised.
The EWX-HY cable protection conduits are characterised by outstanding flexibility, flexural fatigue strength and good crush resistance. With its excellent flexural fatigue strength, this product is ideal for use in handling systems and robotics engineering.
For dynamic applications involving low to medium mechanical loads.
Halogen-free
UV-resistant
-45°C – 160°C, short term 180°C
acc. to UL94 HB
ROBI approval
| Type | Order No. | Colour | A Ø mm | B Ø mm | R stat. mm | R dyn. mm | Weight kg/100m | MOQ m | ||
|---|---|---|---|---|---|---|---|---|---|---|
High corrugation | ||||||||||
| EWX-HY-M25/P21 | 83121258 | Black | 18.6 | 27.8 | 49 | 104 | 13.0 | 50 | ||
| EWX-HY-M32/P29 | 83121260 | Black | 23 | 34.2 | 57 | 117 | 17.5 | 25 | ||
| EWX-HY-M40/P36 | 83121262 | Black | 28.9 | 42.3 | 71 | 146 | 28.0 | 25 | ||
| EWX-HY-M50/P48 | 83121264 | Black | 36.8 | 53.7 | 87 | 167 | 30.4 | 25 | ||
| EWX-HY-56 Jumbo | 83121278 | Black | 53 | 67.8 | 95 | 220 | 45.0 | 25 | ||
| EWX-HY-70 Jumbo | 83121280 | Black | 64.4 | 80.5 | 140 | 330 | 63.0 | 25 | ||
| EWX-HY-95 Jumbo | 83121282 | Black | 91 | 105.5 | 150 | 400 | 89.0 | 10 | ||
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRPLASTIKS CONDUIT AND FITTING SYSTEMS EN.pdf | 10 Mbytes |
|
| 83121278 83121278 EN_83121278.pdf | 1 Mbytes |
|
