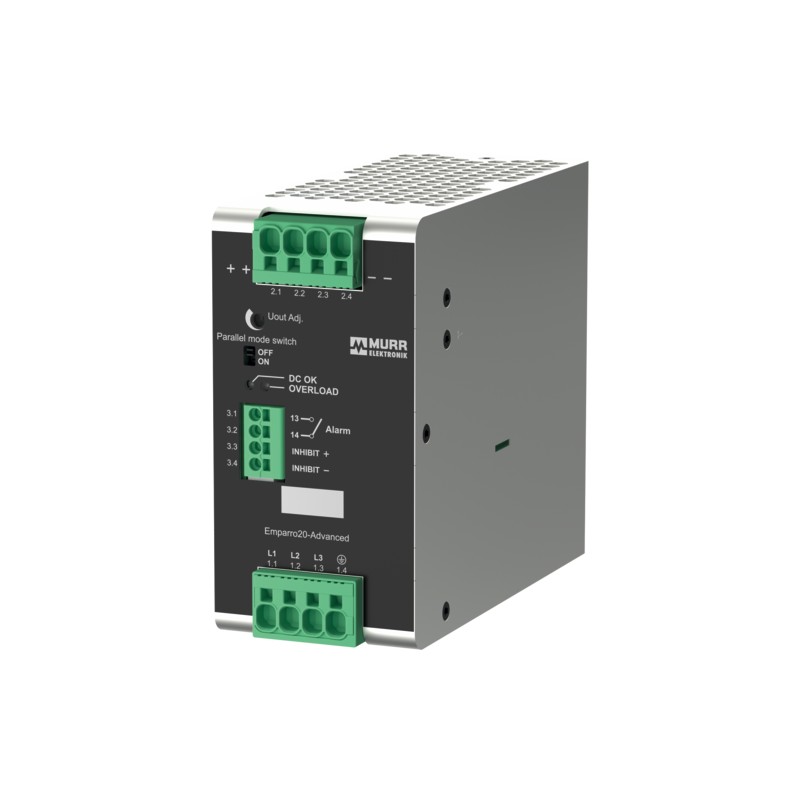

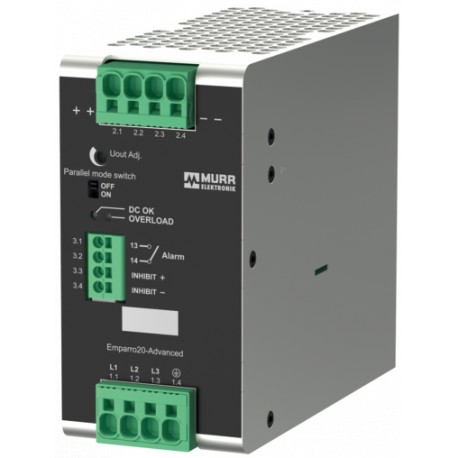

9000-17333-1221110 MURRELEKTRONIK Power Supply Emparro20-Advanced-3-phase
9000-17333-1221110
MURRELEKTRONIK
Power Supply Emparro20-Advanced-3-phase
Power supplies
Brand new product in its original packaging covered by the warranties and certifications provided by MURRELEKTRONIK
Best sellers
▲More info
▲| Art.No.: | 9000-17333-1221110 |
| Weight: | 1.05 kg |
| Country of origin: | MY |
Technical Data
| Number of devices parallel connection max. | 3 |
|---|---|
| Number of devices series connection max. | 20 |
| Parallel connection | yes |
| Series connection | yes |
| Security level | SELV/PELV |
| Power frequency | 50/60 Hz |
|---|
| Input voltage 1 AC | 400 V |
|---|---|
| Input voltage 2 AC | 500 V |
| Input voltage AC min. | 342 V |
| Input voltage AC max. | 575 V |
| Input current at input voltage 1 AC | 0,8 A |
| Input current at input voltage 2 AC | 0,65 A |
| Phase number input | 3 |
| Efficiency | 95,3 % @ 400 V AC, 95,1 % @ 500 V AC |
| Duration Power Boost max. | 5 s |
|---|---|
| Output rating | 480 W |
| Output voltage DC | 48 V |
| Output voltage DC min. | 45 V |
| Output voltage DC max. | 56 V |
| Output current | 10,6 A |
| Output current min. | 8,6 A |
| Output current max. | 10,6 A |
| Mains failure bridging time | 25 ms |
| Power Boost | 150 % |
| Ripple (s-s) max. | 50 mV |
| Spikes (s-s) max. | 120 mV |
| Alarm contact | yes |
|---|
| Connection | Push-In spring clamp terminals |
|---|
| Installation height max. ASL | 3000 m |
|---|---|
| Degree of protection (EN IEC 60529) | IP20 |
| Protection class (EN IEC 61140) | I |
| Overload protection output | yes |
| Invers-polarity protection | no |
| Pollution Degree | 2 |
| Short-circuit protection output | yes |
| Overtemperature protection output | yes |
| Cooling type | Natural convection |
|---|---|
| Shock resistance (EN IEC 60068-2-27) | 30 g, 11 ms 3 x (X-, Y-, Z-axis) |
| Vibration resistance (EN IEC 60068-2-6) | 2 g (10 ... 500 Hz), 1 h / direction (X-, Y-, Z-axis) |
| Combustibility class housing (UL94) | V-0 |
|---|---|
| Conformal coated PCB | no |
| Material housing | Aluminium |
| Net weight | 1050 g |
|---|---|
| Mounting method | geschnappt |
| Suitable for mounting type | Tragschiene TH35-7.5/TH35-15 |
| mounting position | horizontal, vertical |
| Height | 135,7 mm |
| Width | 65 mm |
| Depth | 159,3 mm |
| Ambient temperature min. | -25 °C |
|---|---|
| Ambient temperature max. | 70 °C |
| Storage temperature min. | -40 °C |
| Storage temperature max. | 85 °C |
| Relative humidity max. (operation) | 95 % no condensation |
| REACH | (EC) No 1907/2006 |
|---|---|
| REACH-SVHC | compliant |
| RoHS | 2011/65/EU |
| China RoHS | compliant | EPUP 25 |
| WEEE | compliant |
| Halogen-free-Material | JEDEC JS709A |
| Pb-free-Material | JESD97 |
| CE | 2014/30/EU |
|---|
| UL | E200364 |
|---|---|
| ULc | E200364 |
| SEMI F47 | compliant |
