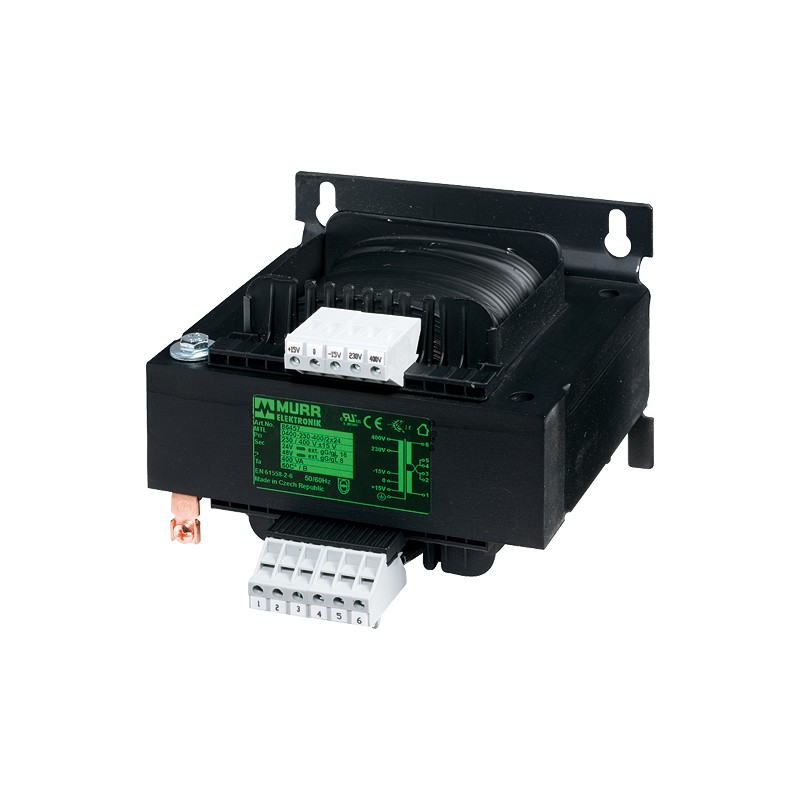

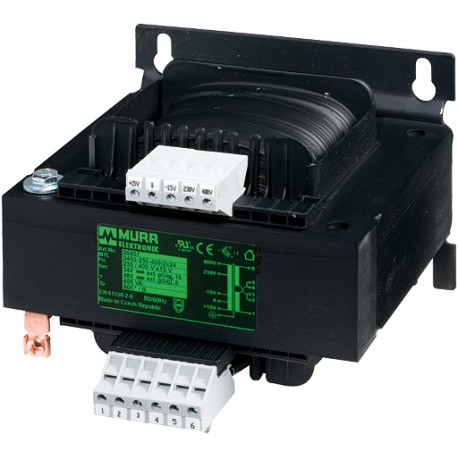

866166 MURRELEKTRONIK MST single-phase control and isolation transformer P:3000VA IN:400VAC OUT:230VAC
866166
MURRELEKTRONIK
10
MST single-phase control and isolation transformer P:3000VA IN:400VAC OUT:230VAC
MST SINGLE-PHASE CONTROL AND ISOLATION TRANSFORMERP:3000VA IN:400VAC OUT:230VAC
MST SINGLE-PHASE CONTROL AND ISOLATION TRANSFORMER
Transformers
Brand new product in its original packaging covered by the warranties and certifications provided by MURRELEKTRONIK
Best sellers
▲More info
▲3000 VA
Isolation class T 40/B
Motor protection switch
| Standards | EN 61558-1, EN 61558-2-4, EN 62041 category 0 |
|---|---|
| Test isolation voltage | 4.6 kV |
| Mounting method | Long-hole mounting |
| Dimensions H×W×D | 190×195×275 mm |
| Fixing centers a×b×c | 125.7×150×10 mm |
| Drill hole Ø | 10×18 mm |
| Temperature range | -20...+40 °C (storage temperature -40...+80 °C) |
| Output voltage | 230 V AC |
|---|---|
| Output rating | 3000 VA |
| Input voltage | 400 V AC |
|---|---|
| Input current | 8.1 A (400 V AC) |
| Inrush current | 109 A (400 V AC) |
| Short-circuit current | 303 A (400 V AC) |
| Frequency | 50...60 Hz |
| country of origin | CZ |
|---|---|
| customs tariff number | 85043200 |
| EAN | 4048879330626 |
| eClass | 27031202 |
| Packaging unit | 1 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRELEKTRONIK EN.pdf | 36 Mbytes |
|
| 866166 866166 EN_866166.pdf | 132 Kbytes |
|
