> MURRELEKTRONIK>Transformers>866164 MURRELEKTRONIK MET single-phase control and isolation transformer P:2000VA IN:400VAC±5% OUT:230VAC
Previous Product Next Product

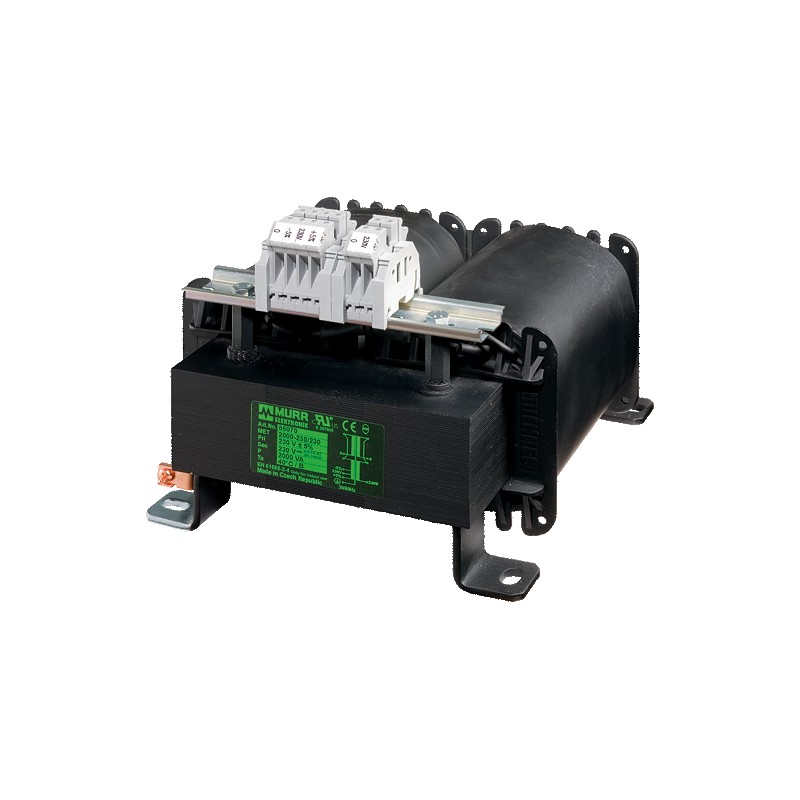

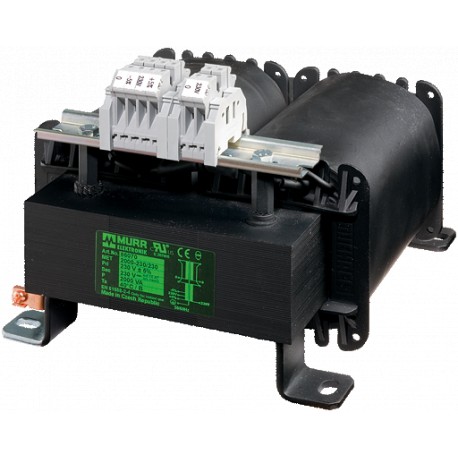

866164 MURRELEKTRONIK MET single-phase control and isolation transformer P:2000VA IN:400VAC±5% OUT:230VAC View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

866164 MURRELEKTRONIK MET single-phase control and isolation transformer P:2000VA IN:400VAC±5% OUT:230VAC

866164

MURRELEKTRONIK

10

MET single-phase control and isolation transformer P:2000VA IN:400VAC±5% OUT:230VAC

MET SINGLE-PHASE CONTROL AND ISOLATION TRANSFORMER

More details


Transformers

* Brand new product in its original packaging covered by the warranties and certifications provided by MURRELEKTRONIK

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Single-phase - Control and Isolation Transformers
2000 VA
Isolation class T 40/B
Varnished board
General data
StandardsEN 61558-1, EN 61558-2-4, EN 62041 category 0
Test isolation voltage4 kV (prim./sec.)
Dimensions H×W×D170×197×250 mm
Fixing centers a×b×c200×174×9 mm
Drill hole Ø9×14 mm
Mounting methodLong-hole mounting
Temperature range-20...+40 °C (storage temperature -40...+80 °C)
Output
Output voltage230 V AC
Output rating2000 VA
Input
Input voltage400 V AC ±5%
Frequency50...60 Hz
Input current5.1 A (400 V AC)
Inrush current76 A (400 V AC)
Short-circuit current182 A (400 V AC)
Commercial data
country of originCZ
customs tariff number85043200
EAN4048879301527
eClass27031202
Packaging unit1

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOG MURRELEKTRONIK EN.pdf 19 Mbytes
866164 866164 EN_866164.pdf 117 Kbytes 866164 866164 EN_866164.pdf
