> MURRELEKTRONIK>Transformers>866142 MURRELEKTRONIK MET single-phase control and isolation transformer P:2000VA IN:400VAC±5% OUT:110VAC
Previous Product Next Product

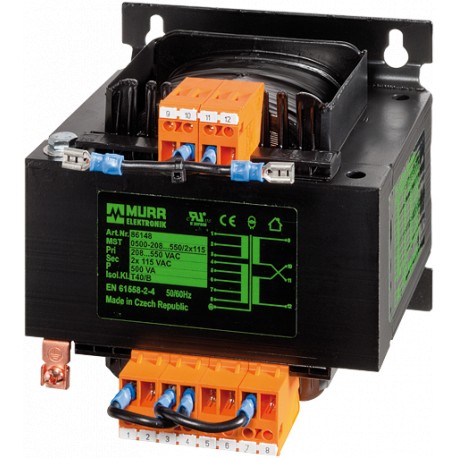

866142 MURRELEKTRONIK MET single-phase control and isolation transformer P:2000VA IN:400VAC±5% OUT:110VAC View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

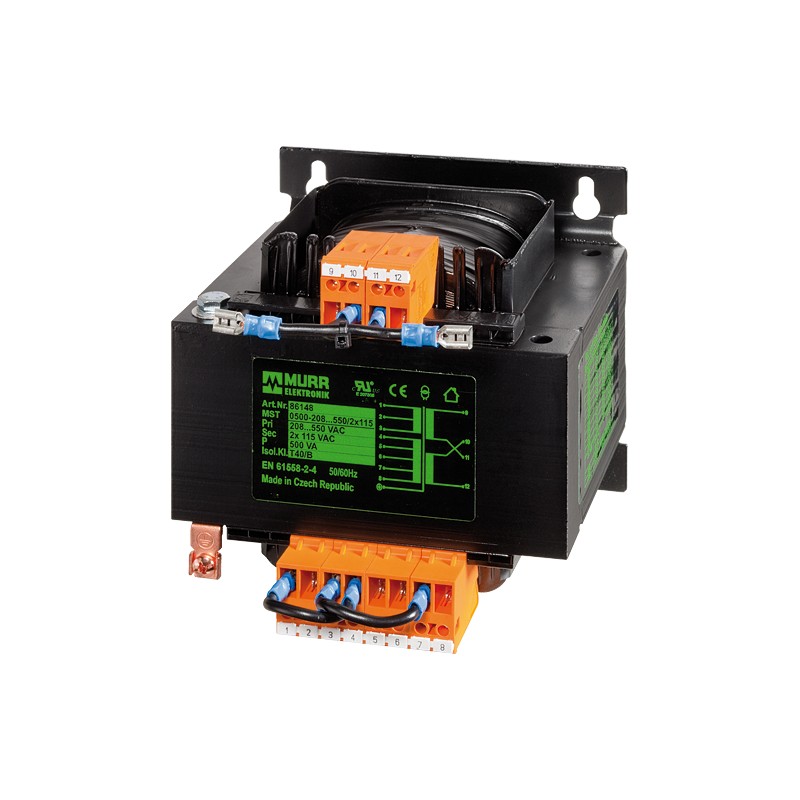

866142 MURRELEKTRONIK MET single-phase control and isolation transformer P:2000VA IN:400VAC±5% OUT:110VAC

866142

MURRELEKTRONIK

MET single-phase control and isolation transformer P:2000VA IN:400VAC±5% OUT:110VAC

MET SINGLE-PHASE CONTROL AND ISOLATION TRANSFORMER P:2000VA IN:400VAC±5% OUT:110VAC

MET SINGLE-PHASE CONTROL AND ISOLATION TRANSFORMER

More details


Transformers

* Brand new product in its original packaging covered by the warranties and certifications provided by MURRELEKTRONIK

Total price: $443.35
Unit price: $443.35

Quantity Price
1+$443.35
2+$443.35
*This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Single-phase - Control and Isolation Transformers
2000 VA
Isolation class T 40/B
General data
StandardsEN 61558-1, EN 61558-2-4, EN 62041 category 0
Test isolation voltage5.1 kV (prim./sec.)
Fixing centers a×b×c200×174×9 mm
Dimensions H×W×D170×195×250 mm
Drill hole Ø9×14 mm
Mounting methodscrew fixing
Temperature range-20...+40 °C (storage temperature -40...+80 °C)
Output
Output voltage110 V AC
Output rating2000 VA
Input
Input voltage400 V AC ±5%
Input current5.3 A (400 V AC)
Inrush current94 A (400 V AC)
Short-circuit current195 A (400 V AC)
Frequency50...60 Hz
Commercial data
country of originCZ
customs tariff number85043200
EAN4048879073851
eClass27031202
Packaging unit1

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOG MURRELEKTRONIK EN.pdf 19 Mbytes
866142 866142 EN_866142.pdf 156 Kbytes 866142 866142 EN_866142.pdf
Download general catalog Download general catalog
