86471
MURRELEKTRONIK
1

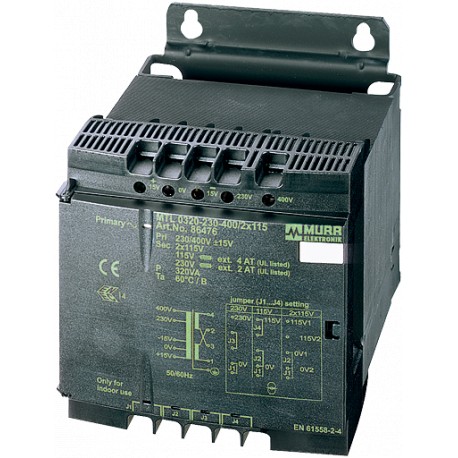

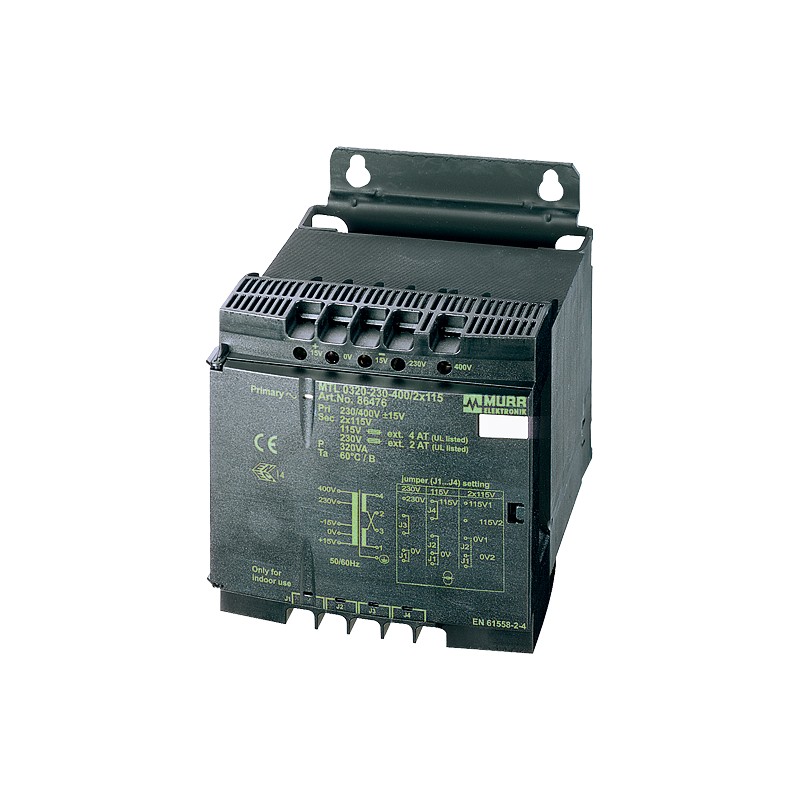

MTL single-phase control and isolation transformer P: 40VA IN: 230/400VAC +/- 15VAC OUT: 2x115VAC
Transformers
* Brand new product in its original packaging covered by the warranties and certifications provided by MURRELEKTRONIK
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Art.No.: | 86471 |
Weight: | 1.44 kg |
Input voltage | 230/400 ±15 V AC |
---|---|
Frequency | 50...60 Hz |
Input current | 0.27 A (230 V AC); 0.15 A (400 V AC) |
Inrush current | 3 A (230 V AC); 1.73 A (400 V AC) |
Short-circuit current | 3.57 A (230 V AC); 2.06 A (400 V AC) |
LED display | LED (green) for input voltage |
---|
Test isolation voltage | 4 kV (prim./sec.) |
---|---|
Standards | EN 61558-1, EN 61558-2-4, EN 62041 category 0 |
Drill hole Ø | 5.5×9 mm |
Mounting method | DIN-rail mountable TH35-15 (EN 60715) or for key-hole mounting |
Fixing centers a × b × c | 96×60×5.5 mm |
Dimensions H × W × D | 108×87×104 mm |
Temperature range | -20...+60 °C, no condensation |
Output voltage | 1 × 230, 1 × 115, 2 × 115 V AC |
---|---|
Output rating | 40 VA |
country of origin | CZ |
---|---|
customs tariff number | 85043180 |
EAN | 4048879078221 |
eClass | 27031302 |
Packaging unit | 1 |
Title: | Size: | Type: |
---|---|---|
PDF CATALOG MURRELEKTRONIK EN.pdf | 19 Mbytes | |
86471 86471 86471_Data_Sheet_1.pdf | 159 Kbytes | |
Download general catalog |
