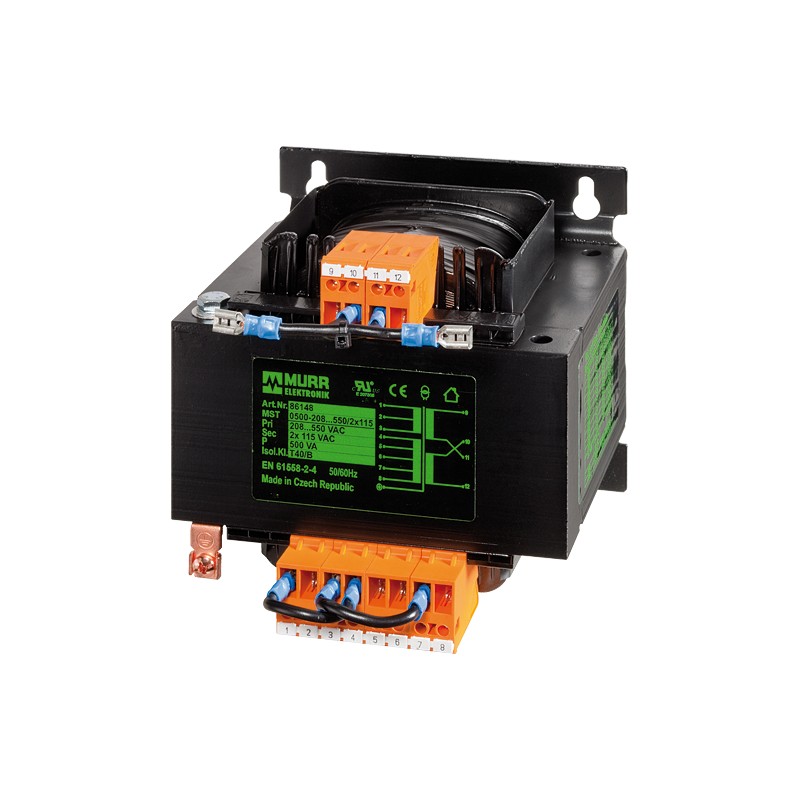

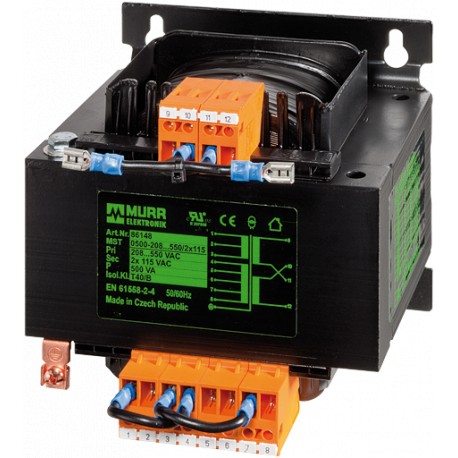

86155 MURRELEKTRONIK MST single-phase control and isolation transformer P: 3000VA IN: 208...550VAC OUT: 2x11..
86155
MURRELEKTRONIK
MST single-phase control and isolation transformer P: 3000VA IN: 208...550VAC OUT: 2x115VAC
MST 1-PHASE CONTROL AND ISOLATION TRANSFORMER P: 3000VA IN: 208...550VAC OUT: 2x115VAC
MST 1-PHASE CONTROL AND ISOLATION TRANSFORMER
Transformers
* Brand new product in its original packaging covered by the warranties and certifications provided by MURRELEKTRONIK
Best sellers
▲More info
▲3000 VA
Isolation class T 40/B
Other voltages on request.
| Standards | EN 61558-1, EN 61558-2-4, EN 62041 category 0 |
|---|---|
| Test isolation voltage | 4 kV (prim./sec.) |
| Mounting method | Long-hole mounting |
| Dimensions H×W×D | 250×197×193 mm |
| Fixing centers a×b×c | 200×174 mm |
| Drill hole Ø | 9×14 mm |
| Temperature range | -20...+40 °C (storage temperature -40...+80 °C) |
| Output voltage | 1× 230, 1× 115, 2× 115 V AC |
|---|---|
| Output rating | 3000 VA |
| Input voltage | 208, 230, 380, 400, 420, 440, 460, 480, 500, 525, 550 V AC |
|---|---|
| Input current | 14.9 A (208 V AC); 5.6 A (550 V AC) |
| Inrush current | 273 A (208 V AC); 104 A (550 V AC) |
| Short-circuit current | 553 A (208 V AC); 209 A (550 V AC) |
| Frequency | 50...60 Hz |
| country of origin | CZ |
|---|---|
| customs tariff number | 85043200 |
| EAN | 4048879444750 |
| eClass | 27031302 |
| Packaging unit | 1 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRELEKTRONIK EN.pdf | 19 Mbytes |
|
| 86155 86155 EN_86155.pdf | 160 Kbytes |
|
