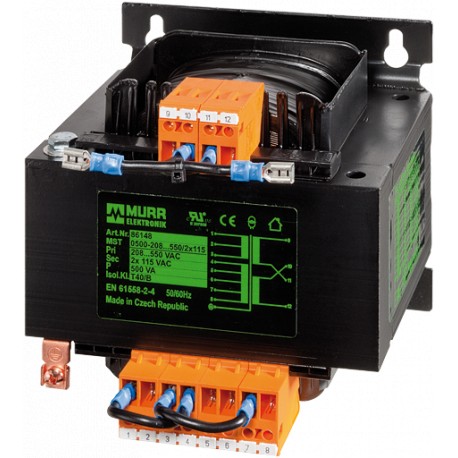

86151 MURRELEKTRONIK MST single-phase control and isolation transformer P: 1000VA IN: 208...550VAC OUT: 2x11.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

86151 MURRELEKTRONIK MST single-phase control and isolation transformer P: 1000VA IN: 208...550VAC OUT: 2x11..

86151

MURRELEKTRONIK

MST single-phase control and isolation transformer P: 1000VA IN: 208...550VAC OUT: 2x115VAC

MST 1-PHASE CONTROL AND ISOLATION TRANSFORMER P: 1000VA IN: 208...550VAC OUT: 2x115VAC

MST 1-PHASE CONTROL AND ISOLATION TRANSFORMER

More details


Transformers

* Brand new product in its original packaging covered by the warranties and certifications provided by MURRELEKTRONIK

Total price: $307.35
Unit price: $307.35

Quantity Price
1+$307.35
2+$276.95
3+$264.57
4+$257.57
5+$257.13
*This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Single-phase - Control and Isolation Transformers
1000 VA
Isolation class T 40/B
Other voltages on request.
General data
StandardsEN 61558-1, EN 61558-2-4, EN 62041 category 0
Test isolation voltage4 kV (prim./sec.)
Mounting methodKey-hole mounting
Dimensions H×W×D128×174×160 mm
Fixing centers a×b×c102×135×7 mm
Drill hole Ø7×11 mm
Temperature range-20...+40 °C (storage temperature -40...+80 °C)
Output
Output voltage1× 230, 1× 115, 2× 115 V AC
Output rating1000 VA
Input
Input voltage208, 230, 380, 400, 420, 440, 460, 480, 500, 525, 550 V AC
Input current4.73 A (230 V AC); 2.72 A (400 V AC)
Inrush current66 A (230 V AC); 38 A (400 V AC)
Short-circuit current148 A (230 V AC); 85 A (400 V AC)
Frequency50...60 Hz
Commercial data
country of originCZ
customs tariff number85043180
EAN4048879078726
eClass27031302
Packaging unit1

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOG MURRELEKTRONIK EN.pdf 19 Mbytes
86151 86151 EN_86151.pdf 160 Kbytes 86151 86151 EN_86151.pdf
Download general catalog Download general catalog
