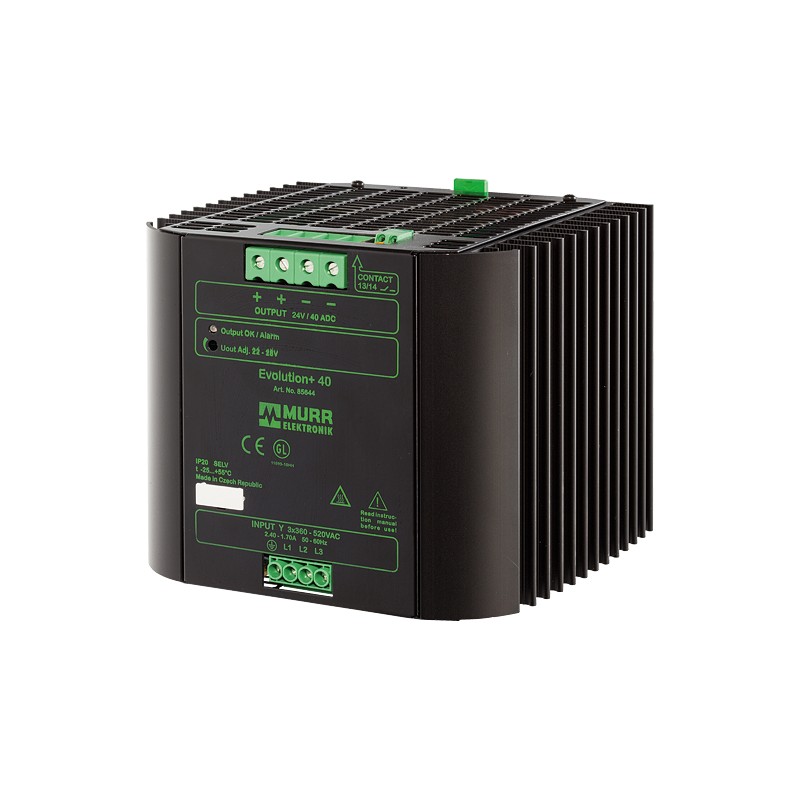

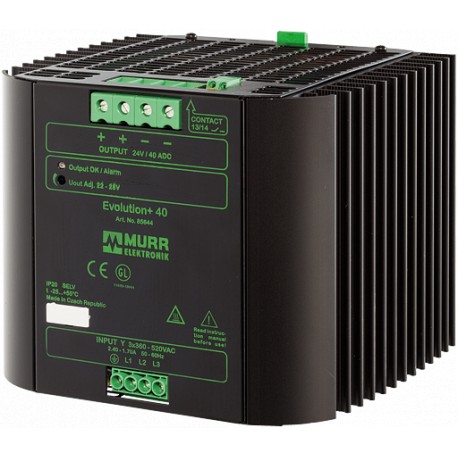

85644 MURRELEKTRONIK EVOLUTION+ power supply 3-phase IN: 360-520VAC OUT: 22-28V/40ADC
85644
MURRELEKTRONIK
EVOLUTION+ power supply 3-phase IN: 360-520VAC OUT: 22-28V/40ADC
EVOLUTION+ POWER SUPPLY 3-PHASE,IN: 360-520VAC OUT: 22-28V/40ADC
Power supplies
Brand new product in its original packaging covered by the warranties and certifications provided by MURRELEKTRONIK
Best sellers
▲More info
▲| Item no.: | Eighty five thousand six hundred forty four |
| Weight: | 3 kg |
OUTPUT: 22...28 V DC
Current: 40 A
| Input voltage | 3 × 324...572 V AC/480...745 V DC |
|---|---|
| Input current | 3 × 2.4 A |
| Frequency | 50...60 Hz |
| Back-up fuse EXT. | max. 3 × 20 A |
| Standards | EN 60950-1, EN 61204-3, EN 55022 B, EN 61000-3-2, SEMI F47 |
|---|---|
| Relative Humidity | 5...95%, condensation inadmissible |
| Protection measures | painted Board |
| Degree of protection | IP20 |
| Efficiency | 91% (3 × 400 V AC); 90% (3 X 520 V AC) |
| Type of connection | Screw terminals |
| Mounting type | DIN-rail mountable TH35 rail (EN 60715) |
| Dimensions H × B × T | 132×164×142 mm |
| Temperature range | -25...+70 °C (Storage Temperature -40...+85 °C) |
| Output voltage | 24 V DC (SELV), ±1%; 22...28 V adjustable |
|---|---|
| Output current | 40 A (+55 °C); 30 A (+70 °C) |
| Power Boost | Iout N × 150% (min. 4 s) |
| Mains failure bridging | min. 19 ms (400 V AC) |
| Residual ripple | max. 50 mVrms |
| Device protection | short-circuit and overload protected |
| Spikes | max. 100 mV p-p |
| LED display | LED (green): OK; LED (red): Overload |
| Parallel Series Operation Operation/ | max. 5 devices/max. 2 devices |
| Message output | electronic Relay max. 30 V DC/0.1 A, group message |
| EAN | Four trillion forty eight billion eight hundred seventy nine million three hundred twenty six thousand nine hundred ninety five |
|---|---|
| eClass | Twenty seven million forty nine thousand two |
| Country of origin | CZ |
| Packing unit | One |
| Customs tariff number | Eighty five million forty four thousand ninety |
