> MURRELEKTRONIK>Power supplies>85371 MURRELEKTRONIK MCS-B power supply 1-phase IN: 95-265VAC OUT: 4-6V/3ADC
Previous Product Next Product

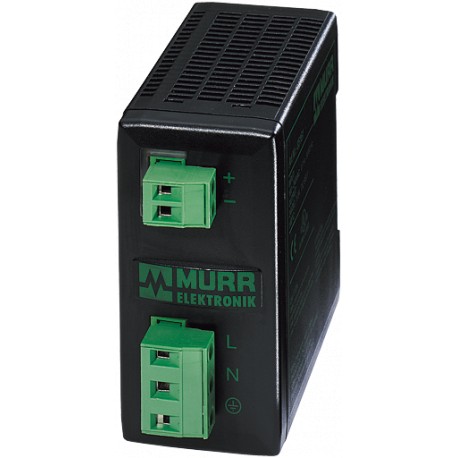

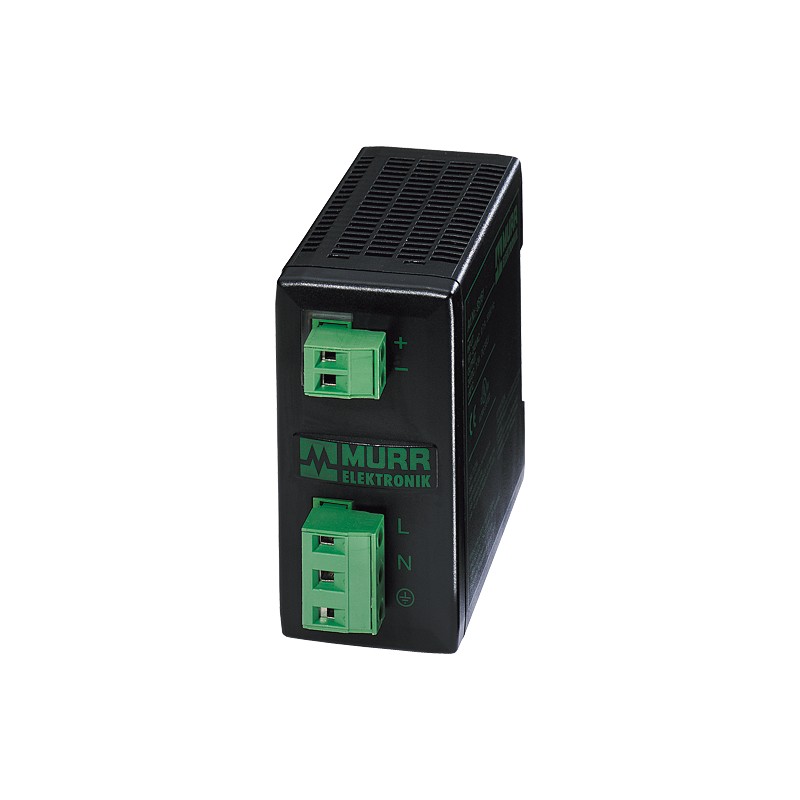

85371 MURRELEKTRONIK MCS-B power supply 1-phase IN: 95-265VAC OUT: 4-6V/3ADC View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

85371 MURRELEKTRONIK MCS-B power supply 1-phase IN: 95-265VAC OUT: 4-6V/3ADC

85371

MURRELEKTRONIK

Available Ship on today

MCS-B power supply 1-phase IN: 95-265VAC OUT: 4-6V/3ADC

MCS-B POWER SUPPLY 1-PHASE, IN: 95-265VAC OUT: 4-6V/3ADC

More details


Power supplies

* Brand new product in its original packaging covered by the warranties and certifications provided by MURRELEKTRONIK

Total price: $163.50
Unit price: $163.50

Quantity Price
1+$163.50
3+$140.91
5+$131.89
7+$127.40
9+$125.35
*This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

More info

▲


IN: 95-265VAC OUT: 4-6V/3ADC
Art.No.: 85371
Weight: 0.16 kg
Ask question
Recommend Product
INPUT: 110...240 V AC
OUTPUT: 5 V DC ±1%
Current: 3 A
Input
Input voltage95...265 V AC; 110...300 V DC
Input current0.3 A (115 V AC); 0.2 A (230 V AC)
Inrush current after 1 msmax. 15 A
Primary fusing externalmax. 10 A
Frequency50...60 Hz
General data
StandardsEN 60950-1, EN 61204-3, EN 55022 B, EN 61000-3-2
Relative humidity5...95%, no condensation
Efficiency80%
Dimensions H × W × D76×38×87.5 mm
Mounting methodDIN-rail mountable TH35 (EN 60715)
Temperature range0...+40 °C, ...+50 °C derating (storage temperature -20...+85 °C)
Output
Output voltage5 V DC (SELV), ±1%; 4.2...6 V adjustable
Output current3 A (+40 °C); 2.5 A (+55 °C)
Mains failure bridging timemin. 30 ms (115 V AC); min. 180 ms (230 V AC)
Ripplemax. 20 mVrms
Spikesmax. 120 mV p-p
Unit protectionShort-circuit and overload protected
LED displayLED (green) for output voltage
Parallel usage/serial usageno/yes (max. 2 units)
Commercial data
country of originCZ
customs tariff number85044090
EAN4048879079938
eClass27049002
Packaging unit1

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOG MURRELEKTRONIK EN.pdf 19 Mbytes
85371 85371 85371_Data_Sheet_1.pdf 100 Kbytes 85371 85371 85371_Data_Sheet_1.pdf
Download general catalog Download general catalog
