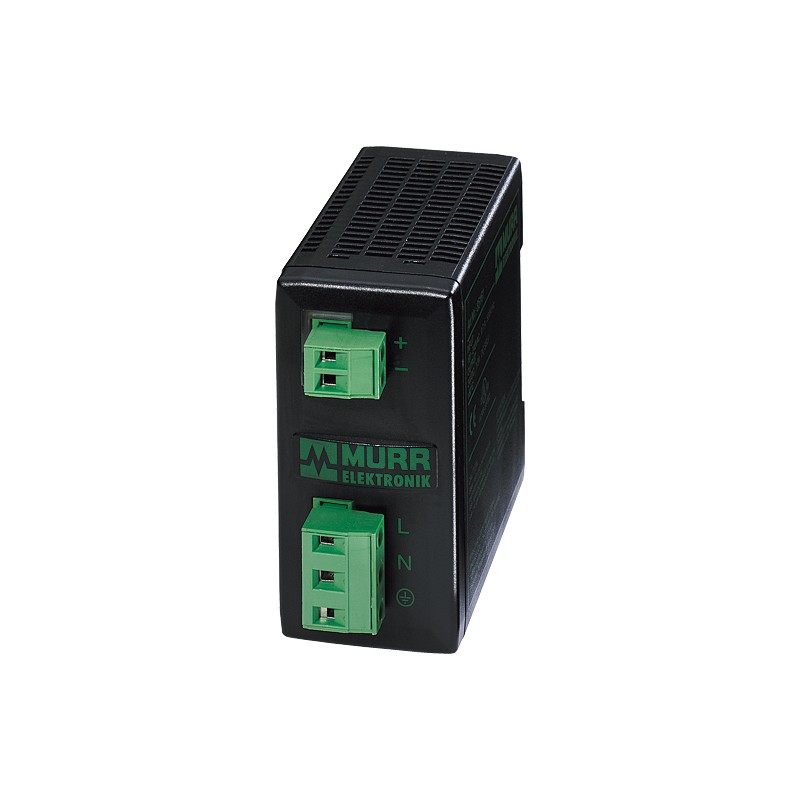

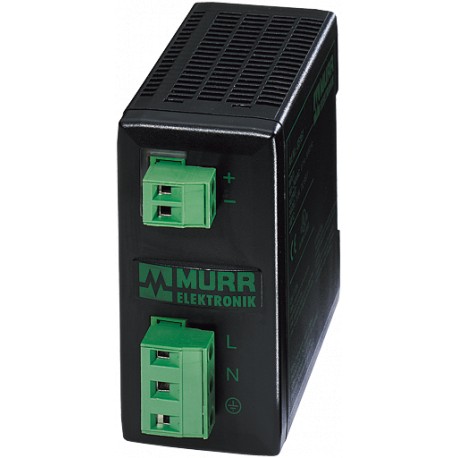

85182 MURRELEKTRONIK MCS-B power supply 1-phase IN: 100-240VAC OUT: 24V/0,6ADC
85182
MURRELEKTRONIK
MCS-B power supply 1-phase IN: 100-240VAC OUT: 24V/0,6ADC
Power supplies
Brand new product in its original packaging covered by the warranties and certifications provided by MURRELEKTRONIK
Best sellers
▲More info
▲| Art.No.: | 85182 |
| Weight: | 0.13 kg |
OUTPUT: 24 V DC +3/-1%
Current: 0.6 A
Varnished board
| Input voltage | 90...265 V AC; 110...300 V DC |
|---|---|
| Input current | 0.3 A (100 V AC); 0.2 A (230 V AC) |
| Inrush current after 1 ms | max. 20 A |
| Primary fusing external | max. 10 A |
| Frequency | 50...60 Hz |
| Standards | EN 60950-1, EN 61204-3, EN 55022 B, EN 61000-3-2 |
|---|---|
| Relative humidity | 5...95%, no condensation |
| Efficiency | 81% (100 V AC); 83% (230 V AC) |
| Dimensions H × W × D | 76×38×87.5 mm |
| Mounting method | DIN-rail mountable TH35 (EN 60715) |
| Temperature range | -25...+40 °C, ...+50 °C derating (storage temperature -25...+85 °C) |
| Output voltage | 24 V DC (SELV), ±1%; 22...28 V adjustable |
|---|---|
| Output current | 0.6 A (+50 °C); 0.5 A (+60 °C) |
| Mains failure bridging time | min. 25 ms (100 V AC); min. 150 ms (230 V AC) |
| Ripple | max. 50 mV eff/rms |
| Spikes | max. 350 mV ss/pp |
| Unit protection | Short-circuit and overload protected |
| LED display | LED (green) for output voltage |
| Parallel usage/serial usage | max. 5 units/max. 2 units |
| country of origin | CZ |
|---|---|
| customs tariff number | 85044090 |
| EAN | 4048879359344 |
| eClass | 27049002 |
| Packaging unit | 1 |
