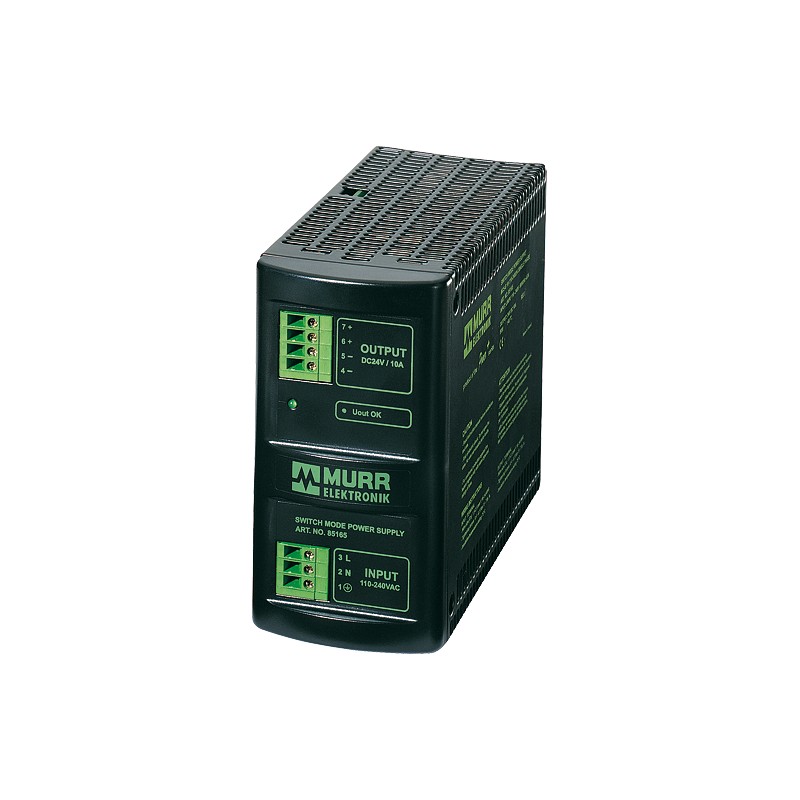

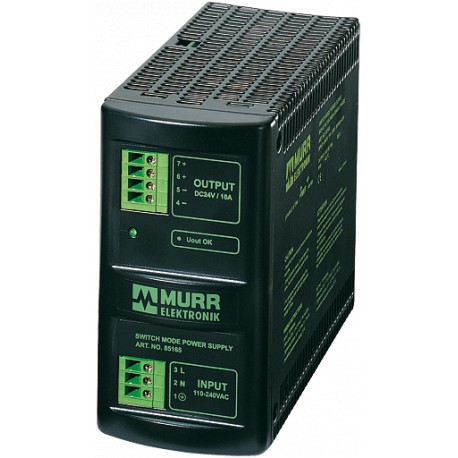

85165 MURRELEKTRONIK MCS-B power supply 1-phase IN: 100-265VAC OUT: 24V/10ADC
85165
MURRELEKTRONIK
MCS-B power supply 1-phase IN: 100-265VAC OUT: 24V/10ADC
MCS-B POWER SUPPLY 1-PHASE,IN: 100-265VAC OUT: 24V/10ADC
Power supplies
Brand new product in its original packaging covered by the warranties and certifications provided by MURRELEKTRONIK
Best sellers
▲More info
▲| Art.No.: | 85165 |
| Weight: | 0.831 kg |
OUTPUT: 24 V DC +3/-1%
Current: 10 A
| Input voltage | 100...265 V AC |
|---|---|
| Input current | 3.4 A (115 V AC); 2.2 A (230 V AC) |
| Inrush current after 1 ms | max. 40 A |
| Primary fusing external | max. 16 A |
| Frequency | 50...60 Hz |
| Standards | EN 60950-1, EN 61204-3, EN 55011 A |
|---|---|
| Relative humidity | 5...95%, no condensation |
| Efficiency | 83% (115 V AC); 85% (230 V AC) |
| Mounting method | DIN-rail mountable TH35 (EN 60715) |
| Dimensions H × W × D | 128×68×165 mm |
| Temperature range | -25...+40 °C, ...+50 °C derating (storage temperature -25...+85 °C) |
| Output voltage | 24 V DC (SELV), ±1%; 22...28 V adjustable |
|---|---|
| Output current | 10 A (+40 °C); 8 A (+55 °C) |
| Mains failure bridging time | min. 15 ms (115 V AC); min. 115 ms (230 V AC) |
| Ripple | max. 20 mV eff/rms |
| Spikes | max. 100 mV ss/pp |
| Unit protection | Short-circuit and overload protected |
| LED display | LED (green) for output voltage |
| Parallel usage/serial usage | max. 5 units/max. 2 units |
| country of origin | CZ |
|---|---|
| customs tariff number | 85044090 |
| EAN | 4048879080354 |
| eClass | 27049002 |
| Packaging unit | 1 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRELEKTRONIK EN.pdf | 36 Mbytes |
|
| 85165 85165 85165_Data_Sheet_1.pdf | 136 Kbytes |
|
