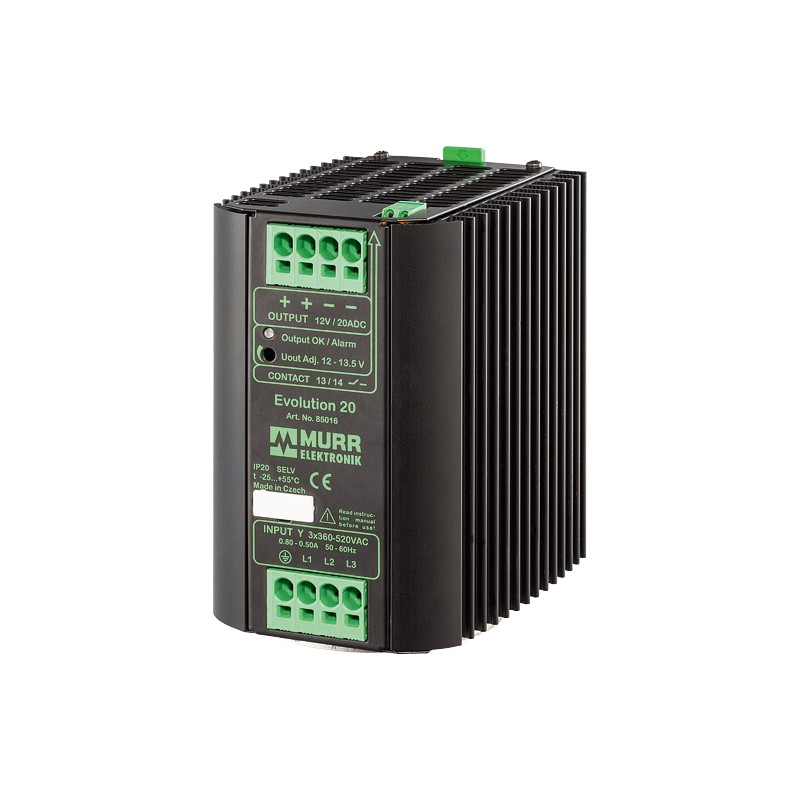

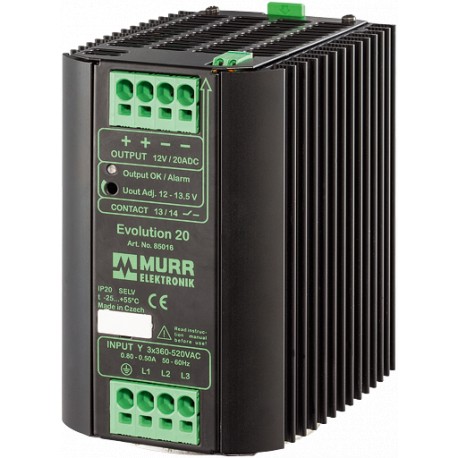

85016 MURRELEKTRONIK EVOLUTION power supply 3-phase IN: 360-520VAC OUT: 12-13,5V/20ADC
85016
MURRELEKTRONIK
EVOLUTION power supply 3-phase IN: 360-520VAC OUT: 12-13,5V/20ADC
EVOLUTION POWER SUPPLY 3-PHASE,IN: 360-520VAC OUT: 12-13,5V/20ADC
Power supplies
Brand new product in its original packaging covered by the warranties and certifications provided by MURRELEKTRONIK
Best sellers
▲More info
▲| Art.No.: | 85016 |
| Weight: | 1.3 kg |
OUTPUT: 12...13.5 V DC
Current: 20 A
| Input voltage | 3 × 324...572 V AC/480...745 V DC |
|---|---|
| Input current | 3 × 0.8 A |
| Inrush current after 1 ms | max. 15 A |
| Frequency | 50...60 Hz |
| Primary fusing external | 3 × 10 A (T) |
| Standards | EN 60950-1, EN 61204-3, EN 55022 B, EN 61000-3-2 |
|---|---|
| Relative humidity | 5...95%, no condensation |
| Protection | IP20 |
| Efficiency | 89% (3 × 400 V AC); 88% (3 × 520 V AC) |
| Connection | Spring clamp terminals |
| Mounting method | DIN-rail mountable TH35 (EN 60715) |
| Dimensions H × W × D | 132×93×114 mm |
| Temperature range | -25...+70 °C (storage temperature -40...+85 °C) |
| Output voltage | 12 V DC (SELV), ±1%; 12...13.5 V adjustable |
|---|---|
| Output current | 20 A (+55 °C); 15.8 A (+70 °C) |
| Power Boost | Iout N × 150% (min. 4 s) |
| Mains failure bridging time | min. 19 ms (400 V AC) |
| Ripple | max. 50 mV eff/rms |
| Unit protection | Short-circuit and overload protected |
| Spikes | max. 100 mV ss/pp |
| LED display | LED (green): OK; LED (red): overload |
| Parallel usage/serial usage | max. 5 units/max. 4 units |
| Alarm output | electronic relay max. 30 V DC/0.1 A, group alarm |
| country of origin | CZ |
|---|---|
| customs tariff number | 85044090 |
| EAN | 4048879313001 |
| eClass | 27049002 |
| Packaging unit | 1 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRELEKTRONIK EN.pdf | 36 Mbytes |
|
| 85016 85016 85016_Data_Sheet_1.pdf | 123 Kbytes |
|
| Download general catalog |
|
